Product description

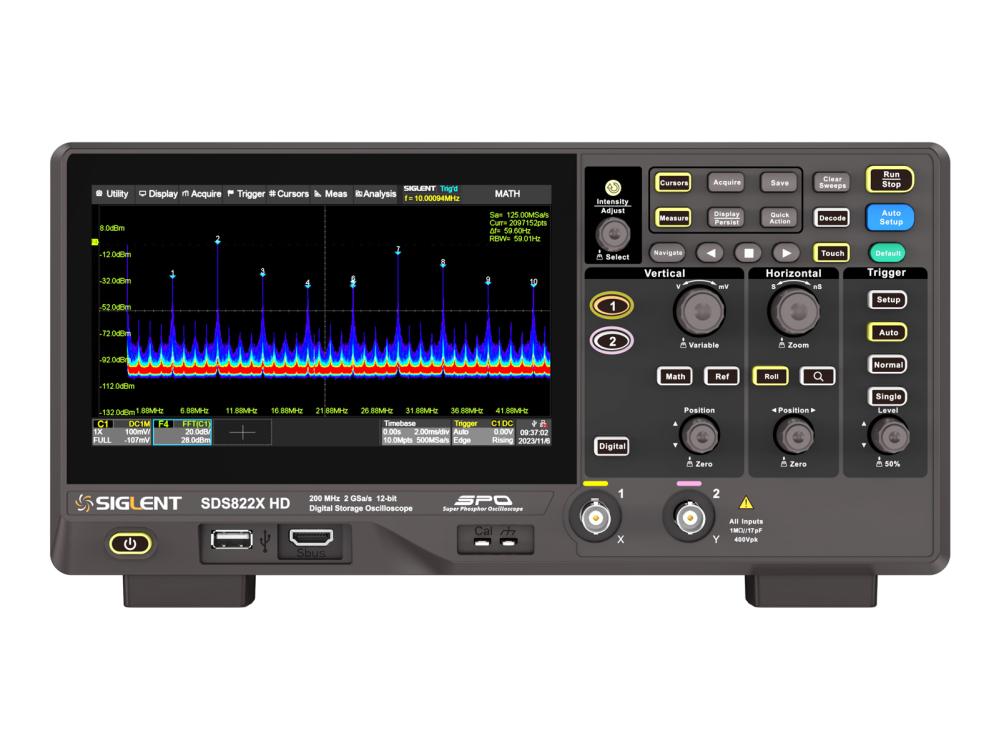

SIGLENT's SDS822X HD high-resolution digital oscilloscopes are based on 2 GSa/s, 12-bit analog-to-digital converters and inputs with excellent noise performance. It has a bandwidth of 200 MHz and a maximum record length of 100 Mpt, displaying 2 analog channels + 16 digital channels for mixed signal analysis.
The SDS822X HD series utilizes Siglent's SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in sequence mode), 256-level intensity grading display function, and a color temperature display mode. It also features an innovative digital triggering system with high sensitivity and low jitter, supporting multiple powerful triggering modes including serial bus triggering. Tools such as historical waveform recording, search and navigation functions, mask testing, Bode plots, power analysis, and extended waveform recording capabilities are available. An extensive range of measurement and mathematical functions, options for a 25 MHz arbitrary waveform generator, and serial decoding are also included in the SDS822X HD series.
The 7-inch capacitive touchscreen supports multi-touch gestures, enhancing user efficiency with a user-friendly UI design. It also supports mouse control and remote web control over LAN.
Key Features:
12-bit high resolution
12-bit analog-to-digital converters with a sampling rate of up to 2 GSa/s
Inputs with 70 µVrms noise level @ 200 MHz bandwidth
2 analog channels, up to 200 MHz bandwidth
SPO technology
Waveform capture rate up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
Supports 256-level intensity grading and color temperature display modes
Up to 100 Mpt record length
Digital triggering system
Intelligent triggering: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported), Qualified, Nth edge, Delay, Setup/Hold time.
Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN
Segmented acquisition (sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to user-defined trigger conditions, with minimal dead time between segments to capture qualifying events
Historical waveform recording function, with a maximum recorded waveform length of 80,000 frames
Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, gating measurement, and measurements on Math, History, and Reference
4 Math traces (2 Mpt FFT, addition, subtraction, multiplication, division, integration, differentiation, square root, etc.), supports formula editor
Abundant data analysis functions such as search, navigate, counter, Bode plot, and power analysis
High-speed hardware-based mask testing function, with mask editor tool for creating user-defined masks
16 digital channels (optional)
25 MHz arbitrary waveform generator (optional)
7-inch TFT-LCD display with 1024 * 600 resolution; Capacitive touchscreen supports multi-touch gestures
Interfaces include: USB hosts, USB device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger out
Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard. Supports NTP.
