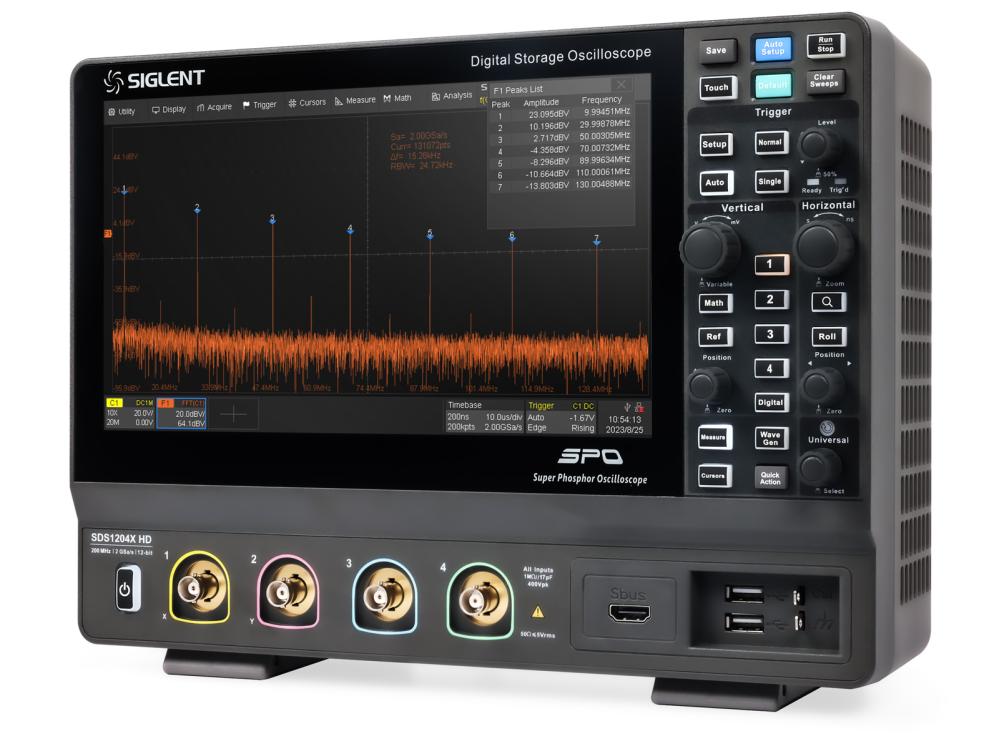

Oscilloscope 200MHz 4-ch 12-bit Siglent SDS1204X HD

Art no: 41021530 - Siglent
Shop this product, Oscilloscope 200MHz 4-ch 12-bit Siglent SDS1204X HD
price 18 190 SEK
Including 25% VAT
Out of stock
Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

SDS1204X HD has a bandwidth of 200 MHz and 4 channels.

The SDS1204X HD series utilizes Siglent's SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in sequence mode), 256-level intensity grading, and color temperature display mode. It also employs an innovative digital triggering system with high sensitivity and low jitter. The triggering system supports multiple powerful triggering modes including serial bus triggering. Tools such as historical waveform recording, search and navigation functions, mask testing, Bode plots, and power analysis enable extended waveform capture, storage, and analysis. An impressive range of measurement and mathematical functions, options for a 25 MHz arbitrary waveform generator, and serial decoding are also features of the SDS1204X HD.

The large 10.1-inch capacitive touchscreen supports multi-touch gestures, greatly enhancing user efficiency thanks to its user-friendly UI design. It also supports mouse control and remote web control over LAN.

SIGLENT's SDS1000X HD series of high-resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit analog-to-digital converters and front ends with excellent noise performance. They are available in bandwidths of 200 MHz and 100 MHz, have a maximum record length of 100 Mpt, and display 2/4 analog channels + 16 digital channels for mixed signal analysis.

Technical data

Technical data/attributes for this product
Attribute Value
Vertical resolution
12
Bandwidth
200 MHz
Channels
4
Level
Semi-pro
Touch screen
Ja
Web server
Ja
  • SKU:

    41021530
  • MPN:

    SDS1204X HD
