Product description

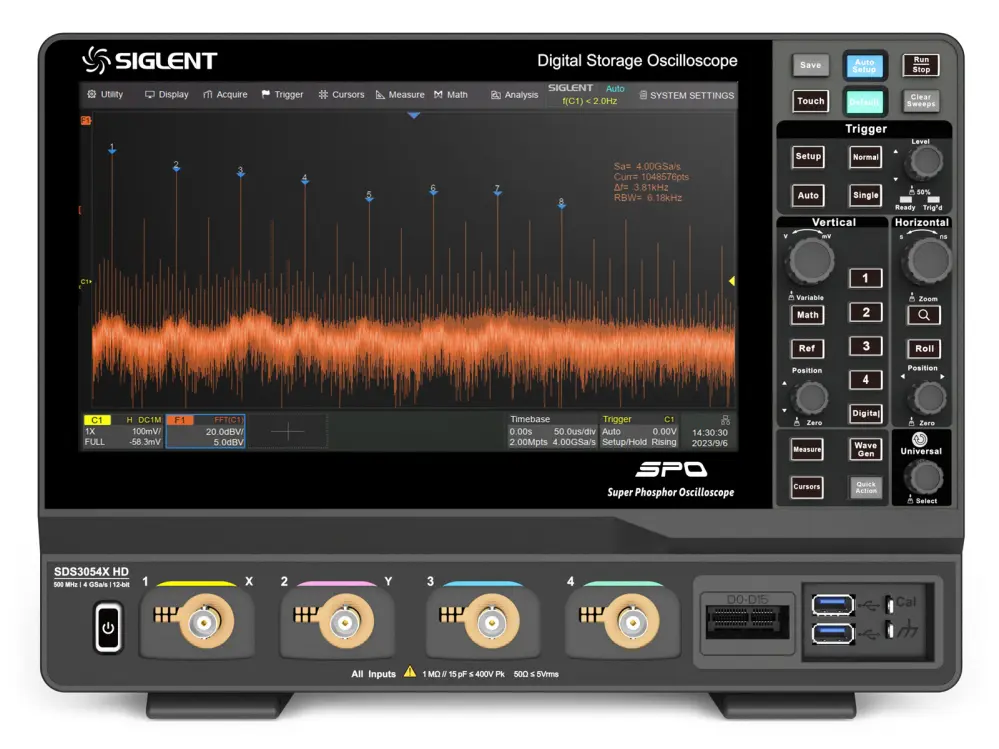

SDS3054X HD has a bandwidth of 350 MHz, 4 channels.

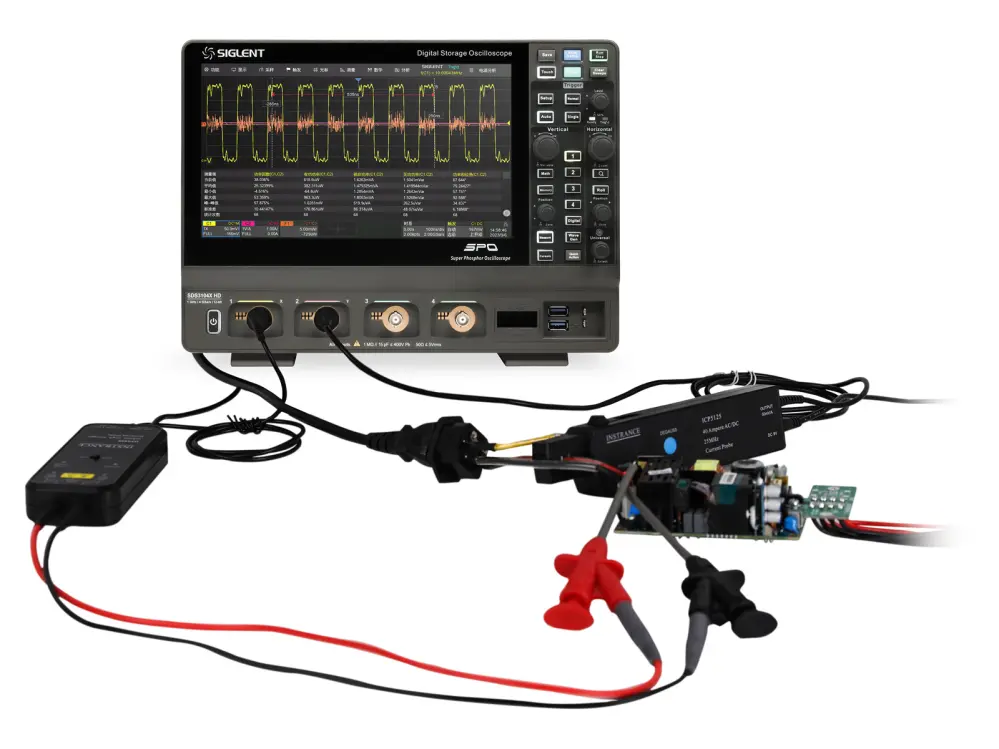

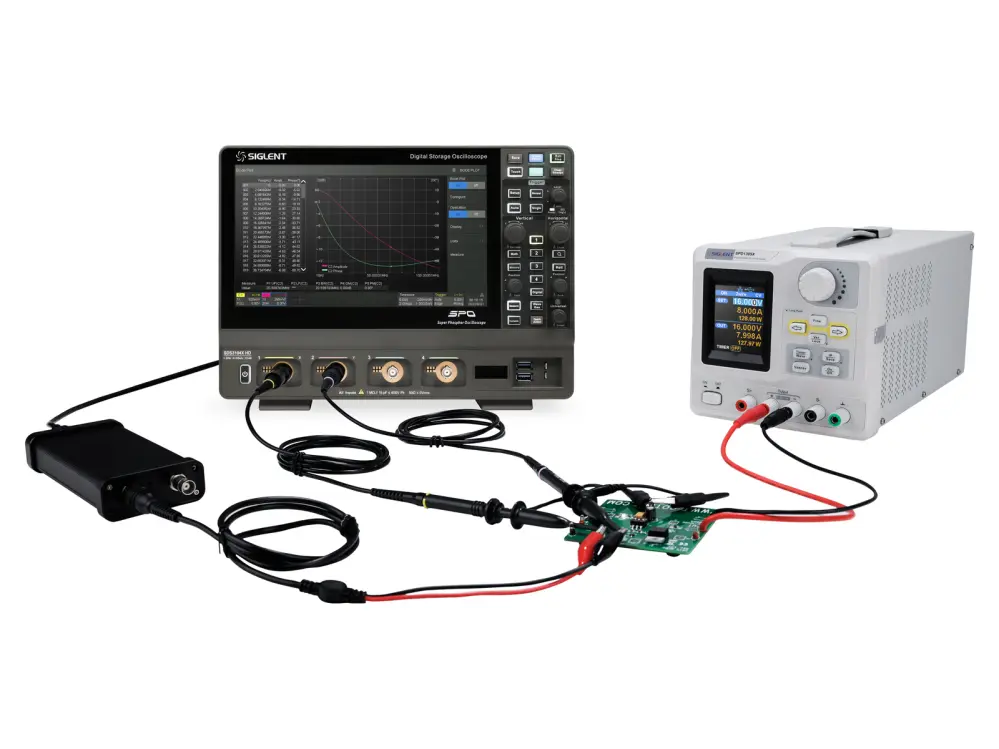

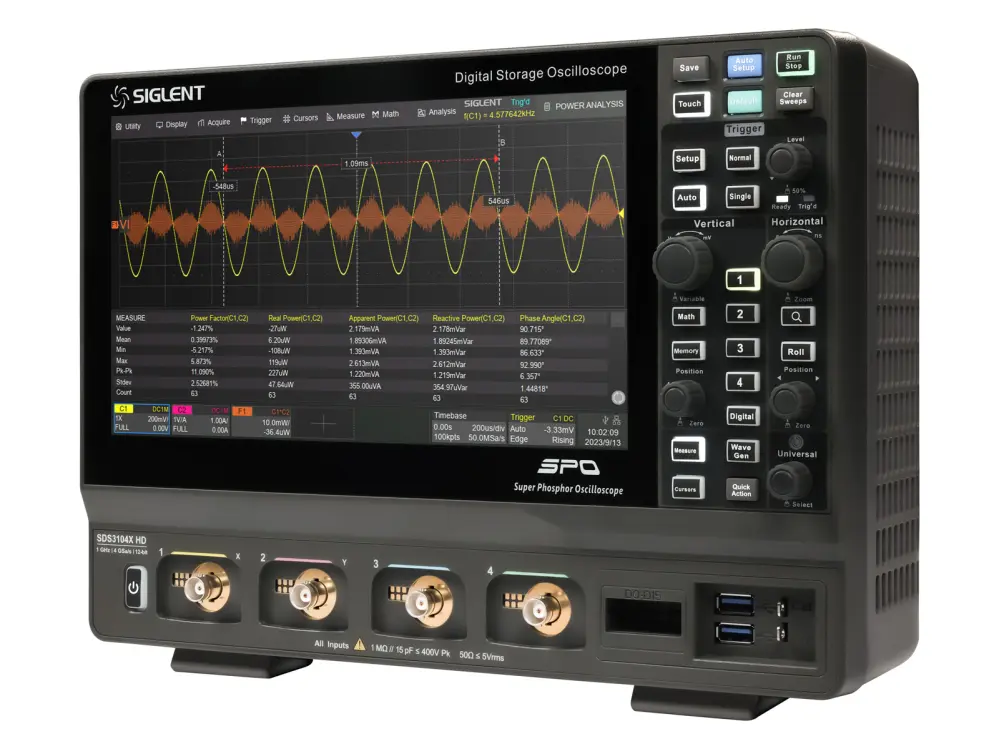

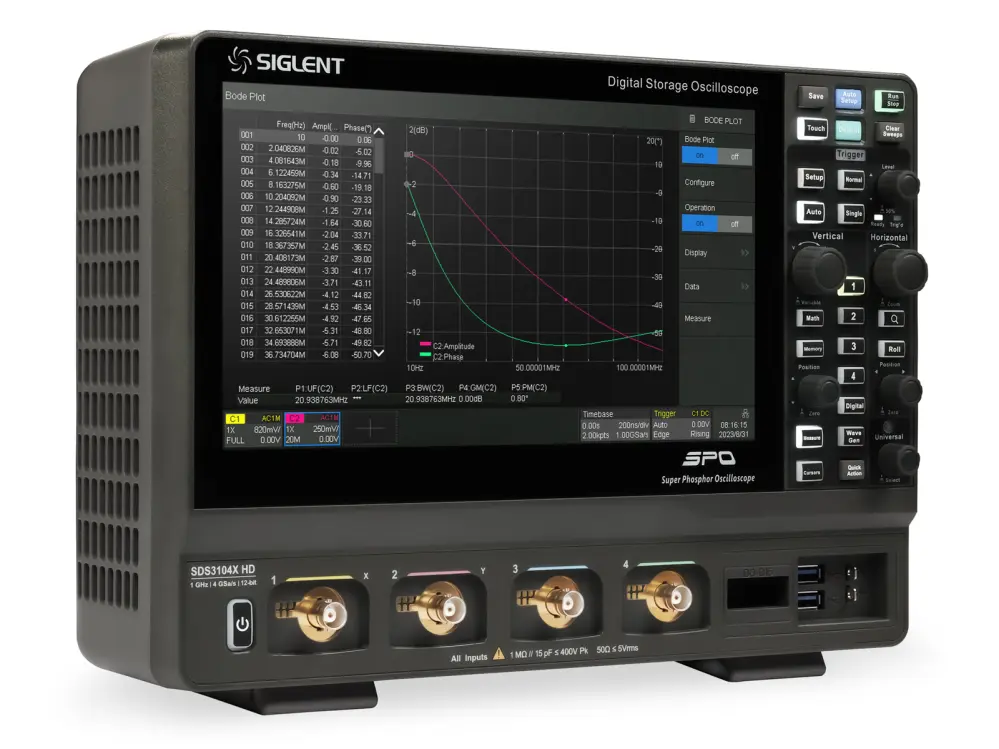

The SDS3054X HD series utilizes Siglent's SPO technology with a maximum waveform capture rate of up to 200,000 wfm/s, 256-level intensity grading, and color temperature display. It also employs an innovative digital triggering system with high sensitivity and low jitter. The triggering system supports multiple powerful triggering modes including serial bus triggering. Tools such as historical waveform recording, search and navigation functions, mask testing, Bode plots, and power analysis enable extended waveform capture, storage, and analysis. An impressive range of measurement and mathematical functions, options for a 50 MHz arbitrary waveform generator, and serial decoding are also features of the SDS3054X HD.

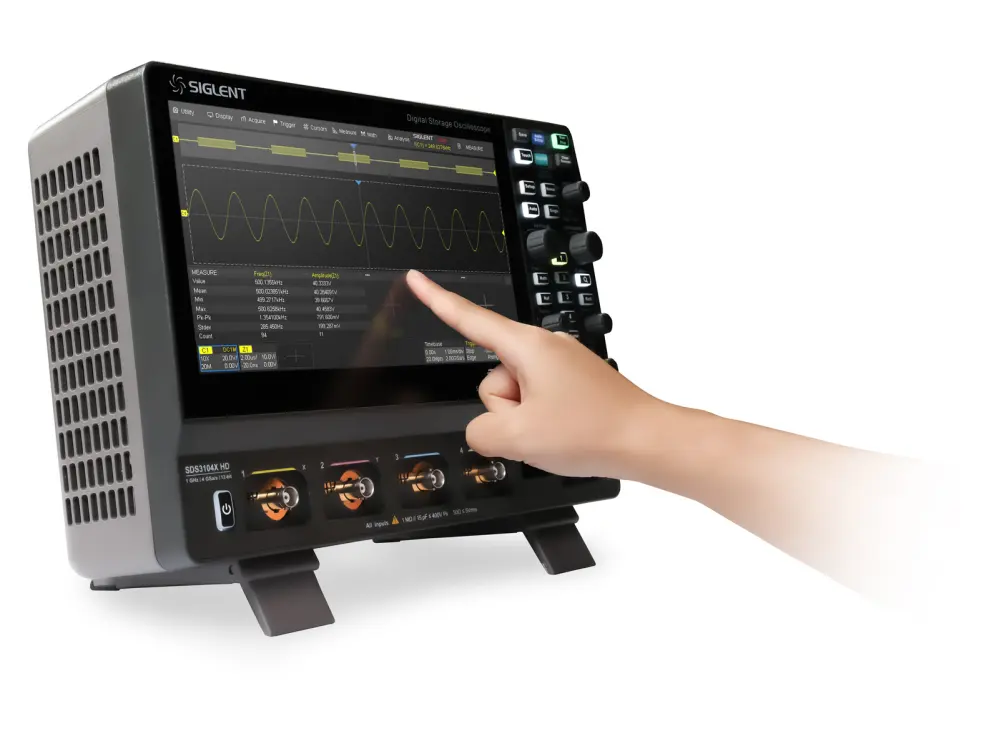

The large 10.1-inch capacitive touchscreen supports multi-touch gestures, greatly enhancing user efficiency thanks to its user-friendly UI design. It also supports mouse control and remote web control over LAN.

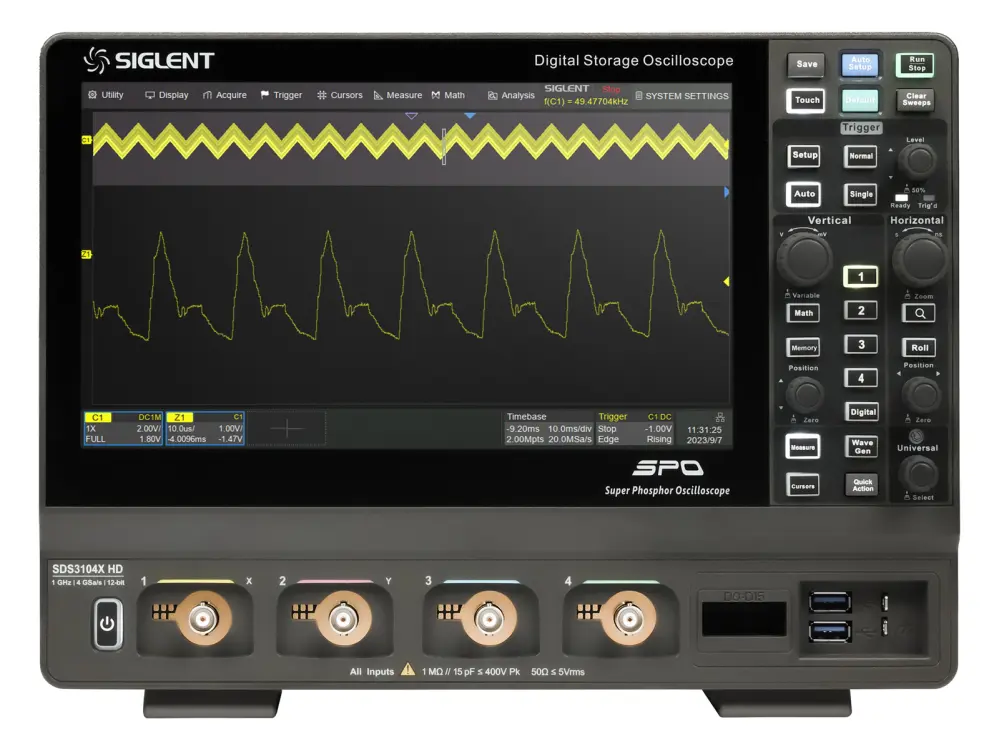

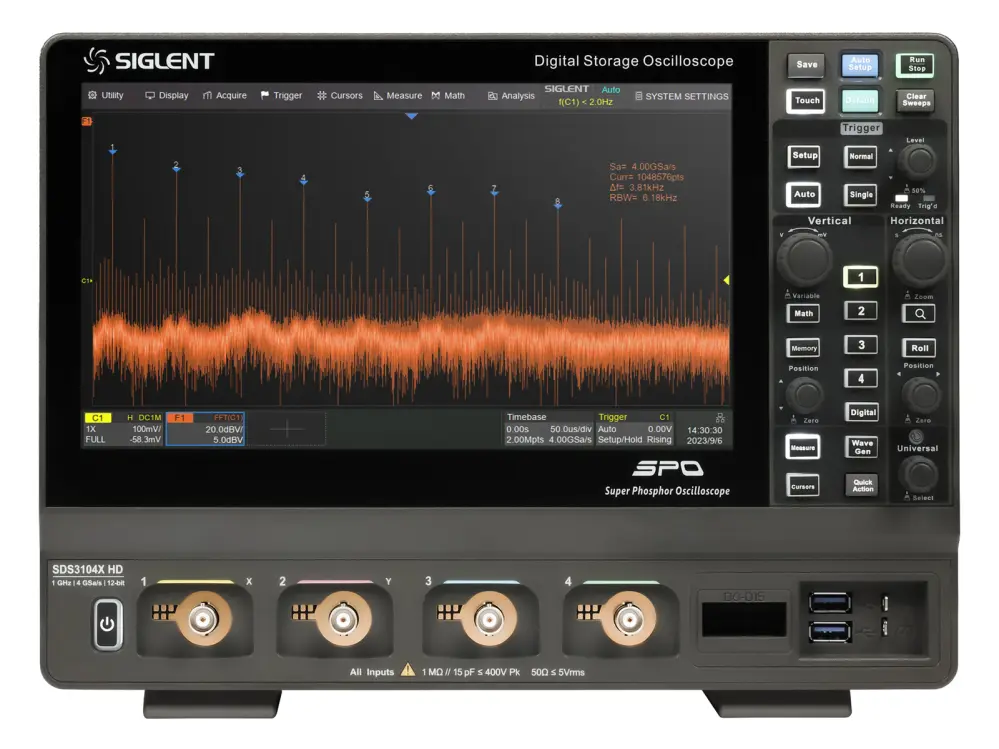

SIGLENT's SDS3000X HD series of digital storage oscilloscopes are available in bandwidths of 1 GHz, 500 MHz, and 350 MHz, with 12-bit ADCs with sampling rates up to 4 GSa/s, maximum record lengths of 400 Mpt/channel, and display up to 4 analog channels + 16 digital channels for high-performance mixed signal analysis.
