Product description

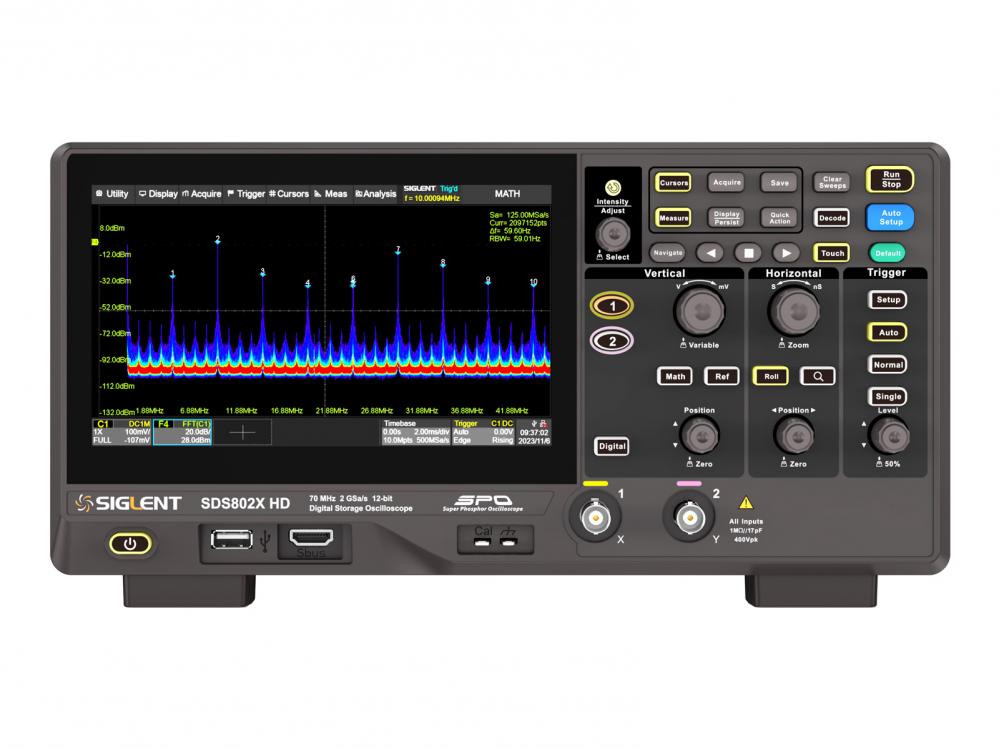

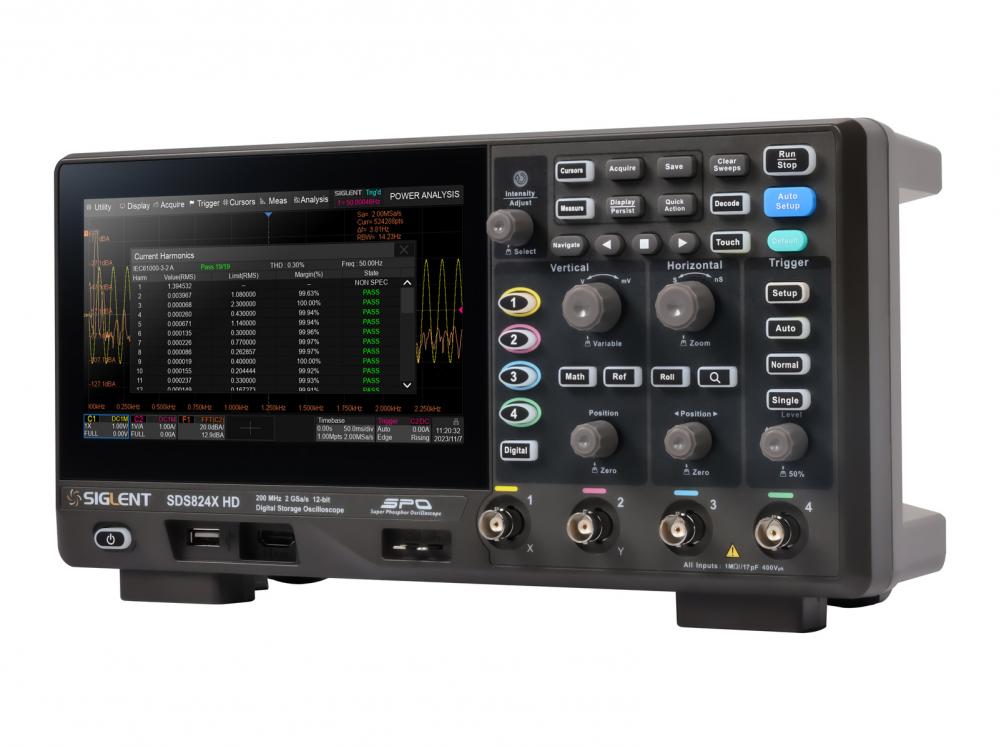

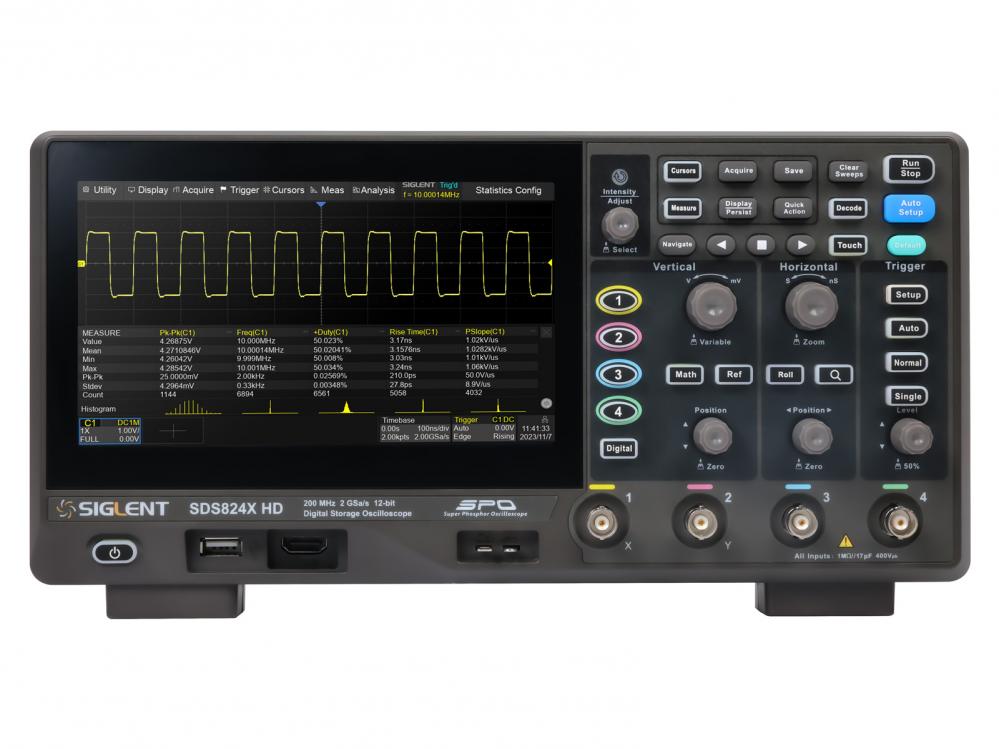

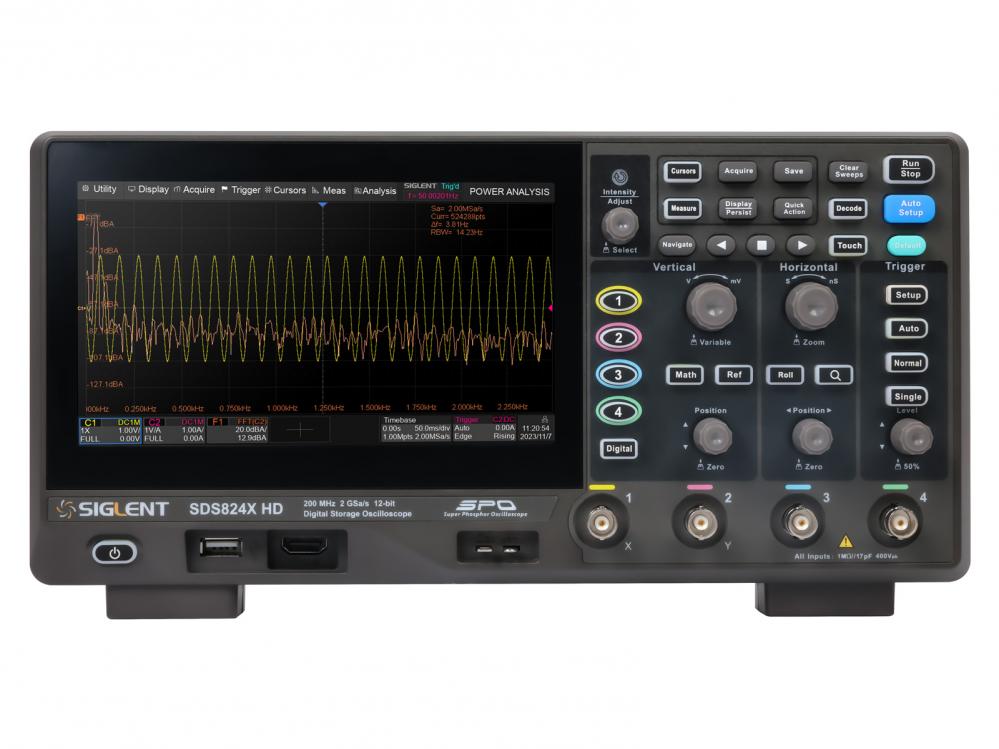

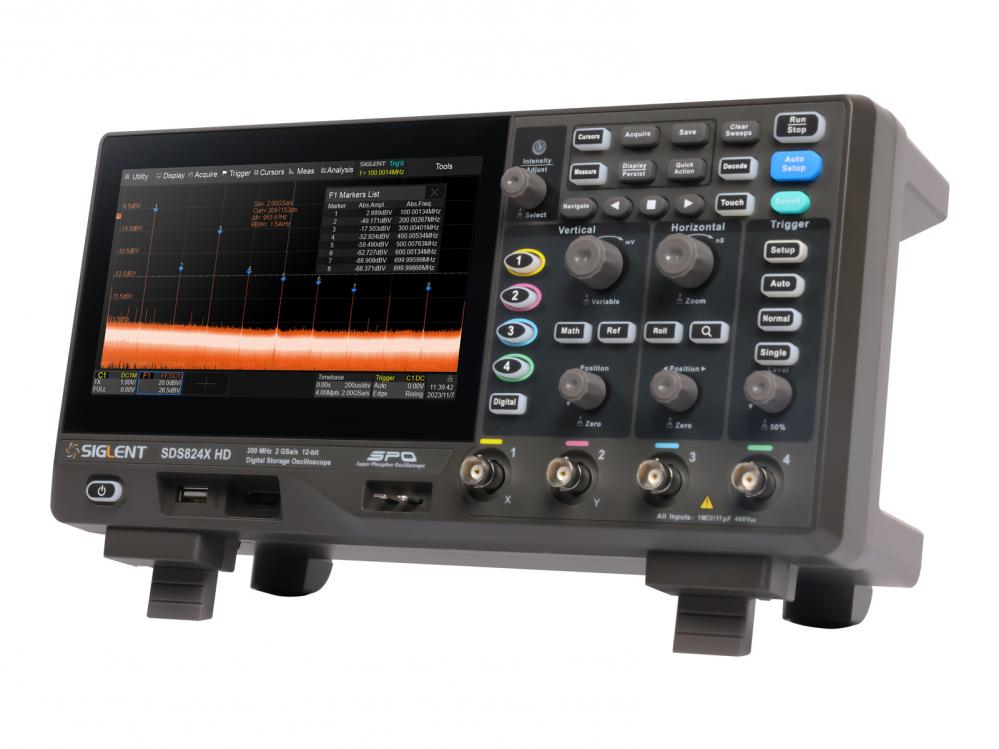

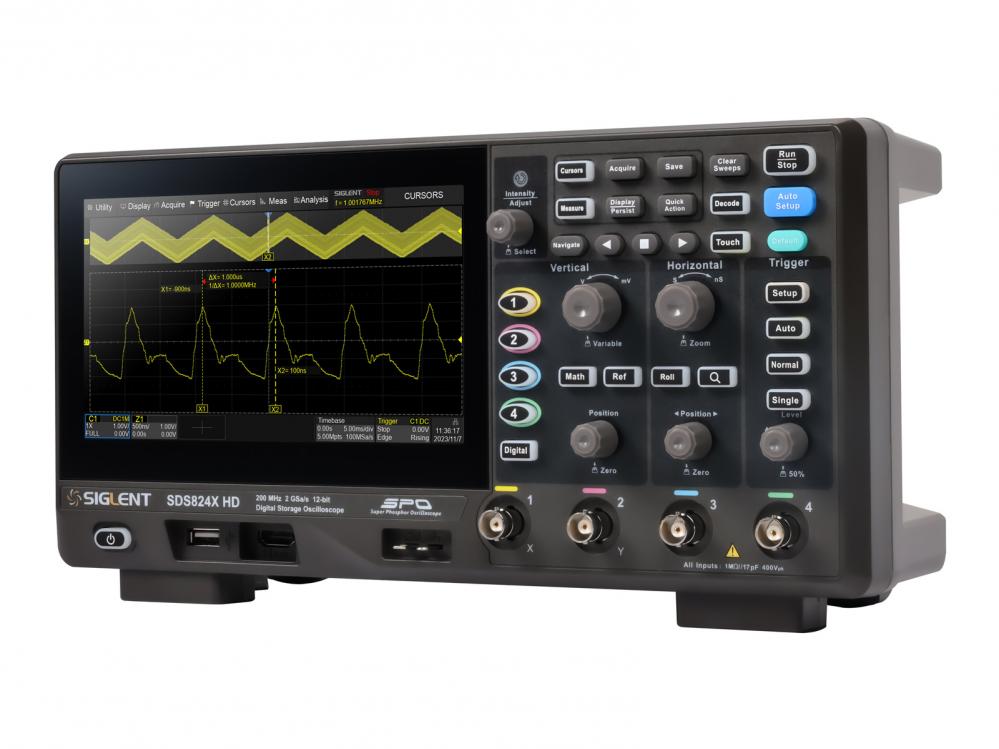

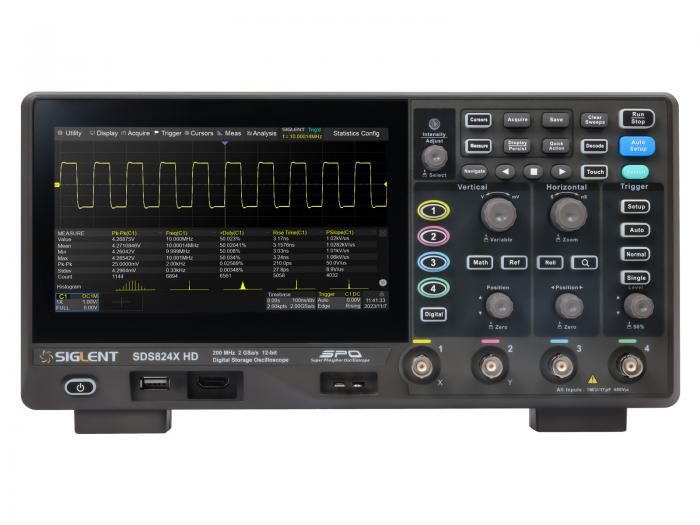

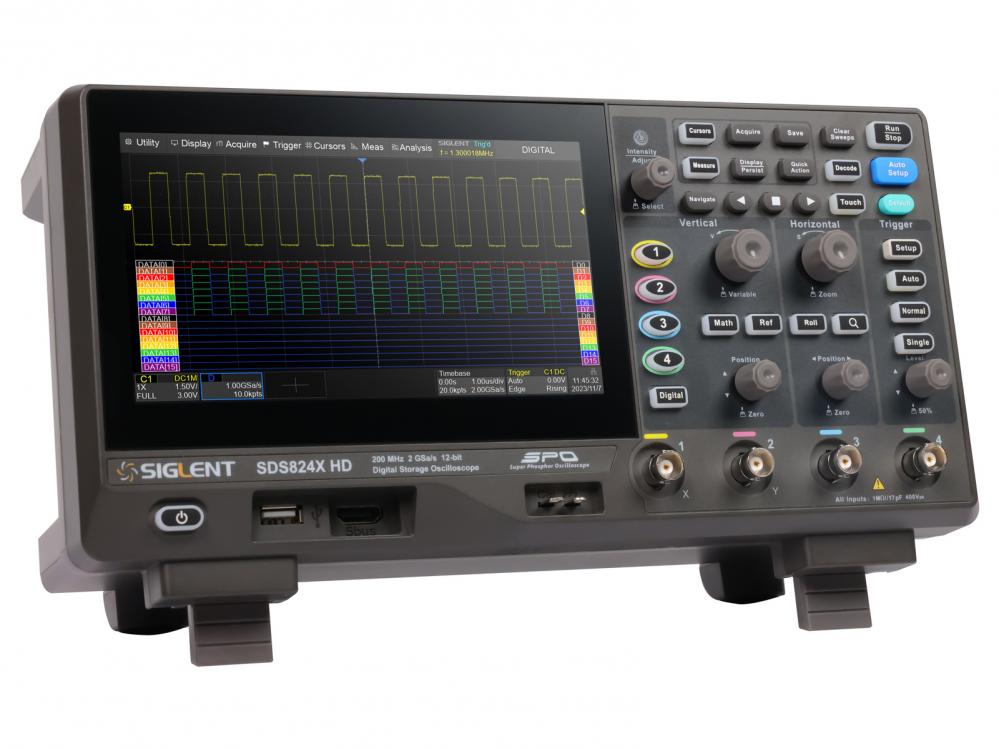

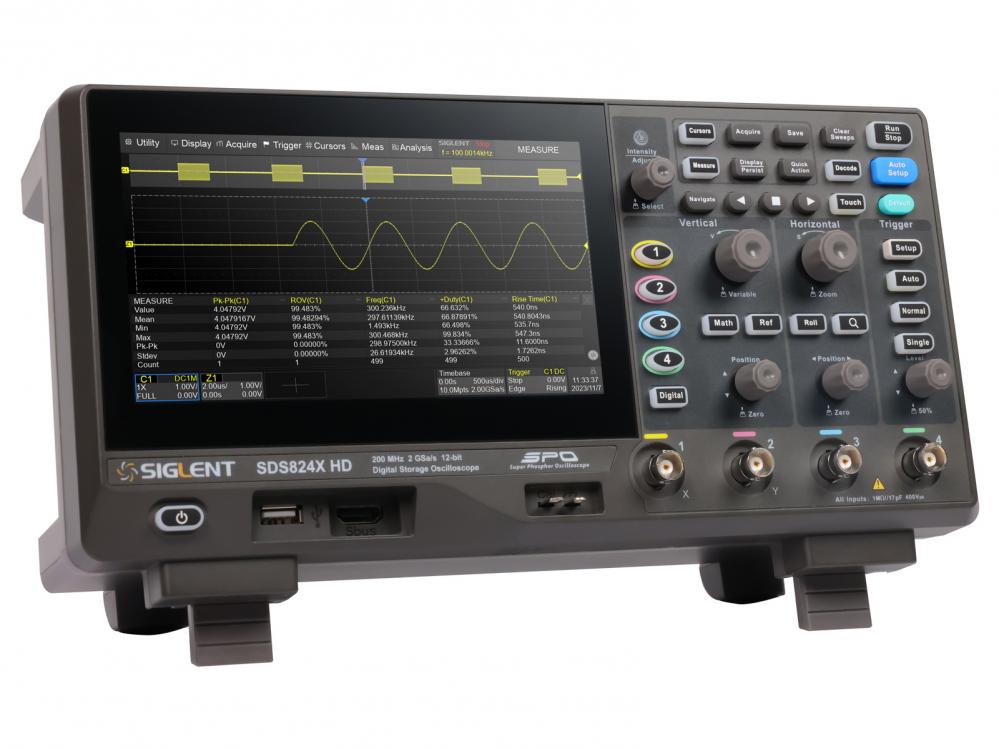

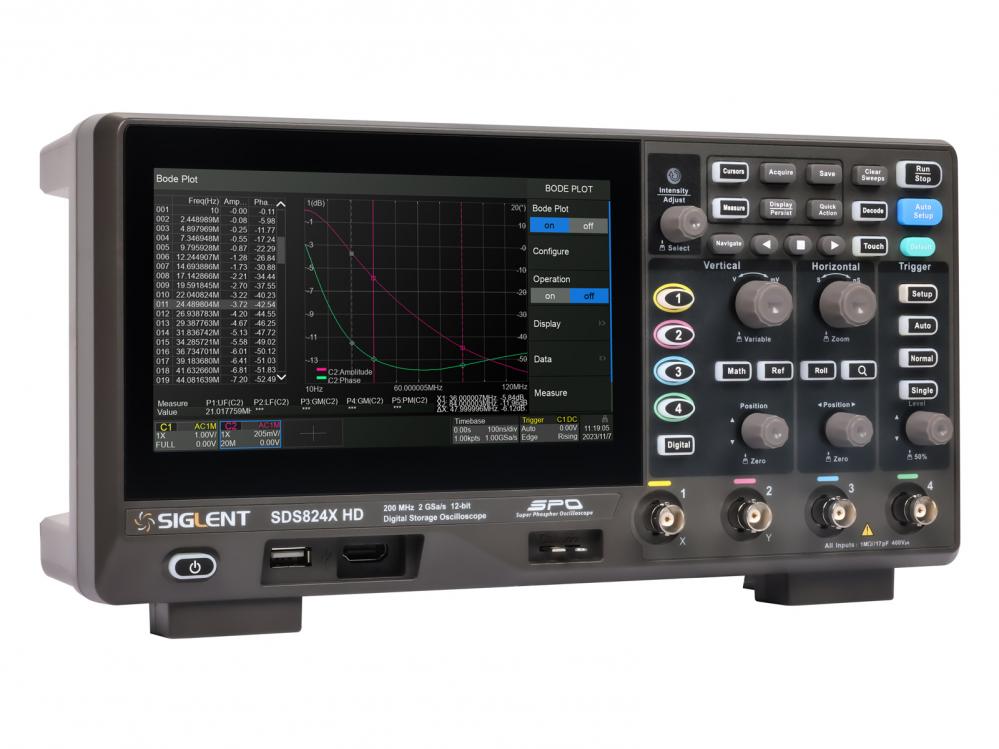

SIGLENT’s new SDS802X HD series high resolution digital storage oscilloscope is based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. With a 70MHz bandwidth, and a maximum record length of 50 Mpts, and has 2 analog channels + 16 digital channels mixed signal analysis ability.

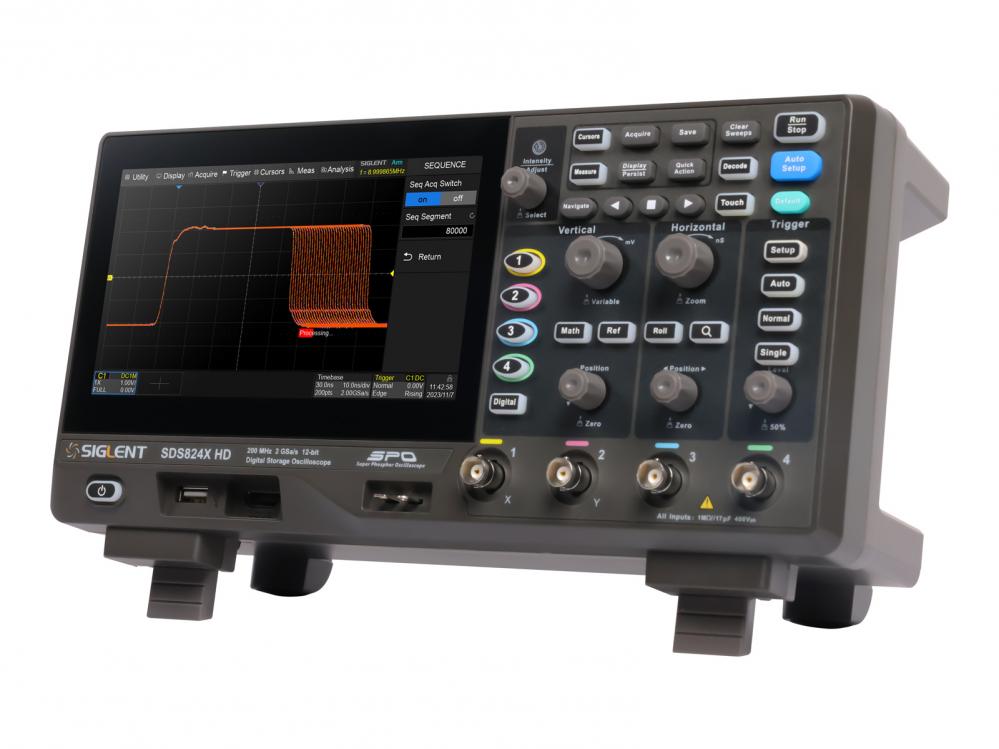

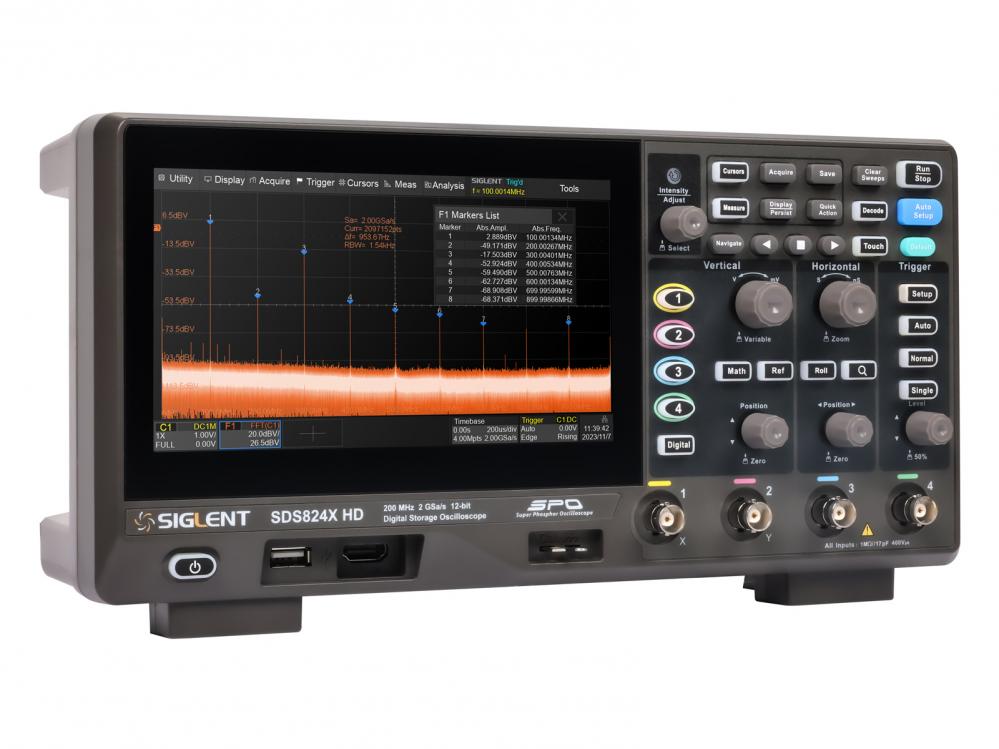

The Siglent SDS802X HD Oscilloscope employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS802X HD. The 7’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.
Specifications:
- Number of channels: 2
- Vertical resolution: 12 bit
- Sampling rate: 2 GSa/s
- Memory depth (total): 50 Mpts
- Waveform speed: 80 000 (500 000) wfms/s
- Display: 7” touch screen (1024x600)
- Built-in web server: Yes
