Product description

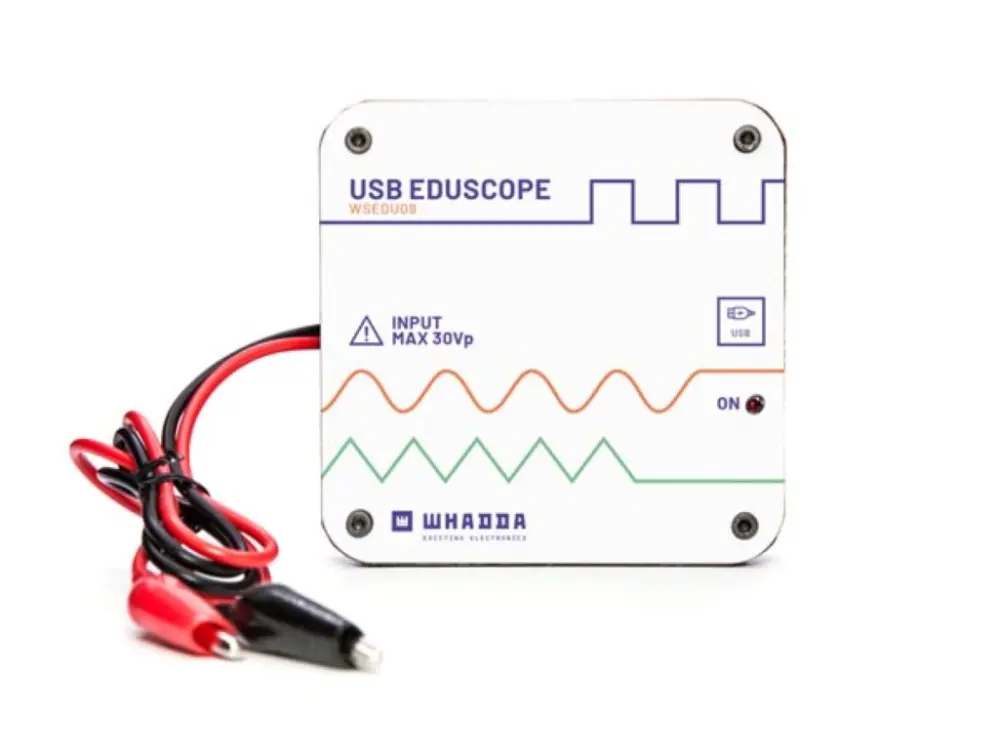

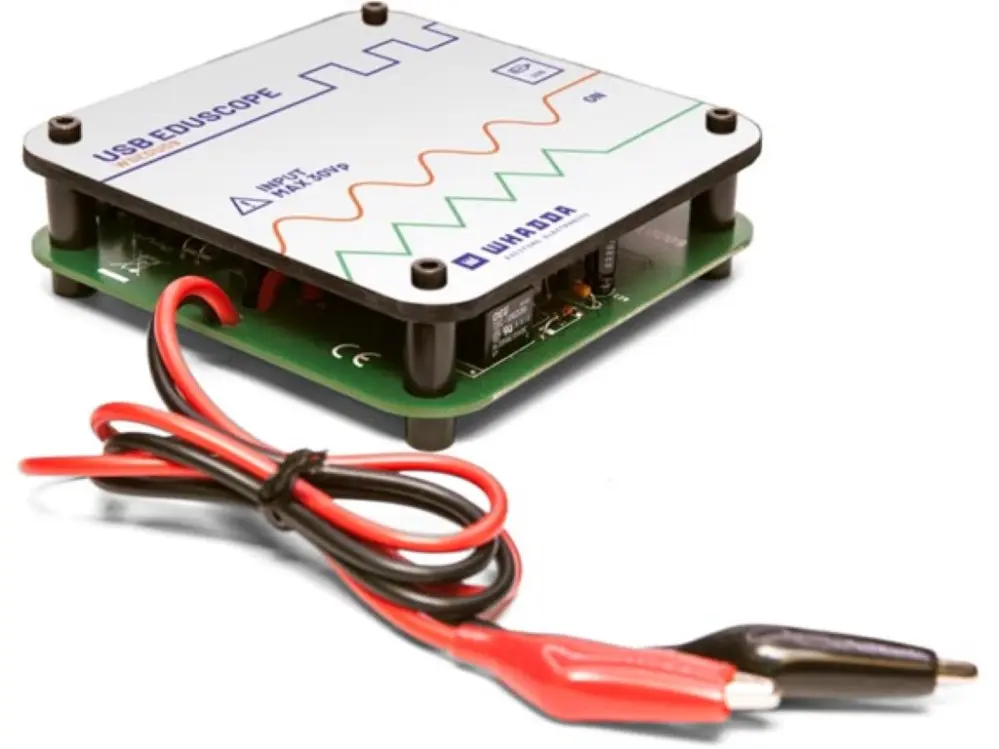

Build your own oscilloscope and use your PC to display your measurements.

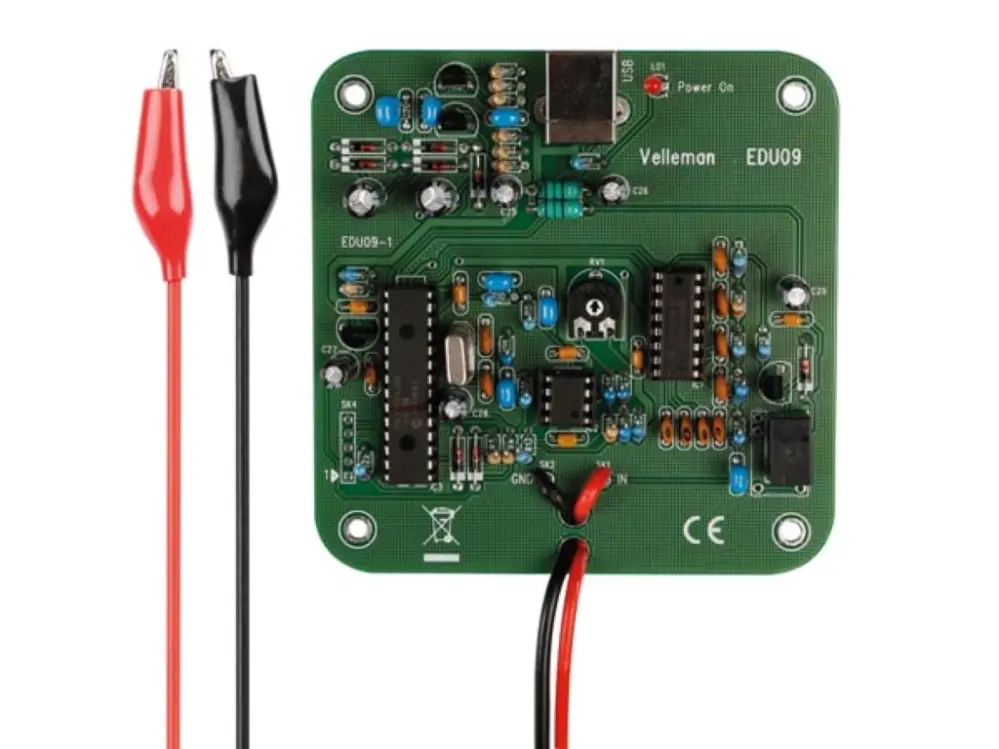

This small and easy to build kit has all the features of a fully functional digital oscilloscope.

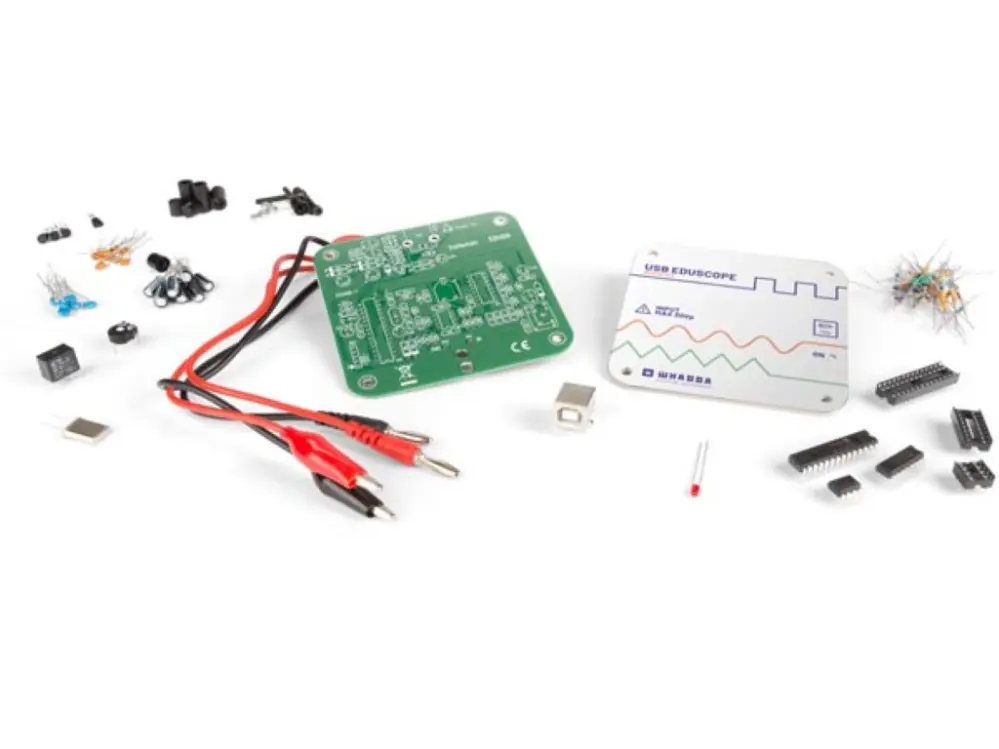

Kit comes complete with detailed instructions and test leads.

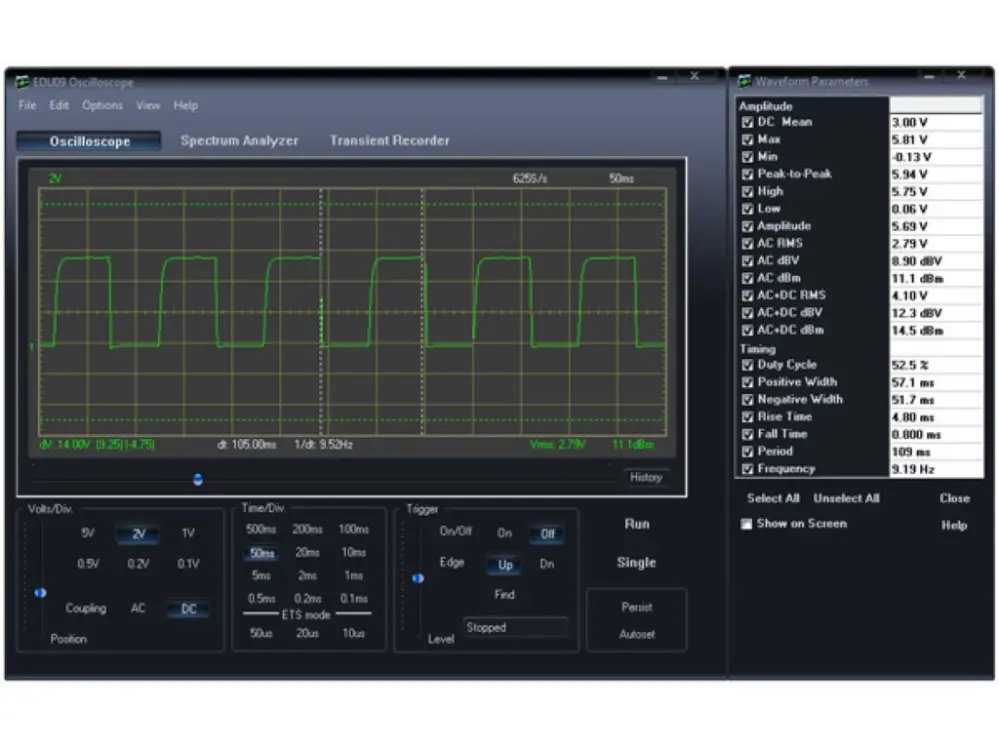

oscilloscope:
bandwidth: DC to 200 kHz ± 3 dB
input impedance: 100 kohm / 20 pF
maximum input voltage: 30 V (AC + DC)
time base: 10 µs to 500 ms per division
input range: 100 mV to 5 V/division
input sensitivity: 3 mV display resolution
readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency...
record length: 1k samples
sampling frequency: 62.5 Hz to 1.5 MHz
sample history function
auto set-up function
pre-trigger function : on 0.1 ms/div .. 500 ms/div ranges
persistence options: Colour graded, Variable and Infinite
spectrum analyser:
frequency range: 0 .. 150 Hz to 75 kHz
operating principle: FFT (Fast Fourier Transform)
FFT resolution: 512 lines

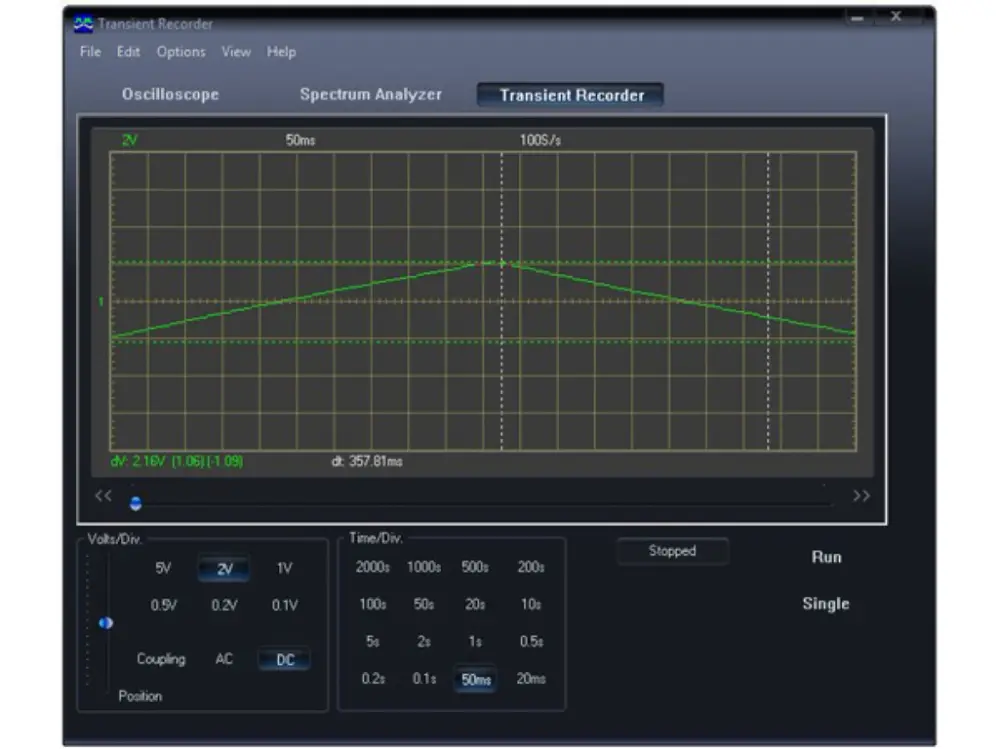

transient recorder:
timescale: 20 ms/div to 2000 s/div
max. recording time: 9.4 h/screen
automatic storage of data
record and display of screens
automatic recording for more than 1 year
max. number of samples: 100/s
min. number of samples: 1 sample/20 s
general information:
markers for: amplitude/voltage and frequency/time
expert or basic mode selection in software
input coupling: DC and AC
8 bit resolution
storage of display and data
power supply through USB: +/- 200 mA
uses Microsoft® human interface device (HID) driver, no external driver required
dimensions: 94 x 94 mm / 3.7 x 3.7"
