Product description

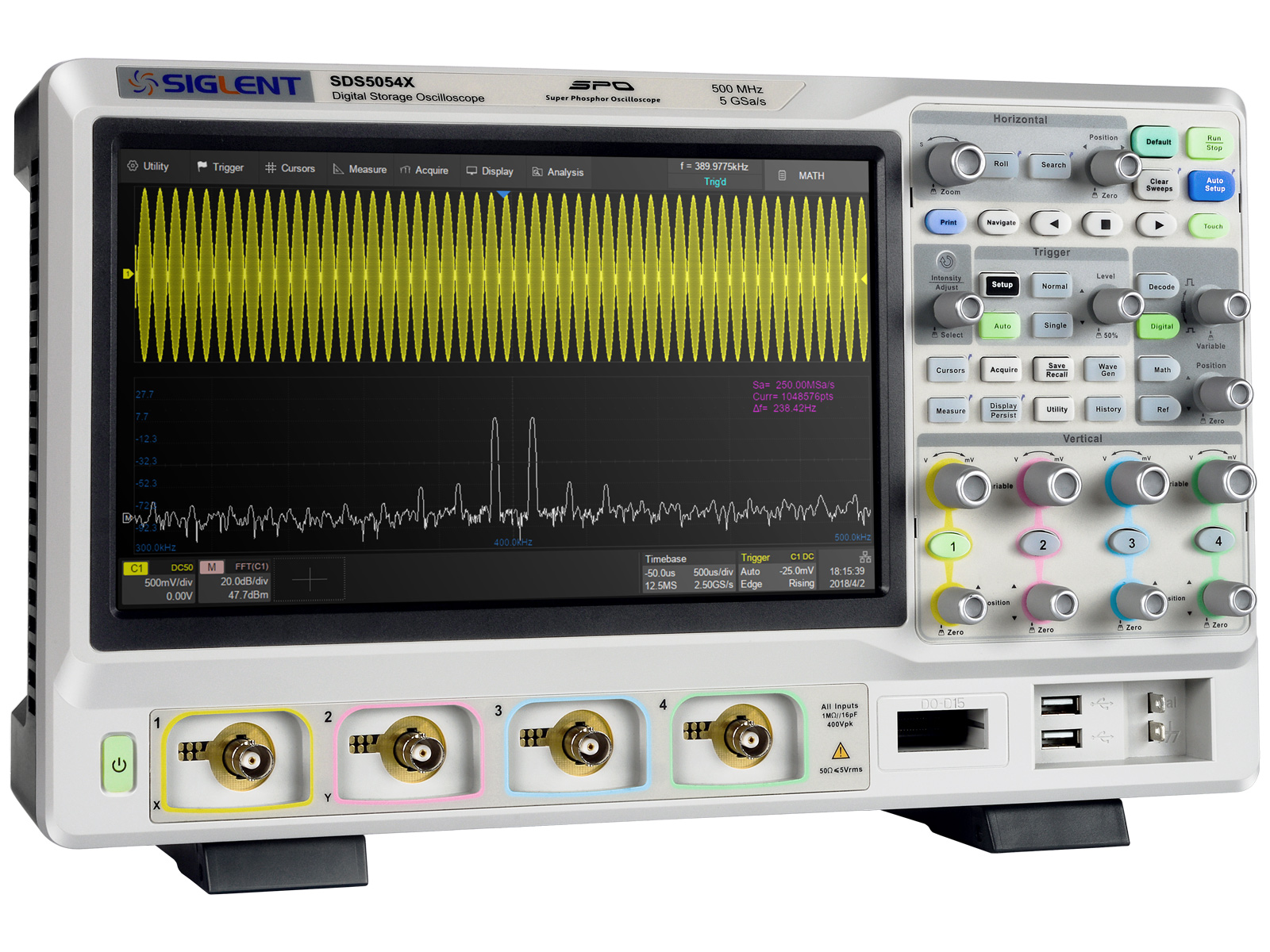

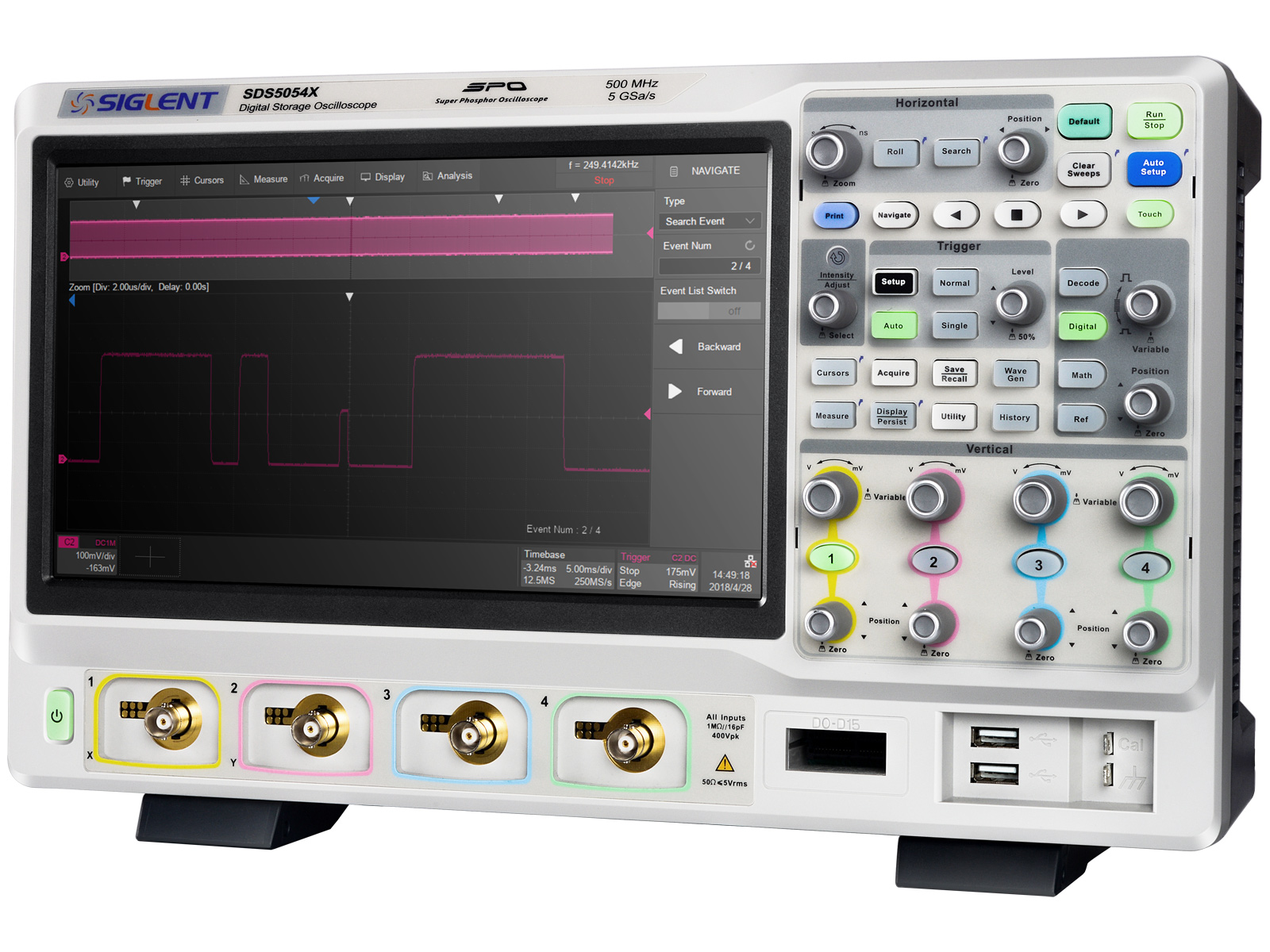

Digital oscilloscope with up to 5GSa/s sampling rate
Bandwidth: 1000 MHz
Number of channels: 4
- 10.1" 1024x600 color display - capacitive touch
- SPO (Super Phosphor technology)
- Captures up to 110,000 waveforms per second in normal mode, and 480,000 wfm/s in sequence mode.
- Intensity grading in 256 levels
- Recording depth 250 Mpts
- Digital trigger system
- Intelligent trigger, Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified and Video (HDTV supported). Trigger zone facilitates advanced trigger conditions.

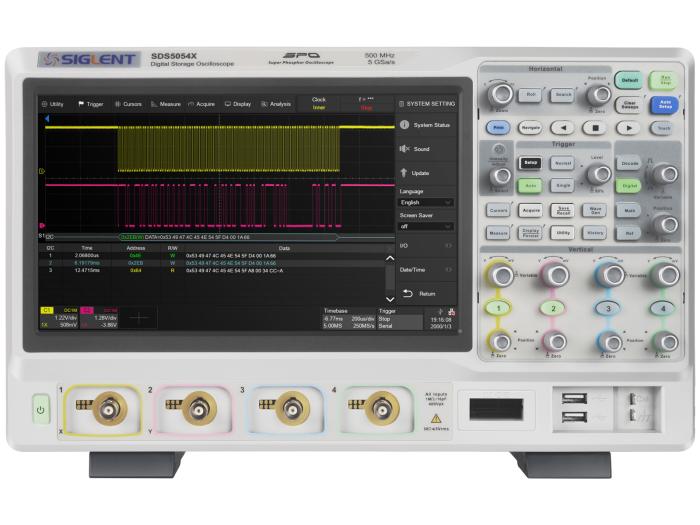

- Triggering and decoding of popular serial protocols (I2C, SPI, UART, CAN, LIN)
- Low background noise, support for 0.5mV/div to 10V/div
- Sequence mode for segmented recording
- Waveform history, up to 100,000 frames
- Automatic measurement of 39 parameters, with histogram for statistics
- Calculation functions (2Mpts FFT, addition, subtraction, multiplication, division, integral, derivative, square root)
- Digital voltmeter
- Waveform histogram
- Built-in web server

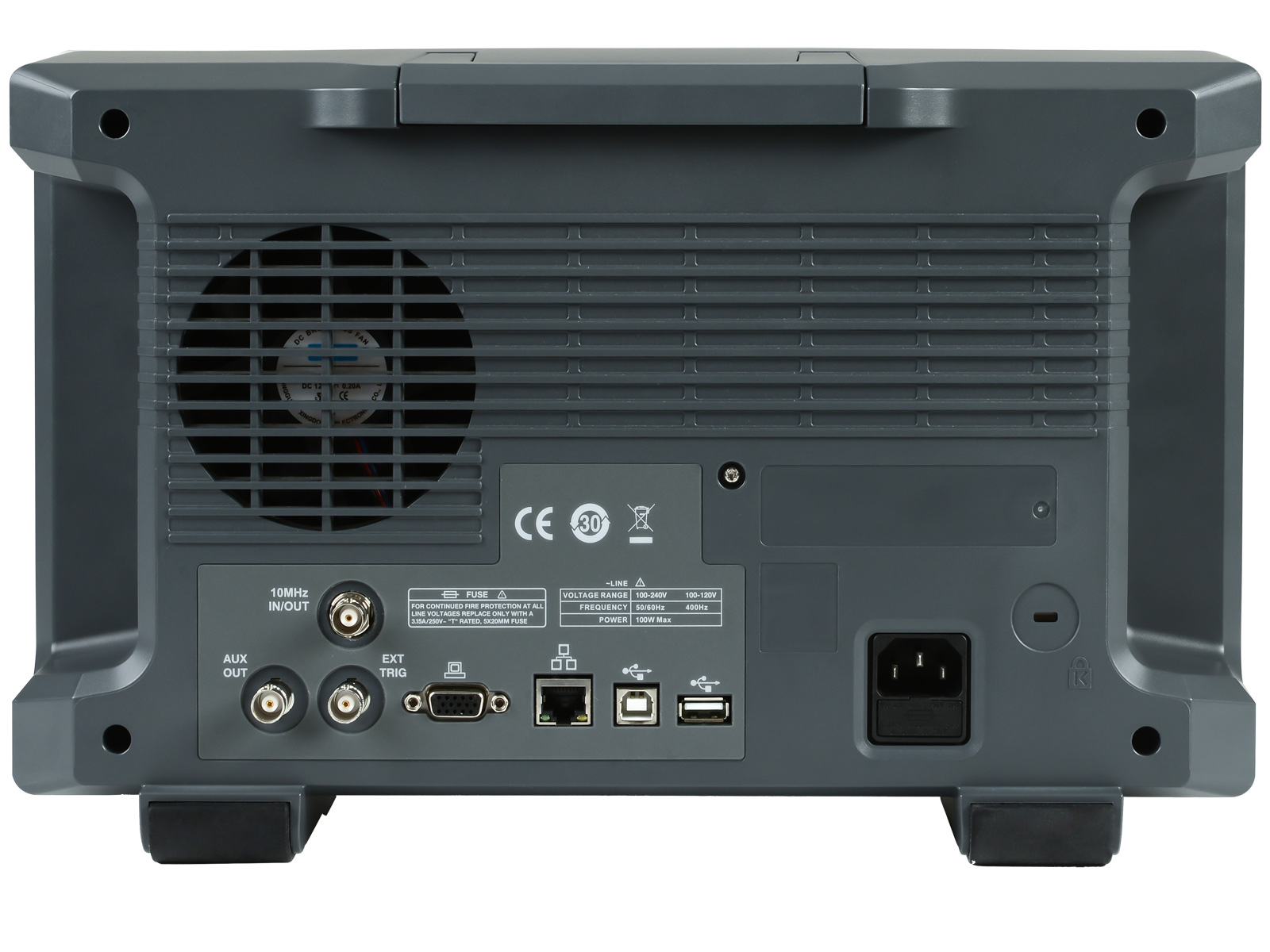

- LAN Ethernet and USB interface
- Support for external mouse and keyboard
Supplied with:
- USB cable
- Quick start guide
- Passive probes 500 MHz SP3050A (4 pieces)
- Calibration certificate (factory calibration)
- Power cord 230V AC EU
Can be extended with:
- Integrated function generator 25MHz

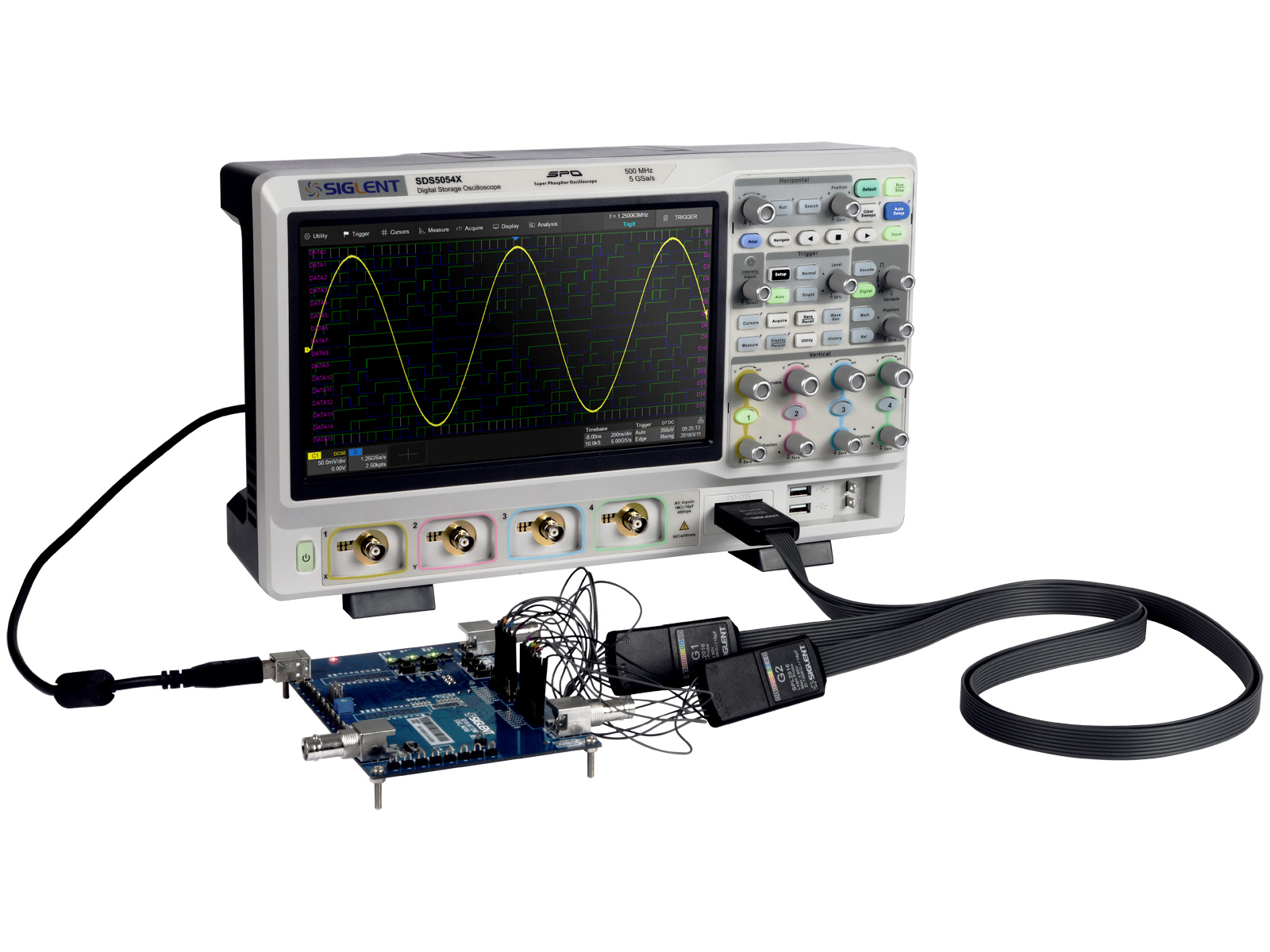

- Integrated logic analyzer 16 channels 1.25Gsa/s
- Support for triggering and decoding of additional serial protocols (Flexray, CAN FD, I2S, MIL-STD-1553B)

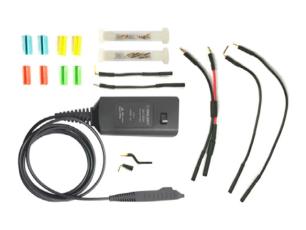

- Active probe 1 GHz SAP000
