Product description

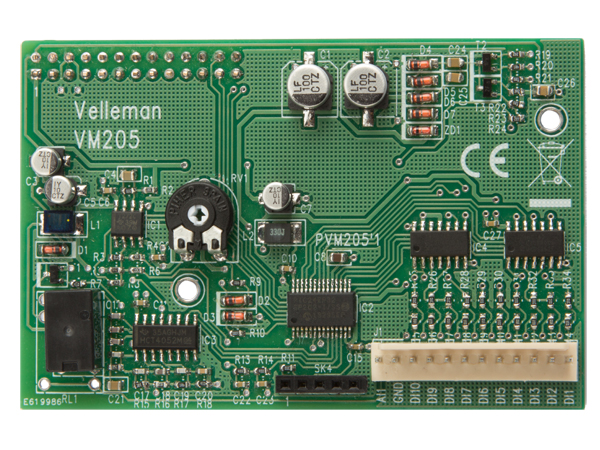

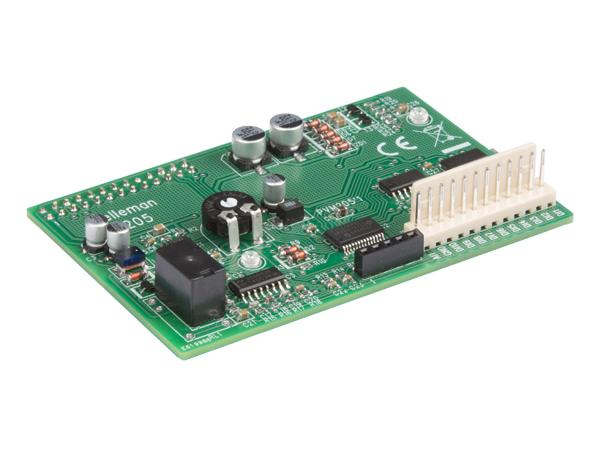

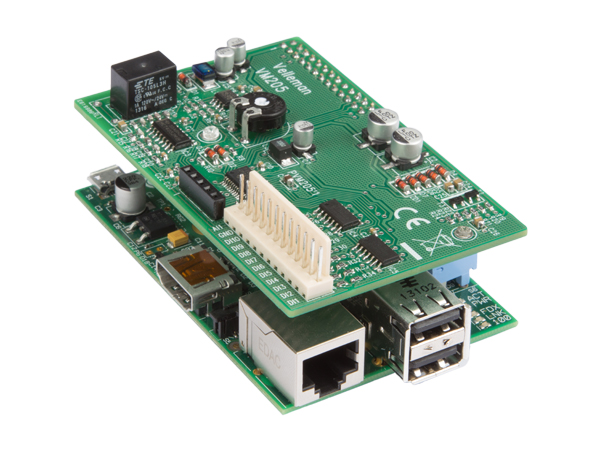

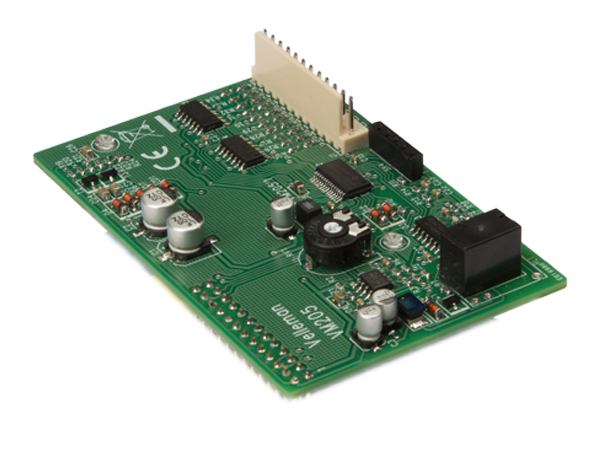

Do you have a RaspberryPi? Add this shield and you also own a digital storage oscilloscope!
The shield offers all standard oscilloscope features and comes with the source code, so you can develop your own applications.
As a bonus, you also get a 10-channel logic analyzer, a great tool to monitor digital signals.
Specifications
oscilloscope:
maximum sample rate : 1MS/s
input amplifier bandwidth : 200kHz (-3dB)
measurements can be performed up to: 100kHz
input impedance : 100kohm // 20pF
maximum input voltage: 30Vp (AC + DC)
input coupling: AC+DC
AD resolution: 8 bit
record length: 800 samples
run modes: Run, Single
trigger level adjustable: in 254 steps
timebase range: in 15 steps 5µs to 200ms/division
input sensitivity range : in 6 steps, 100mV/division to 5V/division
input sensitivity: 3mV display resolution
time and Voltage markers readout
frequency readout (through markers)
logic analyzer:
Number of channels: 10
record length: 10x800 samples
Maximum sample rate: 1MS/s
max. input voltage: 5VDC

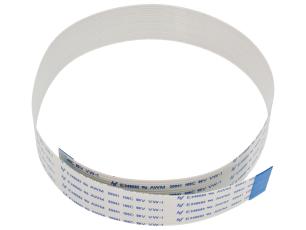

12p connecton cable is included
The shield offers all standard oscilloscope features and comes with the source code, so you can develop your own applications.
As a bonus, you also get a 10-channel logic analyzer, a great tool to monitor digital signals.
Specifications
oscilloscope:
maximum sample rate : 1MS/s
input amplifier bandwidth : 200kHz (-3dB)
measurements can be performed up to: 100kHz
input impedance : 100kohm // 20pF
maximum input voltage: 30Vp (AC + DC)
input coupling: AC+DC
AD resolution: 8 bit
record length: 800 samples
run modes: Run, Single
trigger level adjustable: in 254 steps
timebase range: in 15 steps 5µs to 200ms/division
input sensitivity range : in 6 steps, 100mV/division to 5V/division
input sensitivity: 3mV display resolution
time and Voltage markers readout
frequency readout (through markers)
logic analyzer:
Number of channels: 10
record length: 10x800 samples
Maximum sample rate: 1MS/s
max. input voltage: 5VDC
12p connecton cable is included
