Product description

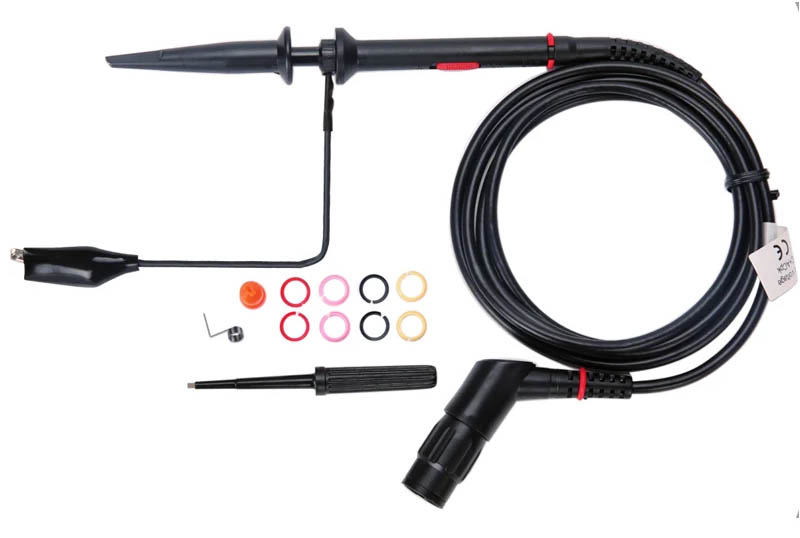

100 MHz passive oscilloscope probe with angled BNC connector. Ideal for handheld instruments, but also suitable for workbench oscilloscopes standing on a shelf. High performance, easy to use with a high-quality construction. Adjustable between x1 and x10.
Suitable for any types of oscilloscopes with BNC connection.
Specifications:
Length: 1.3m
Attenuation: 1:1 and 10:1
Bandwidth: 10MHz (1:1), 100MHz (10:1)
Input resistance: 1Mohm (1:1) and 10Mohm (10:1)
Input capacitance: 85-115pF (1:1) or 14.5-17.5pF (10:1)
Maximum input voltage (peak): <200V (1:1) <600V (10:1)
