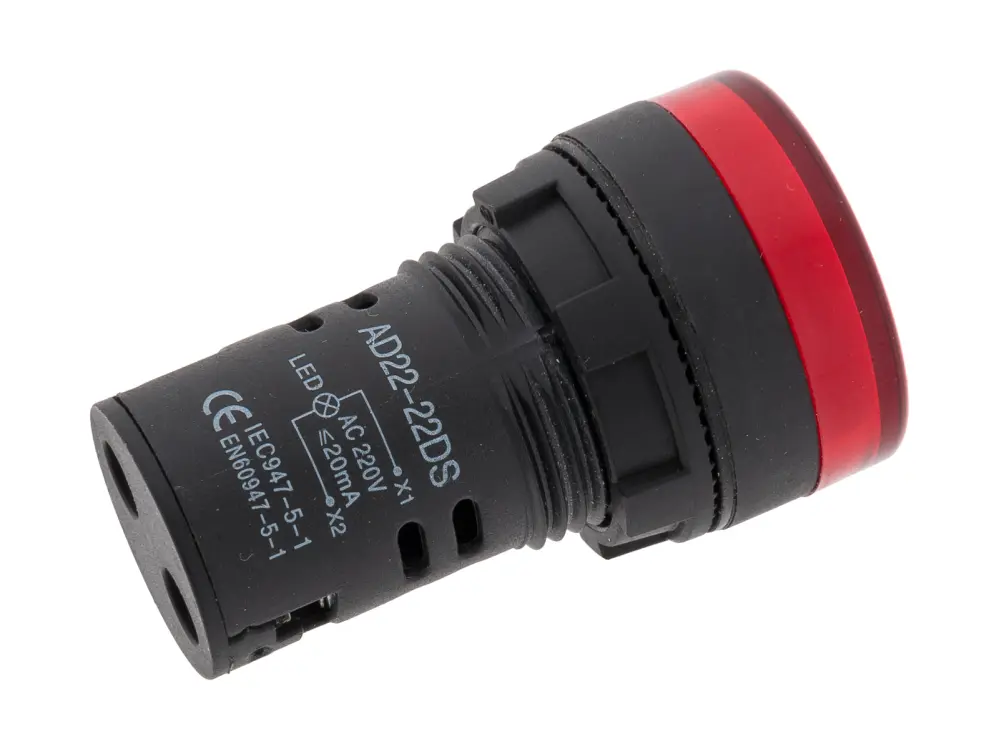

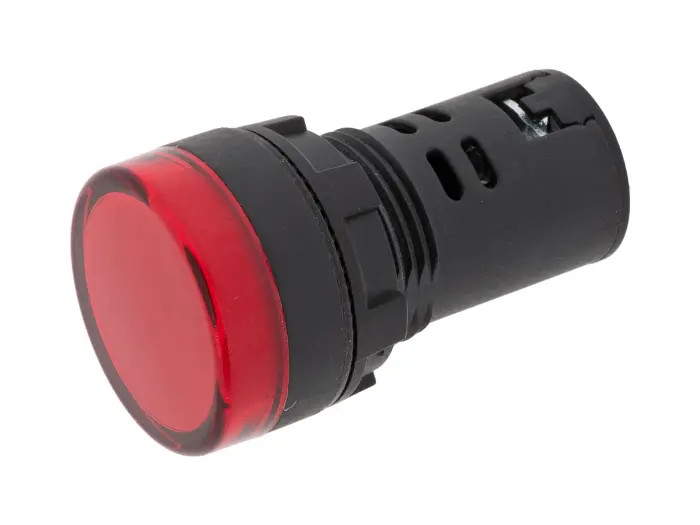

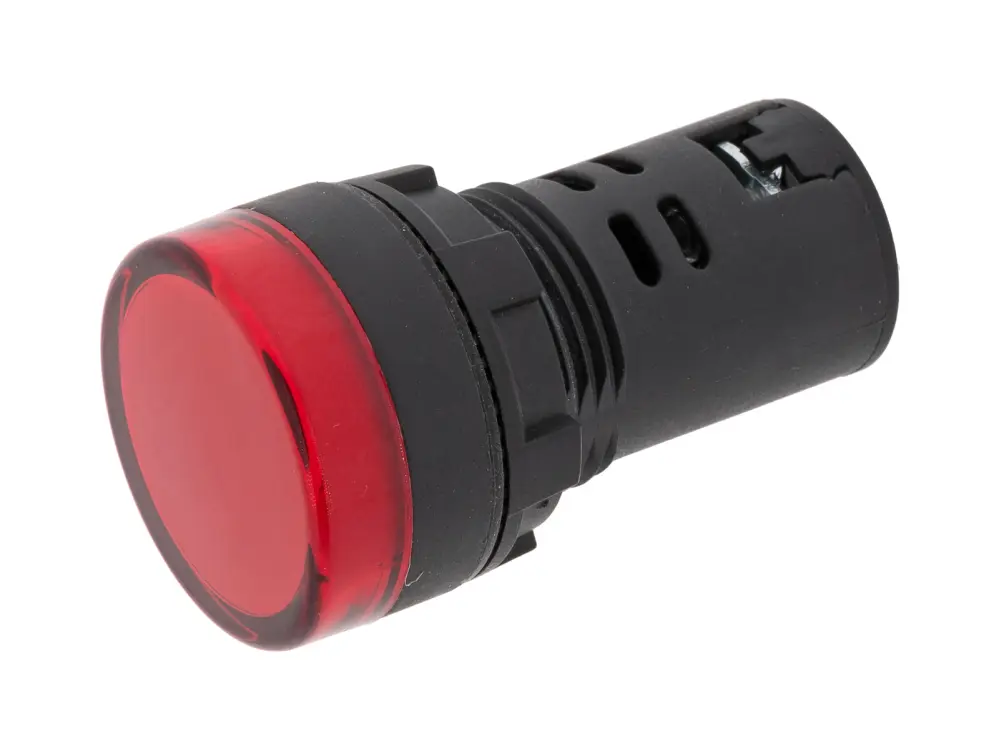

Panel mount indicator LED ø22mm 230VAC red

Art no: 41020558

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

Product description

OpenClose

Panel mounted LED lamp for indication. IP65 rated.

* Dimensions: ø29mm x 39+13mm
* Mounting hole: ø22mm
* Panel thickness: 6mm max
* Connections: 2x screw
* Voltage: 230VAC
* Current: 20mA

Documents

Datablad (pdf, 160.69 KB)

Technical data

Technical data/attributes for this product
Attribute	Value
Brightness-lm	7.33 lm
Color	Röd
Current	20 mA
Forward-voltage	230 V
Lens	Färgad diffus
Size	Ø22mm

SKU:
41020558

Quantity	Price /pcs
1 till9 pcs	9.50 SEK
10 till 24 pcs	8.55 SEK
25 till 99 pcs	7.10 SEK

Quantity	Price /pcs
1 till9 pcs	12.50 SEK
10 till 24 pcs	11.25 SEK
25 till 99 pcs	9.35 SEK

Quantity	Price /pcs
1 till9 pcs	15 SEK
10 till 99 pcs	10.50 SEK
100 till pcs	7.50 SEK

Quantity	Price /pcs
1 till9 pcs	13.10 SEK
10 till 24 pcs	11.80 SEK
25 till 99 pcs	9.80 SEK
