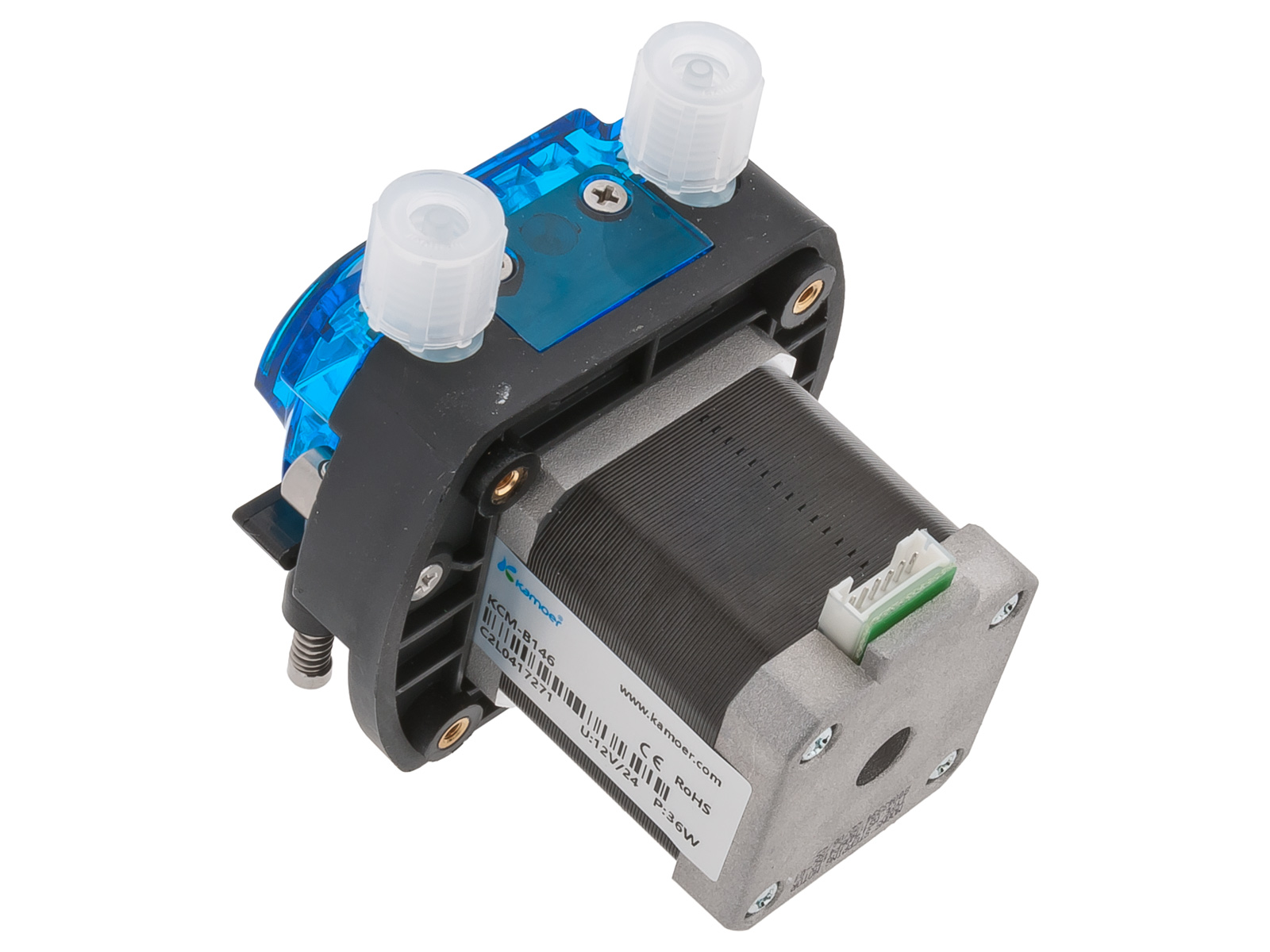

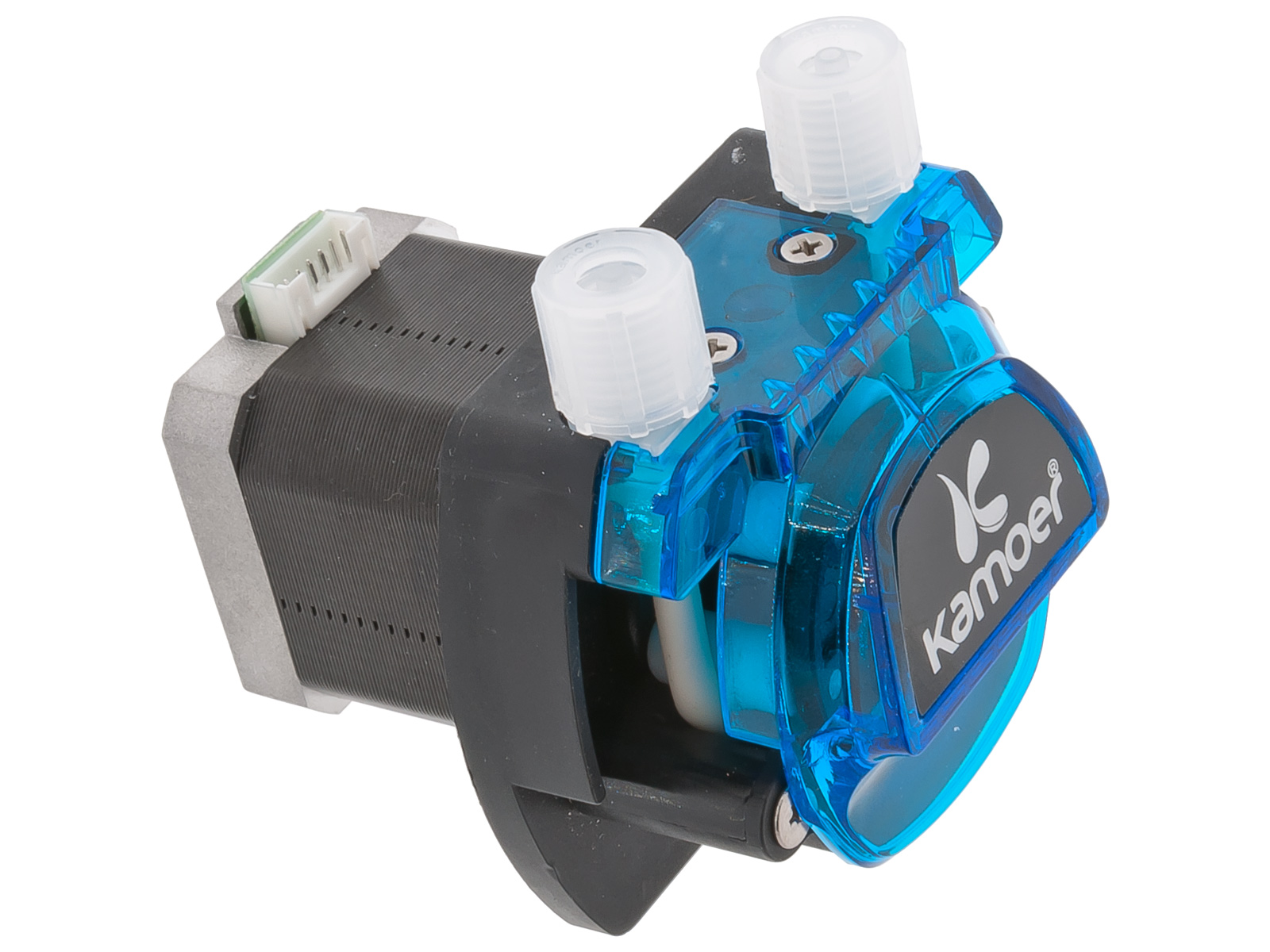

Peristaltic pump with stepper motor

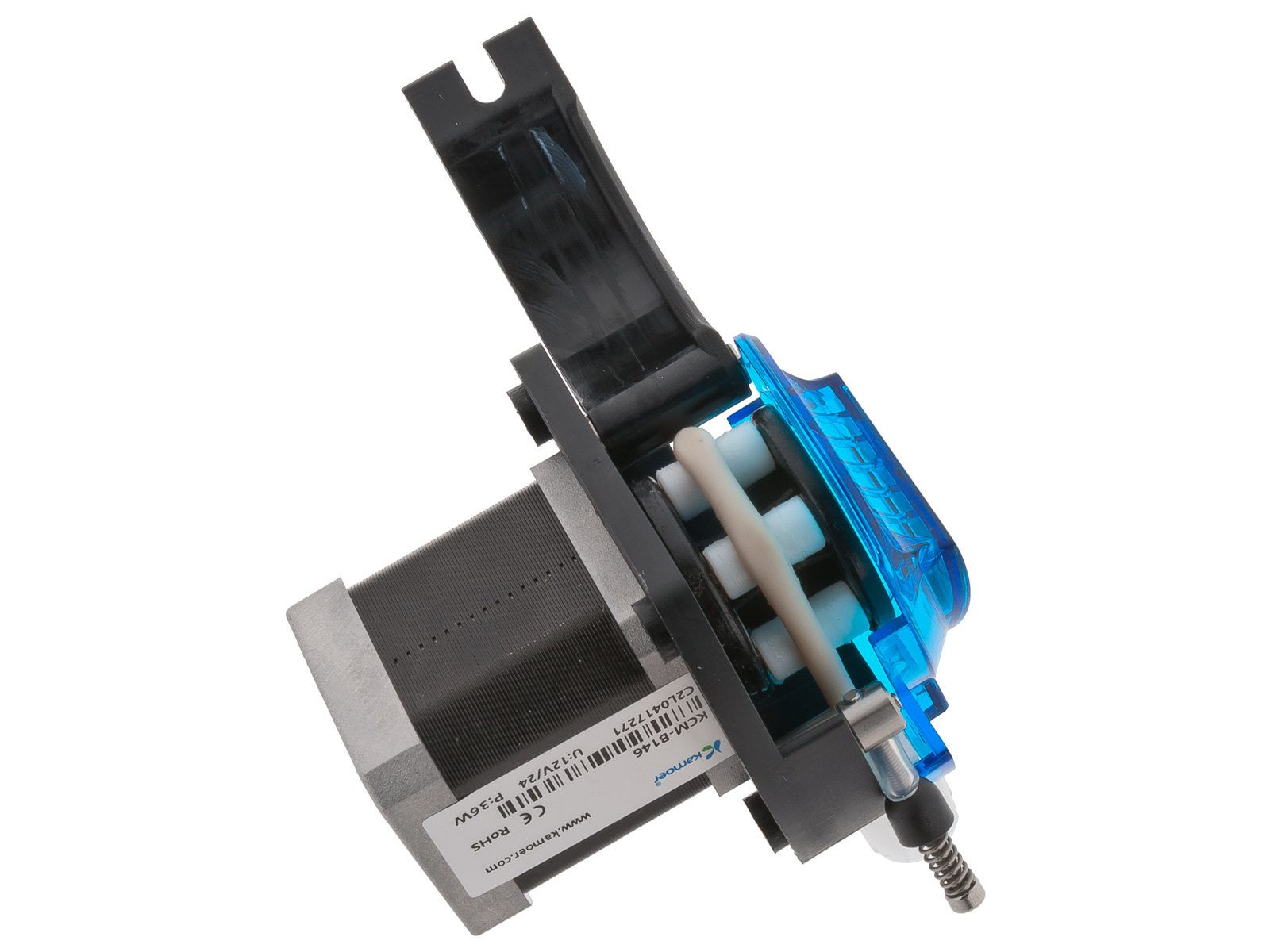

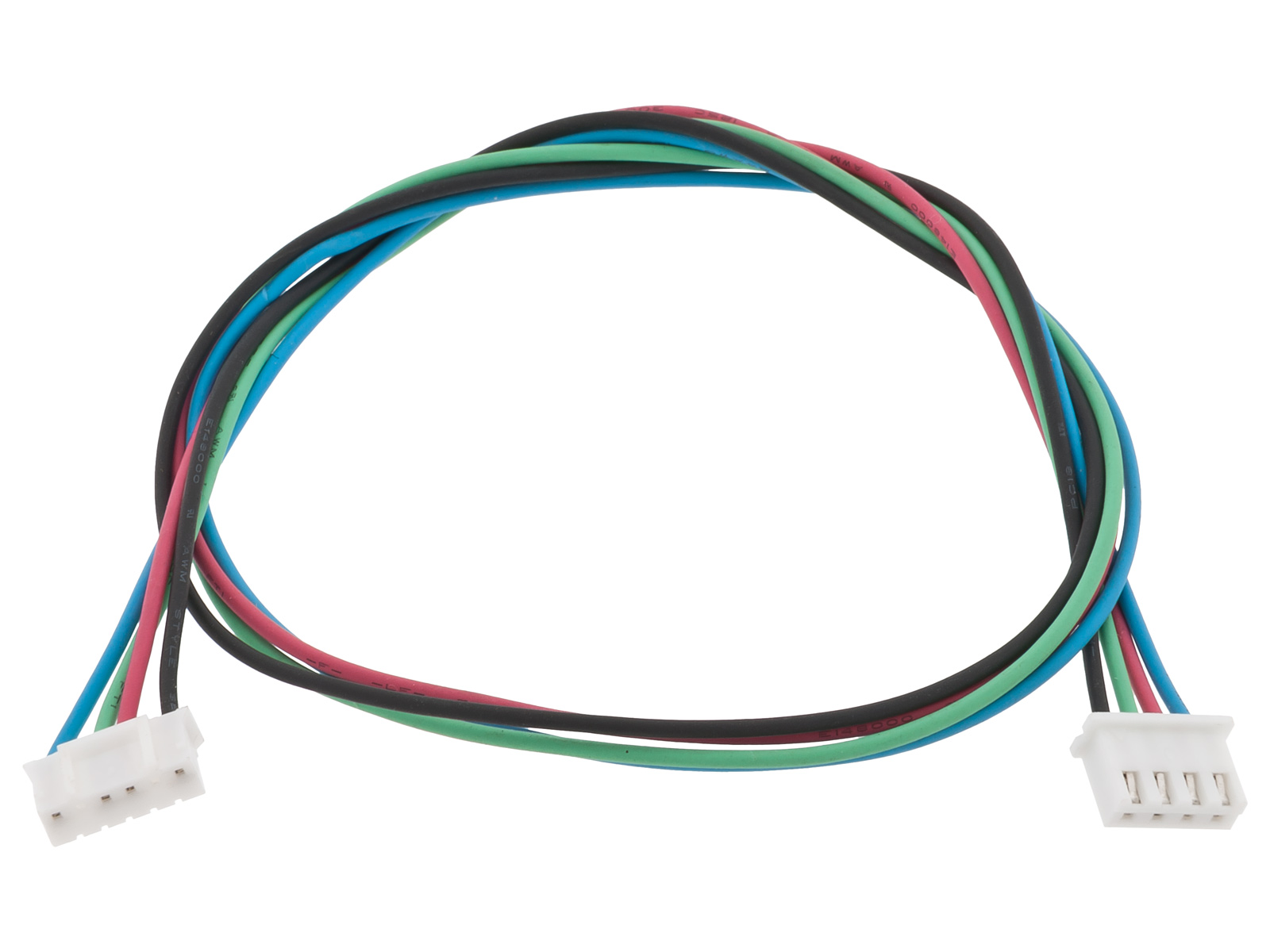

Peristaltic pump for contact-less transfer of liquids. The pump has a stepper motor with six rollers attached to the shaft that squeeze the tube and can both transfer liquid against gravity and do it without coming in contact with the liquid. The stepper motor provides extreme fine control over the pump and very precise dosing can be achieved. 400mm wires with 2.54mm JST-XH connector is included. External tubing is sold separately.

To control this pump, you will need a stepper motor driver / controller and a power supply that can provide at least 12V, 3A.

Part.no: KCM-B146
Motor specifications: 2-phase, 1.2A, 1.8°, NEMA17
Dimensions: 79 x 74 x 88mm
