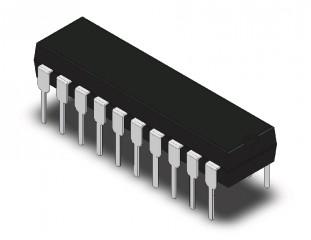

Product description
8-bit Microcontroller based on the PIC RISC architecture.
Max CPU operating frequency: 20MHz
Flash: 4k words
RAM: 256B
EEPROM: 256B
Features
* Precision Internal Oscillator:
- Factory calibrated to ± 1%
- Software selectable frequency range of 8 MHz to 32 kHz
- Software tunable
- Two-Speed Start-up mode
- Crystal fail detect for critical applications
- Clock mode switching during operation for power savings
* Power-Saving Sleep mode
* Wide operating voltage range (2.0V-5.5V)
* Power-on Reset (POR)
* Power-up Timer (PWRTE) and Oscillator Start-up Timer (OST)
* Brown-out Reset (BOR) with software control option
* Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable
* Multiplexed Master Clear/Input pin
* Programmable code protection
* 17 I/O pins and 1 input only pin:
- High current source/sink for direct LED drive
- Interrupt-on-Change pin
- Individually programmable weak pull-ups
- Ultra Low-Power Wake-up (ULPWU)
* Analog Comparator module with:
- Two analog comparators
- Programmable on-chip voltage reference (CVREF) module (% of VDD)
- Comparator inputs and outputs externally accessible
- SR Latch mode
- Timer 1 Gate Sync Latch
- Fixed 0.6V VREF
* A/D Converter:
- 10-bit resolution and 12 channels
* Timer0: 8-bit timer/counter with 8-bit programmable prescaler
* Enhanced Timer1:
- 16-bit timer/counter with prescaler
- External Timer1 Gate (count enable)
- Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected
* Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
* Enhanced Capture, Compare, PWM+ module:
- 16-bit Capture, max resolution 12.5 ns
- Compare, max resolution 200 ns
- 10-bit PWM with 1, 2 or 4 output channels, programmable "dead time", max frequency 20 kHz
- PWM output steering control
* I2C (Master/Slave modes):
- I2C address mask
* In-Circuit Serial Programming (ICSP) via two pins
