Product description

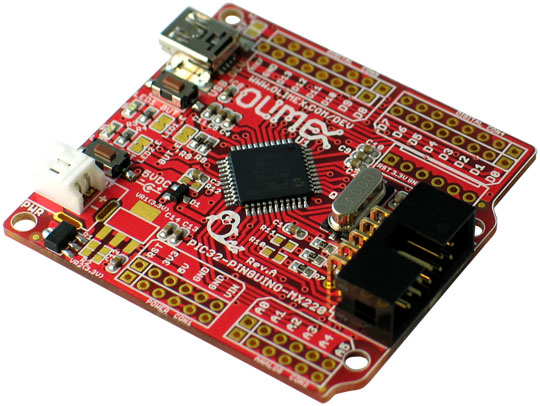

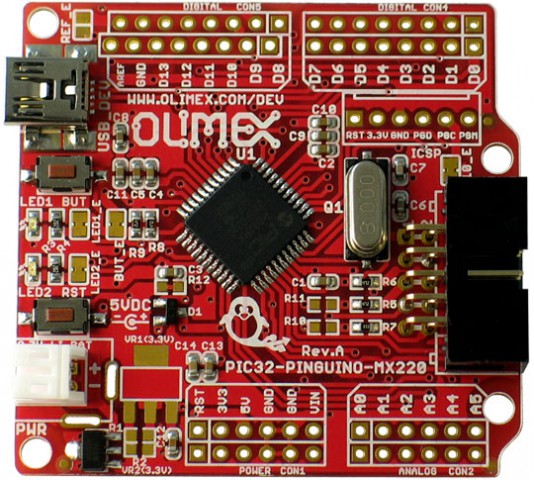

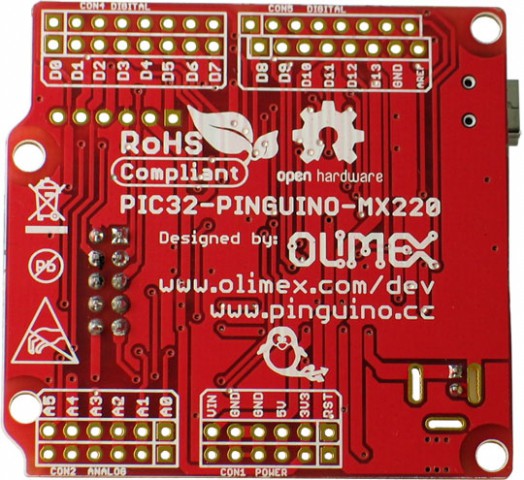

PIC32-PINGUINO-MX220 ULTRA LOW COST 32 BIT PINGUINO MAPLE ARDUINO LIKE DEVELOPMENT BOARD
INTRODUCTION:
ARDUINO-UNO like board with PIC32MX220F032D.

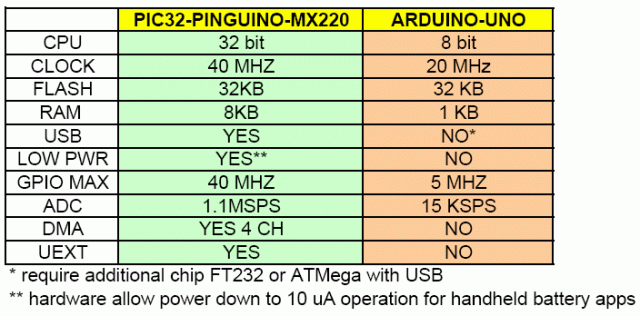

Generally this board outperform ARDUINO-UNO as hardware capabilities.
FEATURES:
PIC32MX220F032D 32 bit, 40 Mhz microcontroller 32KB Flash 8KB RAM
Ultra Low Power design
Li-Po battery connector for handheld applications
UEXT connector which allow many existing modules like RF, ZIGBEE, GSM, GPS to be connected
two LEDs
one USER BUTTON
RESET button
mini USB connector is used which is common and used in most cell phones, so you do not have to buy other cables
all PIC ports available on 0.1" connectors matching ARDUINO platform and second row with correct 0.1"step
ICSP signals provided on 0.1" step connector if you do not want to use Pinguino IDE and want to program this board with PIC-KIT3.
INTRODUCTION:
ARDUINO-UNO like board with PIC32MX220F032D.
Generally this board outperform ARDUINO-UNO as hardware capabilities.
FEATURES:
PIC32MX220F032D 32 bit, 40 Mhz microcontroller 32KB Flash 8KB RAM
Ultra Low Power design
Li-Po battery connector for handheld applications
UEXT connector which allow many existing modules like RF, ZIGBEE, GSM, GPS to be connected
two LEDs
one USER BUTTON
RESET button
mini USB connector is used which is common and used in most cell phones, so you do not have to buy other cables
all PIC ports available on 0.1" connectors matching ARDUINO platform and second row with correct 0.1"step
ICSP signals provided on 0.1" step connector if you do not want to use Pinguino IDE and want to program this board with PIC-KIT3.
