Product description

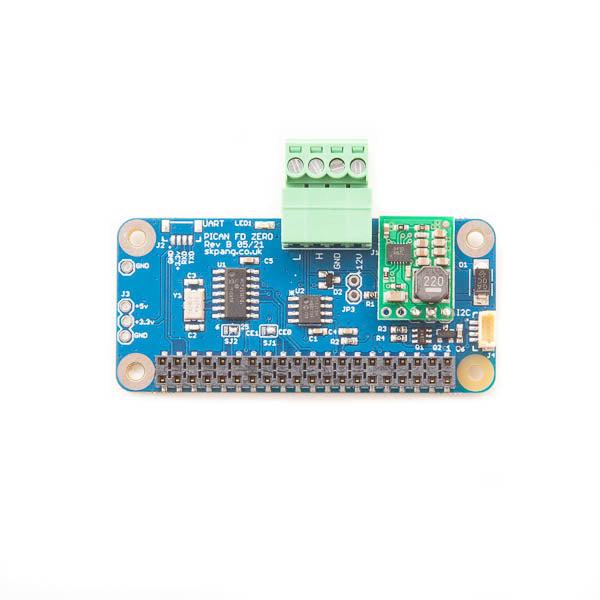

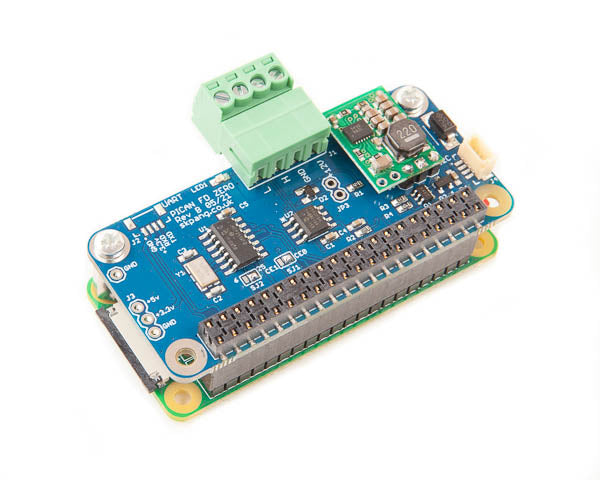

This PiCAN FD Zero board provide CAN-Bus FD capability for the Raspberry Pi Zero. It uses the Microchip MCP2518FD CAN controller with MCP2562FD CAN transceiver. Connection are made via 4way plug in terminal. CAN_H, CAN_L and +12v supply for the board and the Pi Zero. On board is a 1A SMPS which supplies power to the PiCAN FD and Pi Zero board.
The improved CAN FD extends the length of the data section to up to 64 bytes per frame and a data rate of up to 8 Mbps.
Pi Zero, sensor board and cable not included.
Features
Microchip MCP2518FD CAN Controller
Microchip MCP2562FD CAN transceiver
Arbitration Bit Rate up to 1Mbps
Data Bit Rate up to 8Mbps
CAN FD Controller modes
Mixed CAN 2.0B and CANFD mode
CAN 2.0B mode
Conforms to ISO 11898-1:2015
High speed SPI Interface
4 way plug-in terminal for CAN and power
120O terminator ready
LED indicator (GPIO 22)
SocketCAN driver, appears as can0 to application
Interrupt RX on GPIO25 or GPIO6

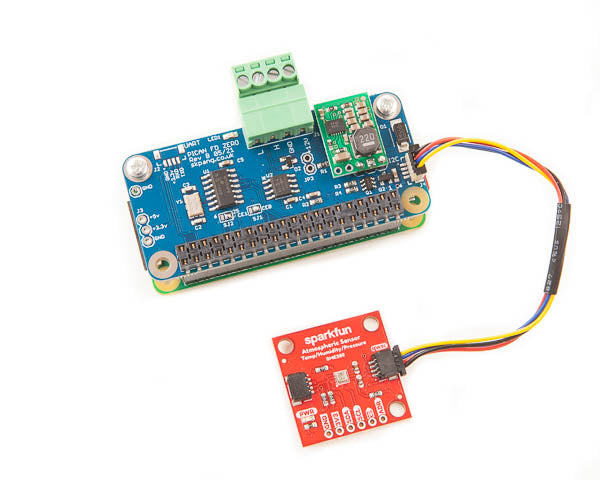

Qwiic (I2C) connector for extra sensors
1A SMPS 6v to 20v input range
