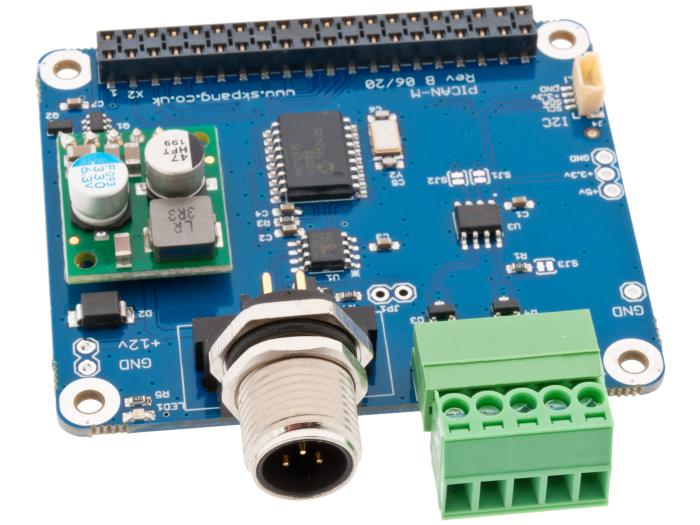

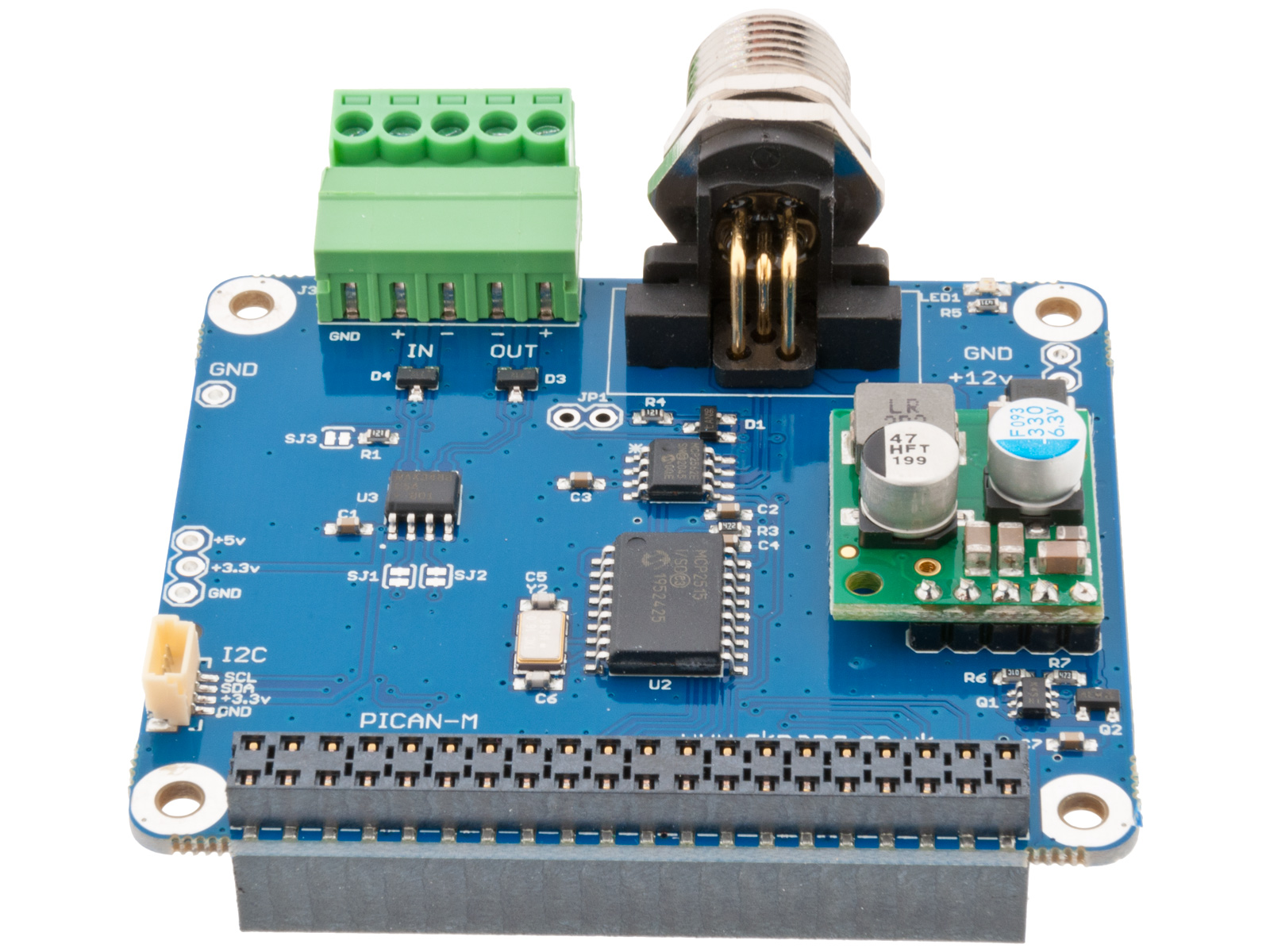

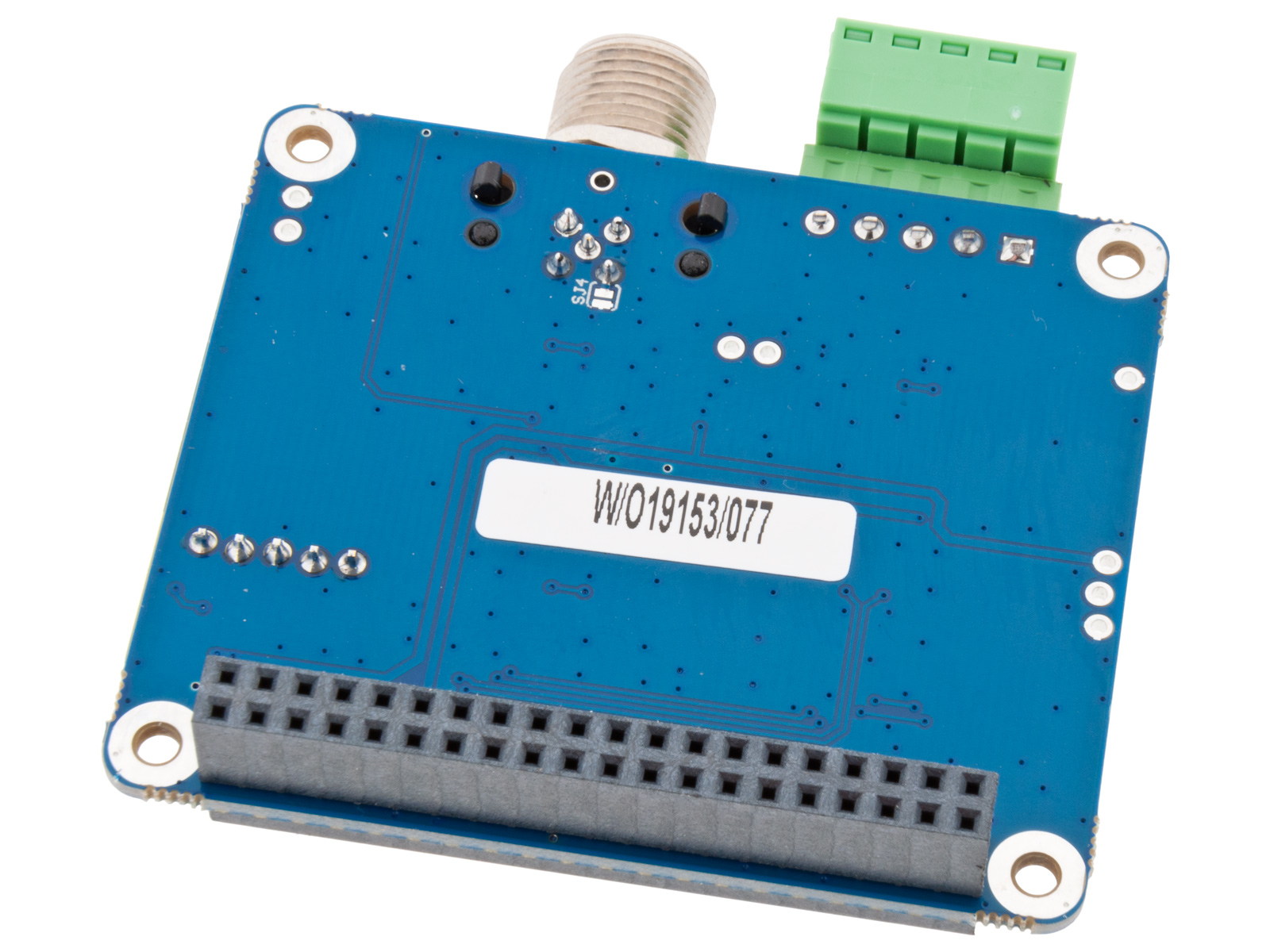

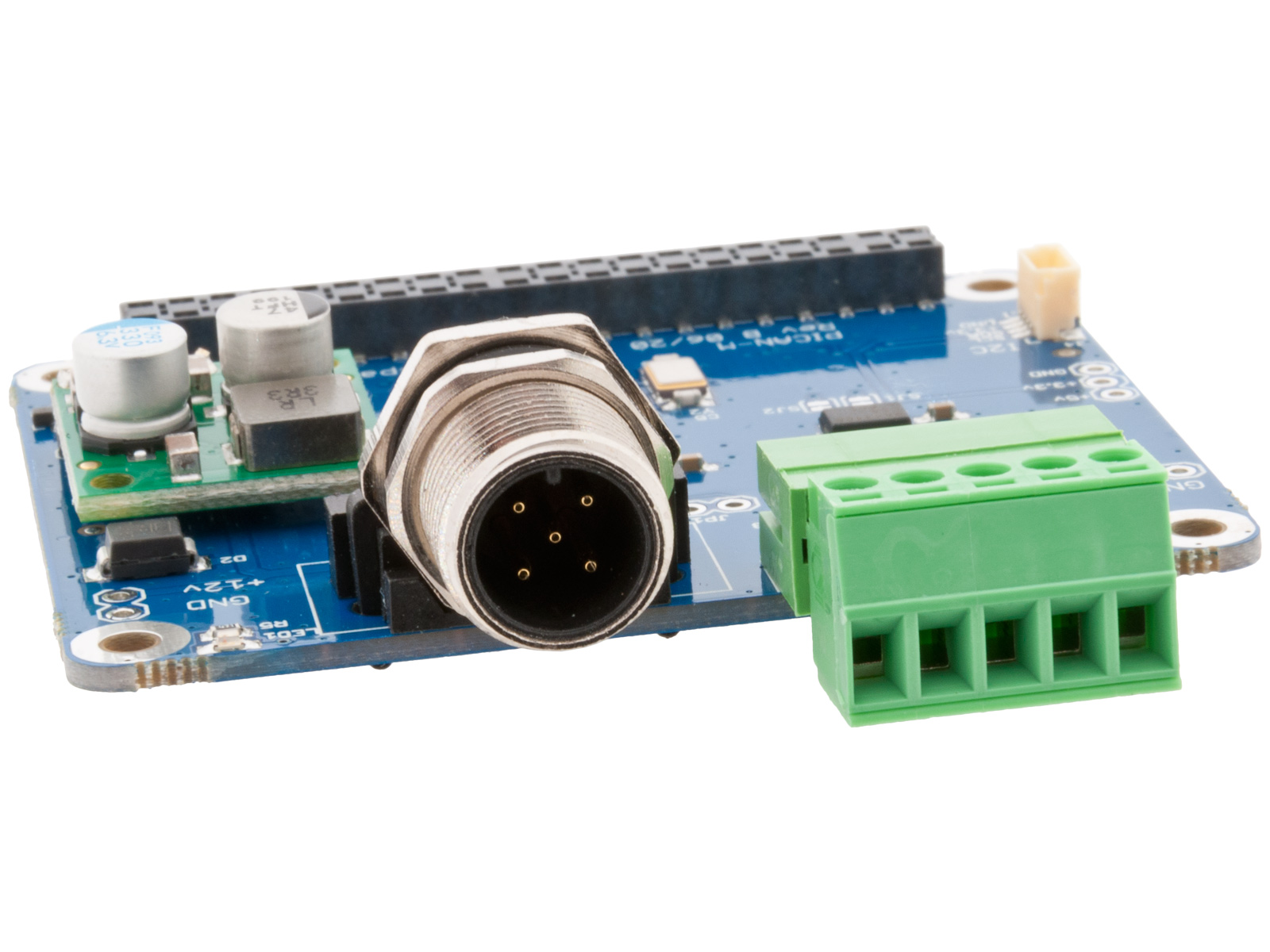

PiCAN-M with NMEA 0183 and NMEA 2000 Connection + 3A SMPS

This is a PiCAN-M with NMEA 0183 and NMEA 2000 Connection. The NMEA 0183 (RS422) is via a 5 way screw terminal. The NMEA 2000 is via Micro-C connector.

This board includes a 3A SMPS. The 12v from the NMEA 2000 network can be use to power the PiCAN-M and the Raspberry Pi.
Features
CAN connection via Micro-C connector
120O terminator ready
SocketCAN driver
appears as can0 to application
NMEA 0183 (RS422) via 5-way screw terminal
appears as ttyS0 to application
LED indicator (GPIO22)
Qwiic (I2C) connector for extra sensors
Include 3A SMPS to power the board and the Pi from 12v line.
Compatible with OpenCPN, OpenPlotter, Signal K and CANBoat
