Product description

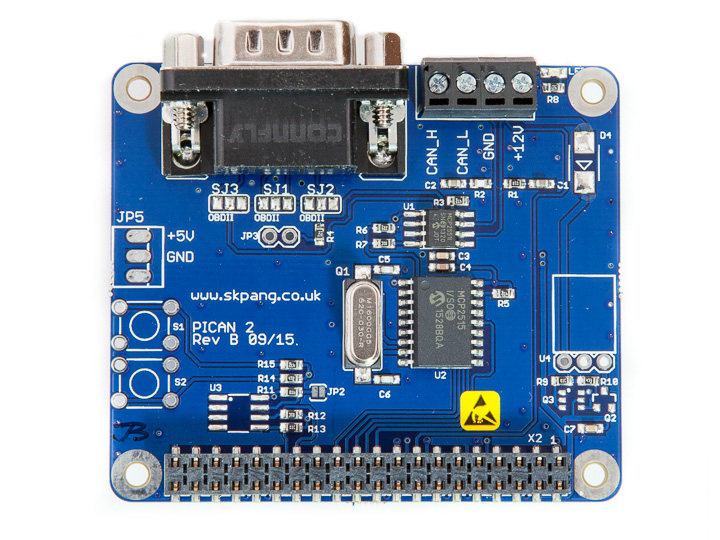

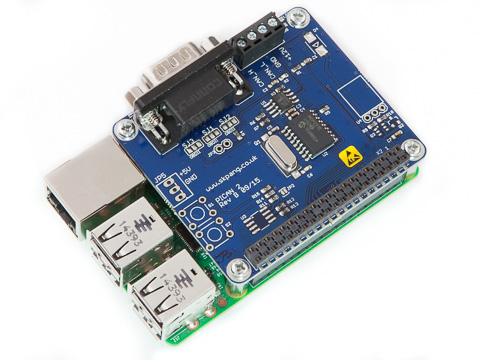

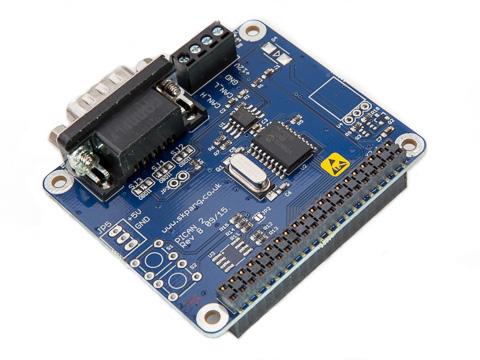

This PiCAN2 board provide CAN-Bus capability for the Raspberry Pi. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. Connection are made via DB9 or 3 way screw terminal. Compatible with Raspberry pi 2/3/4.
Easy to install SocketCAN driver. Programming can be done in C or Python.
Mounting screws (M2.5) not included.
Features:
* CAN v2.0B at 1 Mb/s
* High speed SPI Interface (10 MHz)
* Standard and extended data and remote frames
* CAN connection via standard 9-way sub-D connector or screw terminal
* Compatible with OBDII cable
* Solder bridge to set different configuration for DB9 connector
* 120O terminator ready
* Serial LCD ready
* LED indicator
* Foot print for two mini push buttons
* Four fixing holes, comply with Pi Hat standard
* SocketCAN driver, appears as can0 to application
* Interrupt RX on GPIO25
