Product description

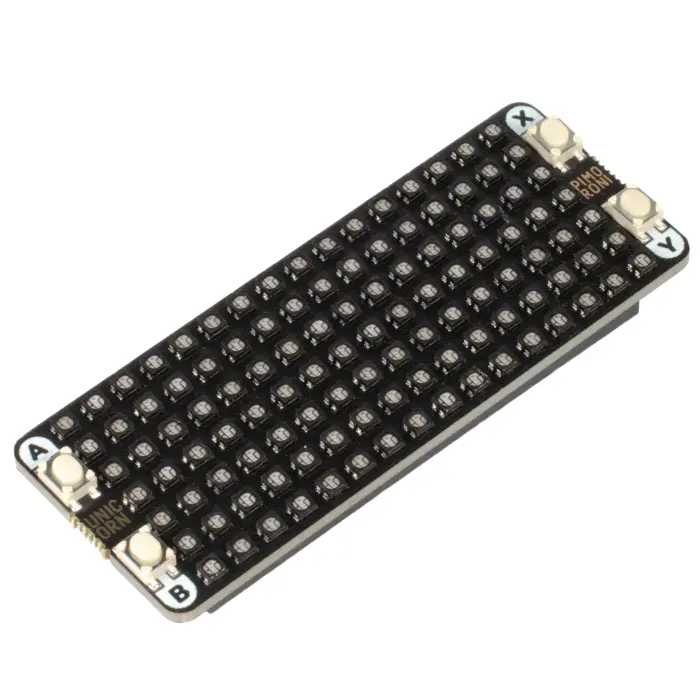

A sparkly matrix of over a hundred fantabulous RGB LEDs for all your rainbow needs and some handy buttons - sized perfectly for the Raspberry Pi Pico!
With a tidy 7x16 matrix (that's 112 RGB LEDs!) it's surely the fanciest backpack going. The four tactile buttons can be used to switch between modes, as controls for simple games, or adjusting brightness.
It's possible to control the colour and brightness of each LED individually so you can use it to display animations, text, simple images, and more. Make a mini photo FX lamp, a smart status light for Zoom, use it to display colourful scrolling messages on your fridge, or just enjoy some pretty animations.
Making use of the RP2040s programmable IOs (PIOs)
What's exciting is that these LEDs are fully controlled by the programmable IO feature of the RP2040 microcontroller so they update in the background with very little CPU usage. The programmable IOs are so fast that we can achieve 14-bits of resolution instead of the 8-bits you usually get with LED drivers.
Pimoroni uses these extra bits of resolution to apply gamma correction to the colours displayed meaning that gradients are smooth and linear. It's noticeably a cut above in visual quality.
This means that the LEDs perform wonderfully through their full range of brightness rather than being poor at handling lower brightness levels. The software library handles it all for you in the background.
Your Pico will need to have male headers soldered to it (with the pins pointing downwards) to attach to our add-on boards.
Features
16x7 matrix of RGB LEDs (112 total)
Individual colour/brightness control of each LED
3x TLC59283 LED driver chips 4 x tactile buttons
Pre-soldered female headers for attaching to Pico
Compatible with Raspberry Pi Pico.
Fully assembled
No soldering required (as long as your Pico has header pins attached).
Dimensions: approx 62mm x 25mm x 10mm (L x W x H, including headers and buttons)
Pinout
Programmable with C/C++ and MicroPython
Getting started
The labels on the underside of Pico Unicorn Pack will show you which way round to plug it into your Pico - just match up the USB port with the markings on the board.
The most straightforward way of getting started programming our Pico add-ons is by downloading and copying our custom MicroPython image to your Pico, it includes all the libraries you'll need!
