Product description

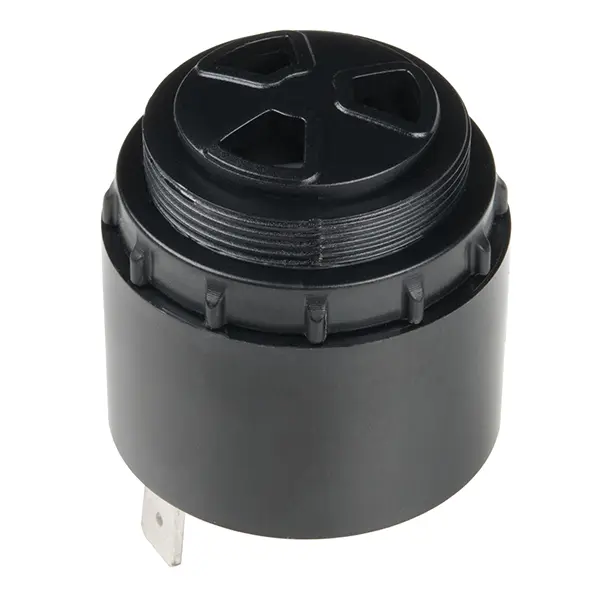

Panel mounted alarm. 15 variants of alarm tones, continuous, chime, intermittent, varying or pulsating. The choice of tone is set with DIP-switch. Suitable for vehicles or for indoor or outdoor installation. Made of ABS plastic.
Specifications:
- Supply voltage: 12 VDC (5-16 VDC)
- Current (at 12 V): 30 mA
- Frequency: 3 kHz ±50Hz
- Sound pressure level (SPL) at 61 cm: 102 dB
- Operating temperature: -30 to +65 °C
- Mounting hole: ø28.4 mm
- Panel thickness: 1-5 mm
- Size ø38.5x 35.7 mm
- Connection: Faston 6.35 mm
- Protection: IP68
- Weight: 35 g
