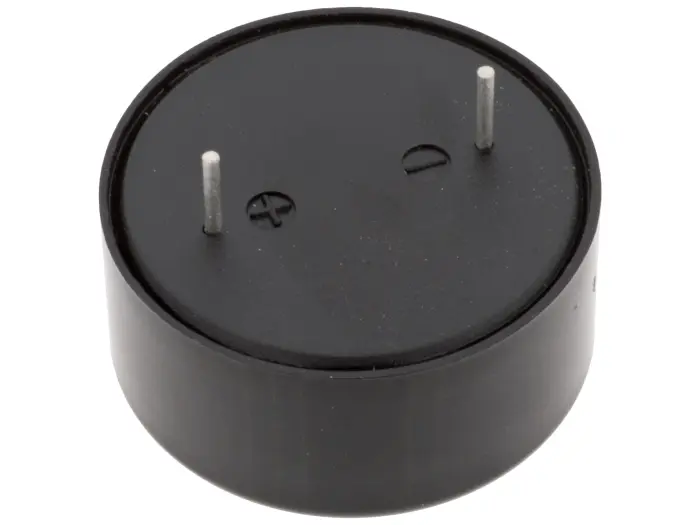

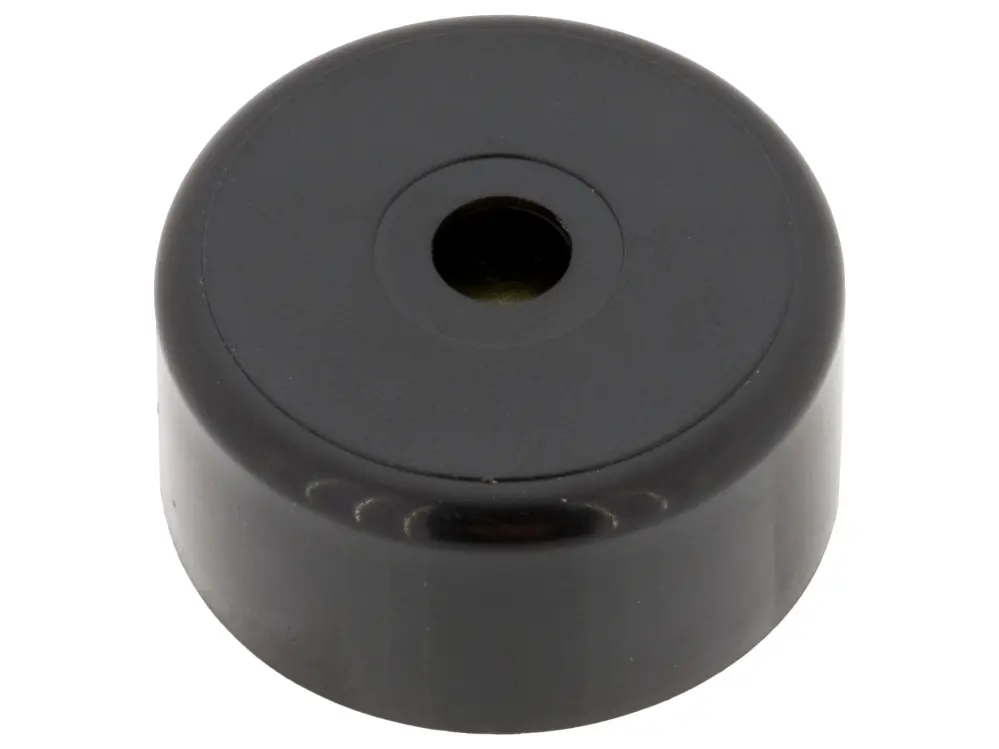

Active piezo buzzer 100dB 3-20VDC PCB

Active piezo buzzer 100dB. Made of ABS. For PCB mounting.

Specifications:

• Supply voltage: 12 VDC (3 - 20 VDC)
• Current (at 12 V): 10mA
• Resonant frequency: 3.2kHz ±500Hz
• Sound pressure level (SPL) at 10 cm: 100 dB
• Operating temperature: -20 to +60°C
• Pitch: 17.5mm

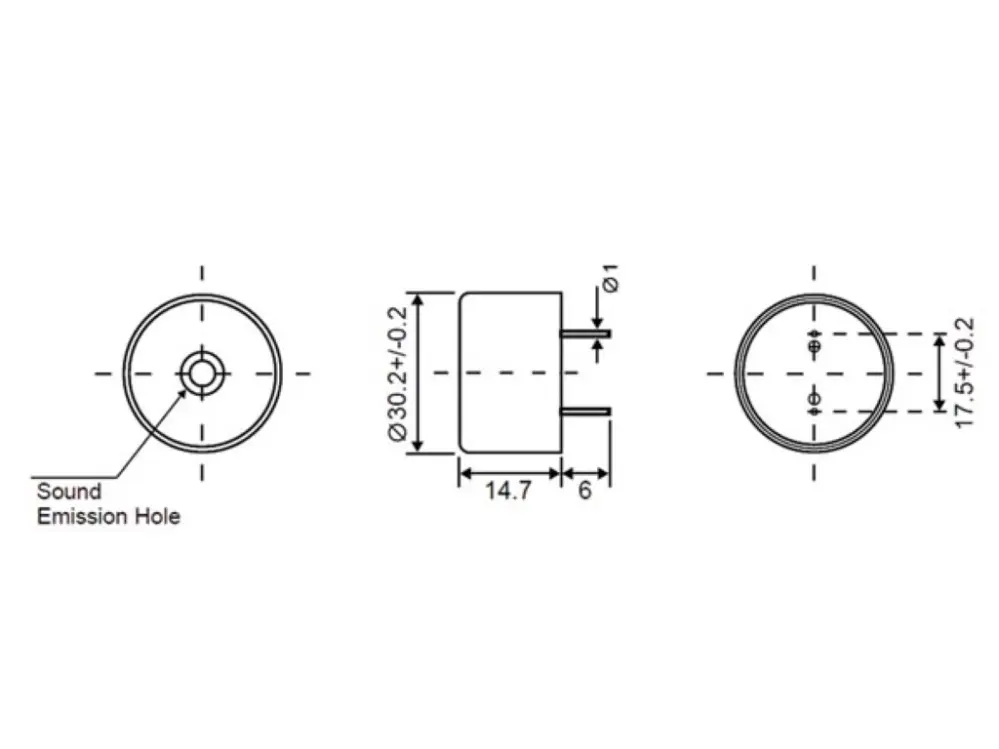

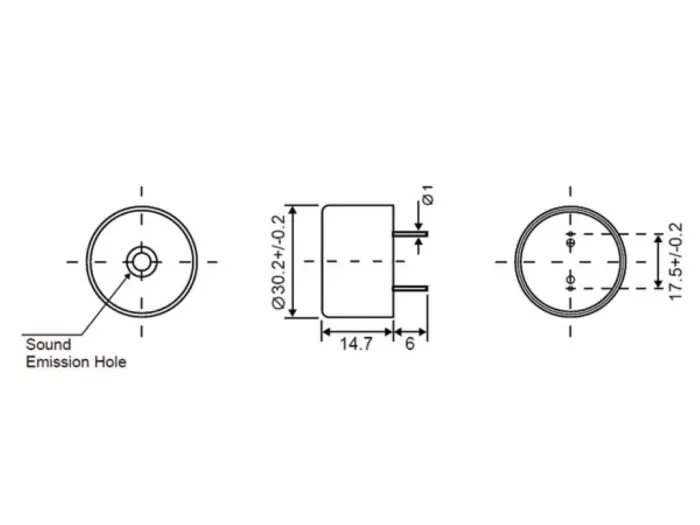

• Size ø30.2×14.7mm
