Product description

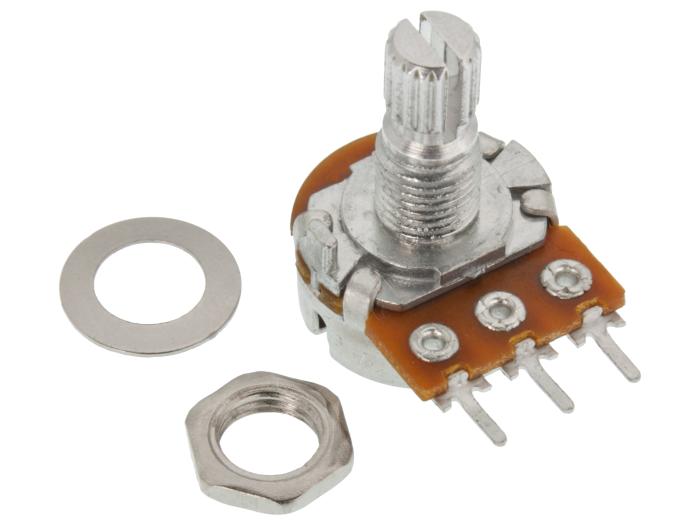

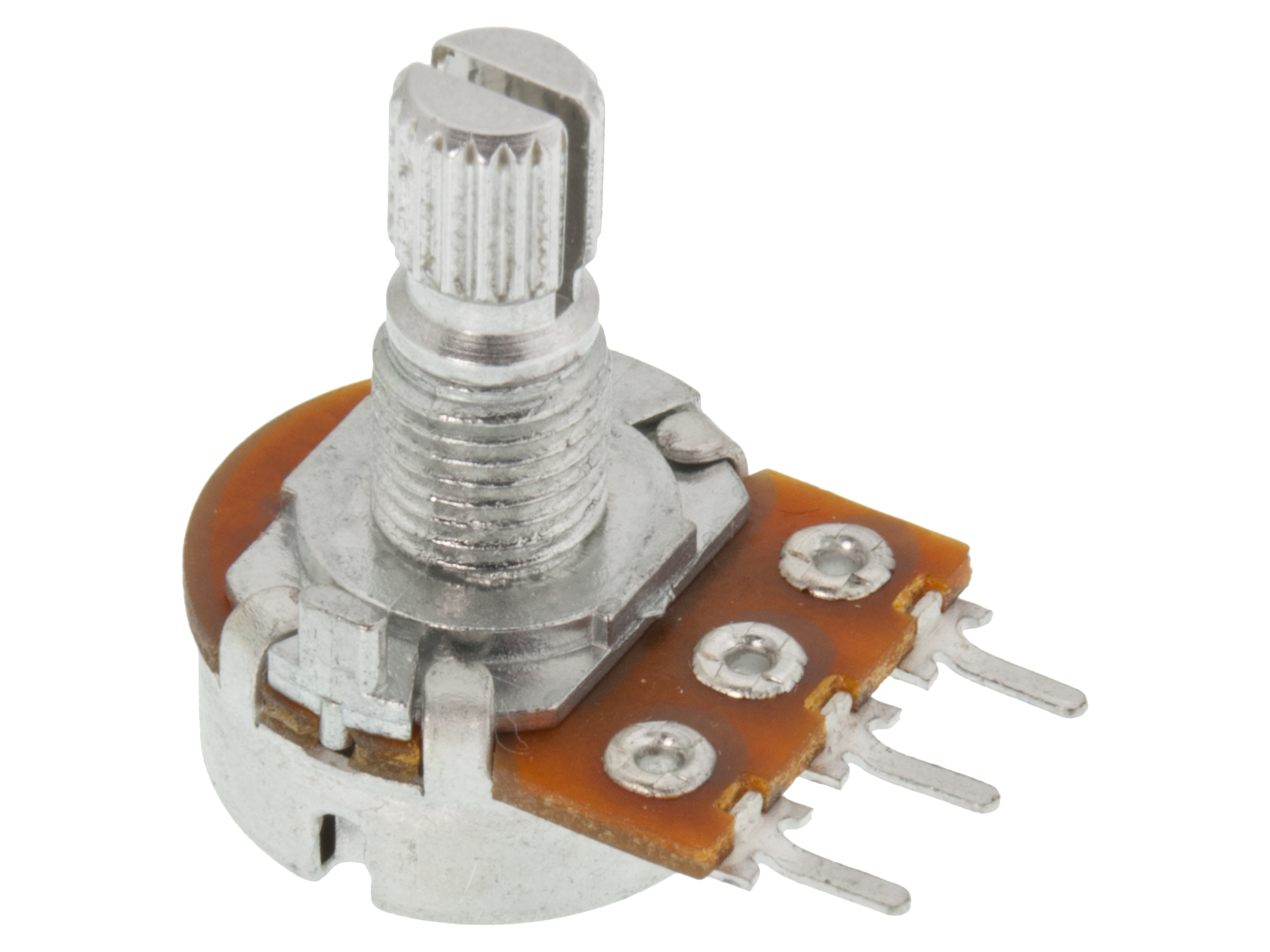

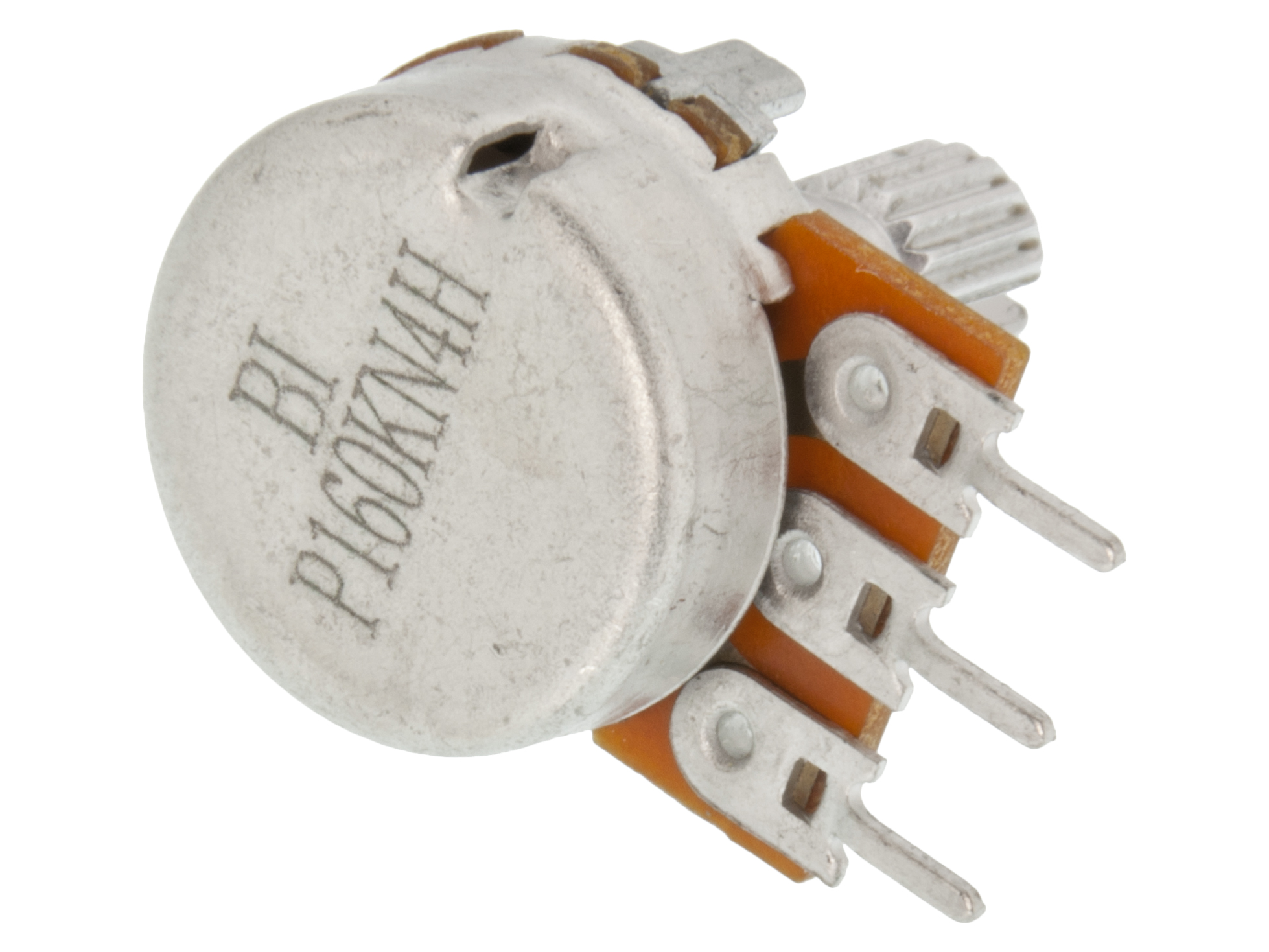

Potentiometer with conductive plastic element. Minimal noise and long life. Through-hole solder pins for circuit board. Right-angled. Knurled 18-tooth shaft.
* Resistance: 10kohm (±20%)
* Taper: Linear
* Voltage rating: 500VAC
* Power rating: 0.2W
* Pitch: 5mm
* Shaft: ø6 x 15mm 18T
* Rotational angle: 300°
* Temperature range: -20 to +70°C
* Model: P160KN-0QD15B10K
