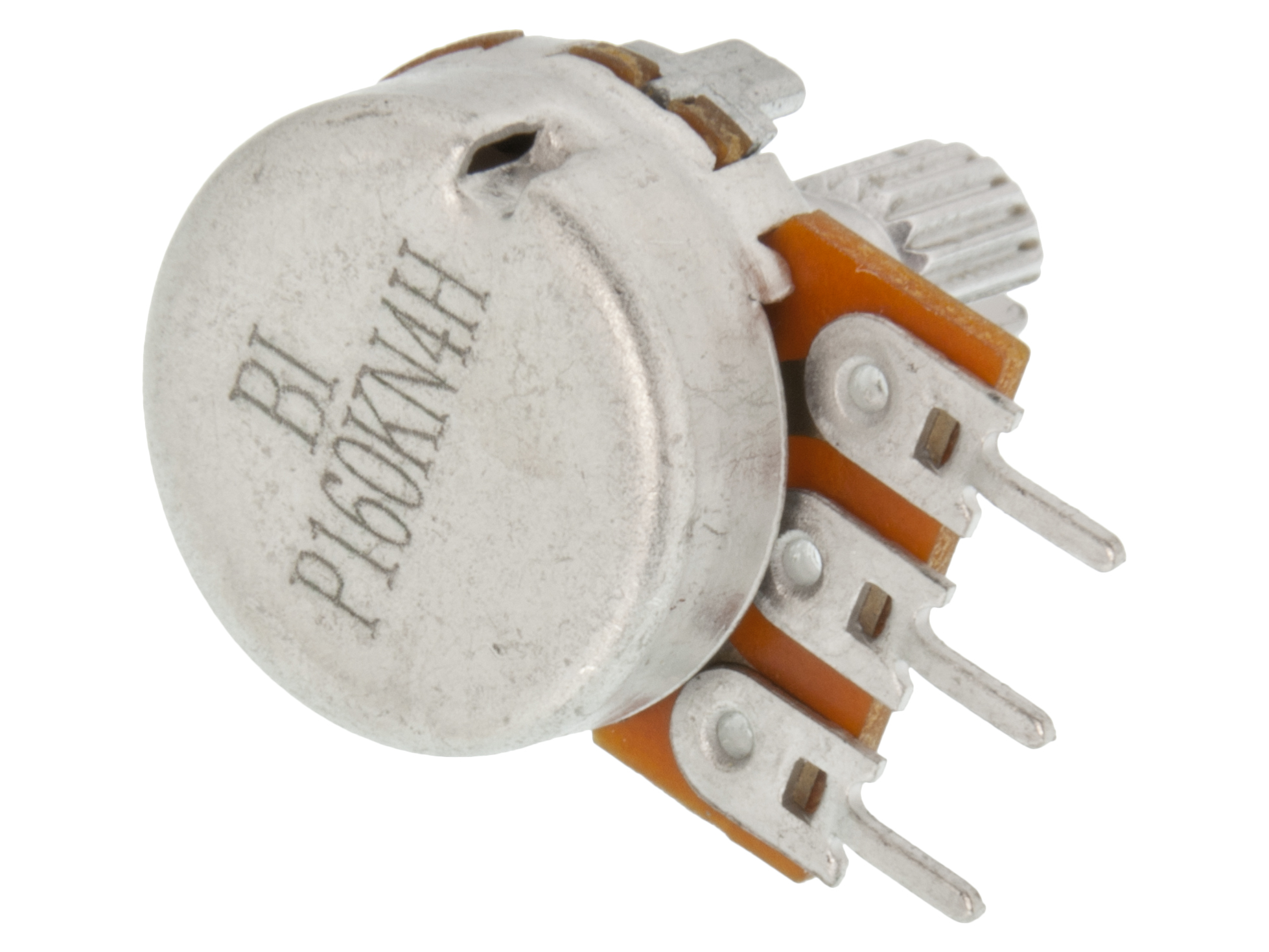

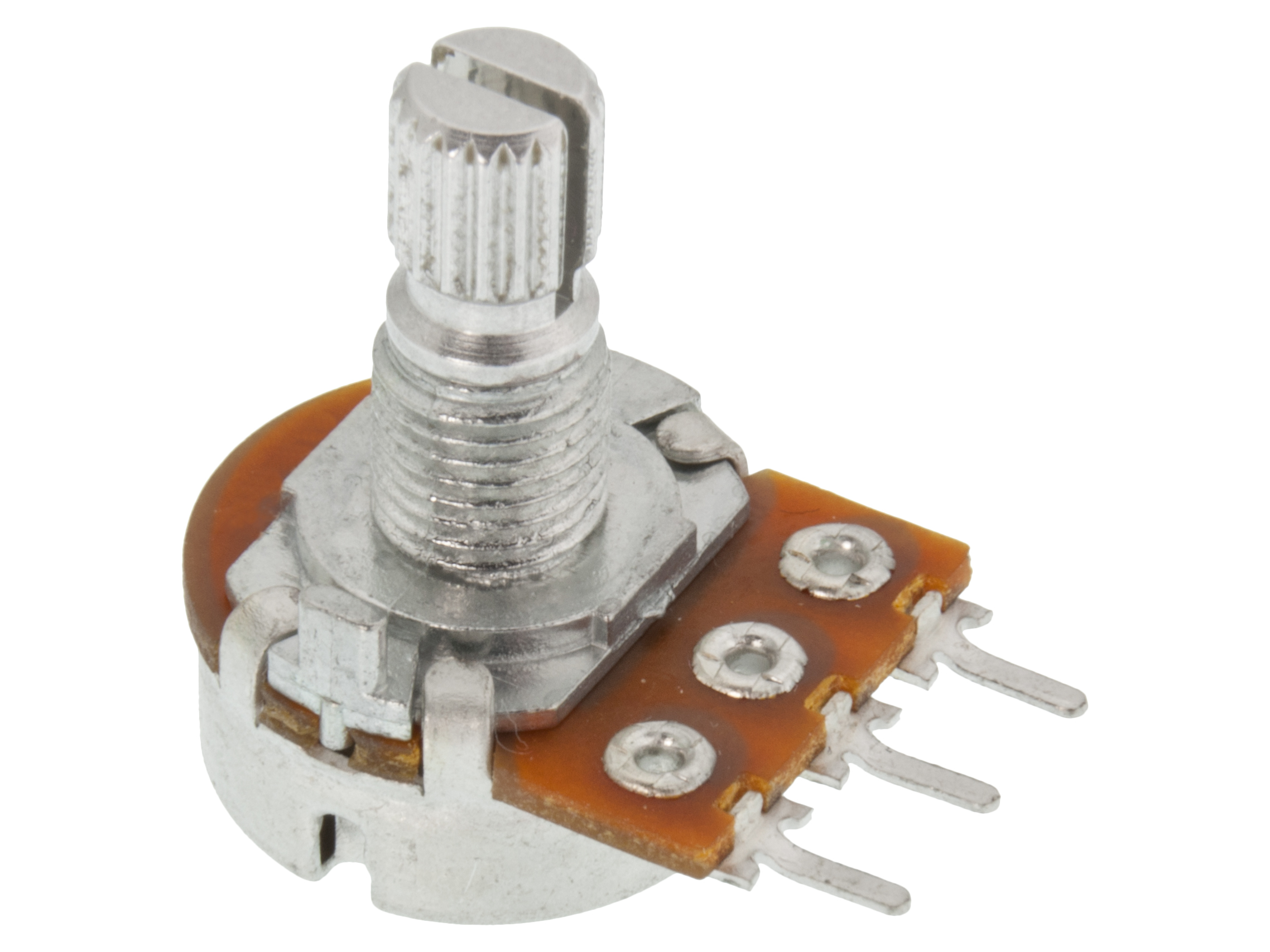

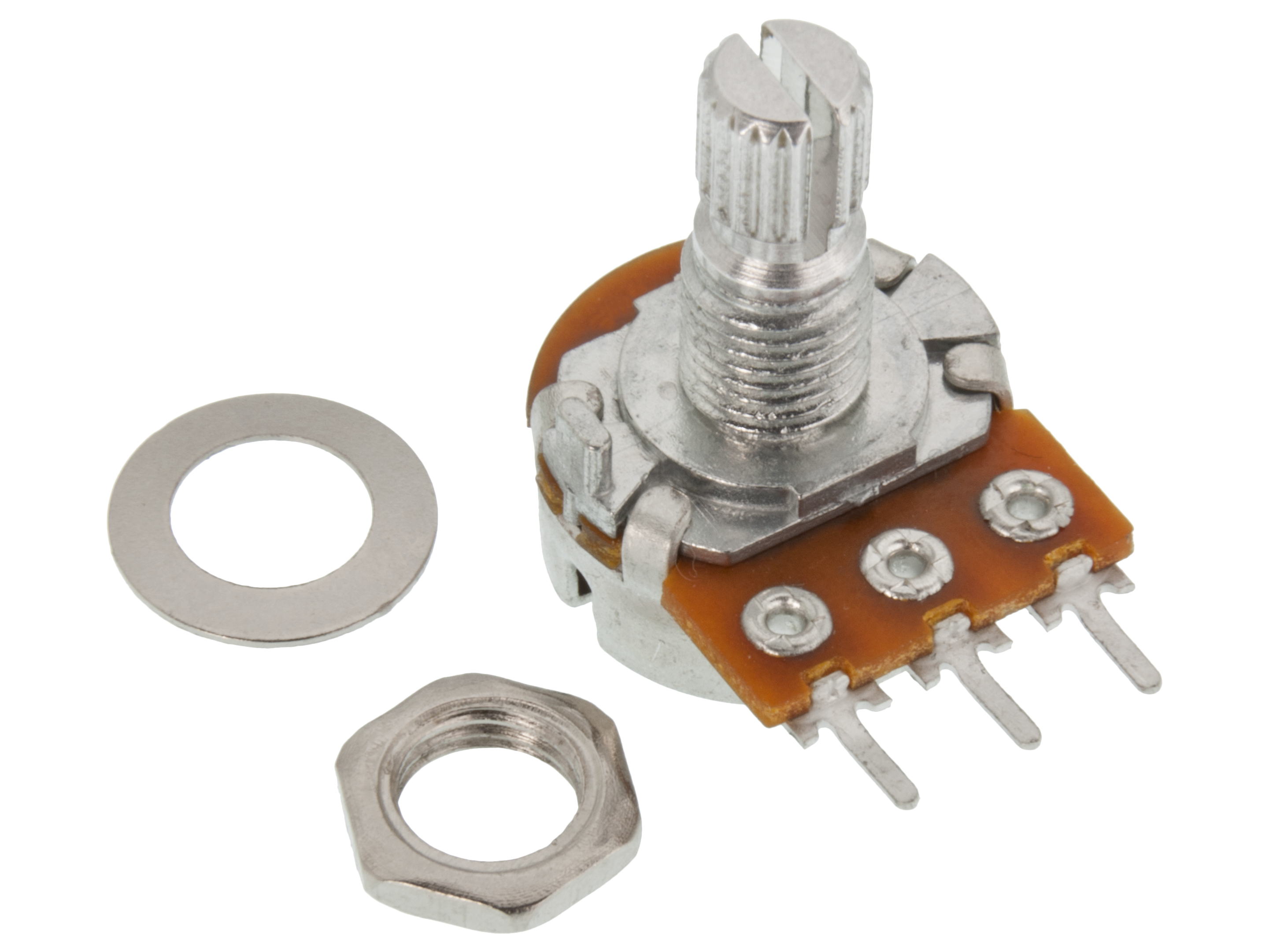

Pot 10kohm lin P160KN (B10K) - center detent

Art no: 41016732
Shop this product, Pot 10kohm lin P160KN (B10K) - center detent
price 32 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 32:-10pcs = 288:-25pcs = 600:-

Quantity discount
QuantityPrice
1 till 9
32 SEK
10 till 24
28.80 SEK
25 till
24 SEK
In stock, 13 pcs
Unit: Piece

12 000 products

Quick dispatch

Nordics and EU shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

Potentiometer with conductive plastic element. Minimal noise and long life. Through-hole solder pins for circuit board. Right-angled. Knurled 18-tooth shaft. Please note that this part has center detent. Useful for balance control, bipolar adjustment and other cases where a tactile feedback for the center position is required.

* Resistance: 10kohm (±20%)
* Taper: Linear
* Voltage rating: 200VAC
* Power rating: 0.2W
* Pitch: 5mm
* Shaft: ø6 x 15mm 18T
* Rotational angle: 300°
* Temperature range: -20 to +70°C
* Model: P160KN-1QC15B10K

Technical data

Technical data/attributes for this product
Attribute Value
Axis-length
15 mm
Gang
1x
Kurva
Lin
Power
0.2 W
Resistance
10 kΩ
Shaft
6mm 18-spår
Taper
Plast
Termination
Stift
Thread
M7x0.75
Type
Vridpot
  • SKU:

    41016732
