Product description

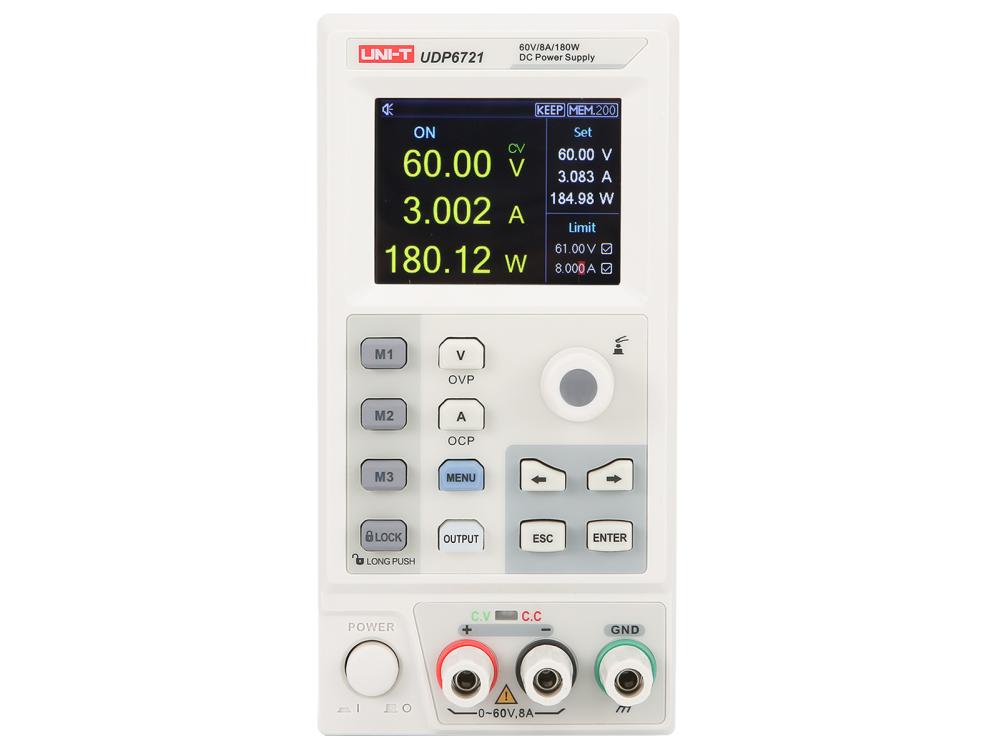

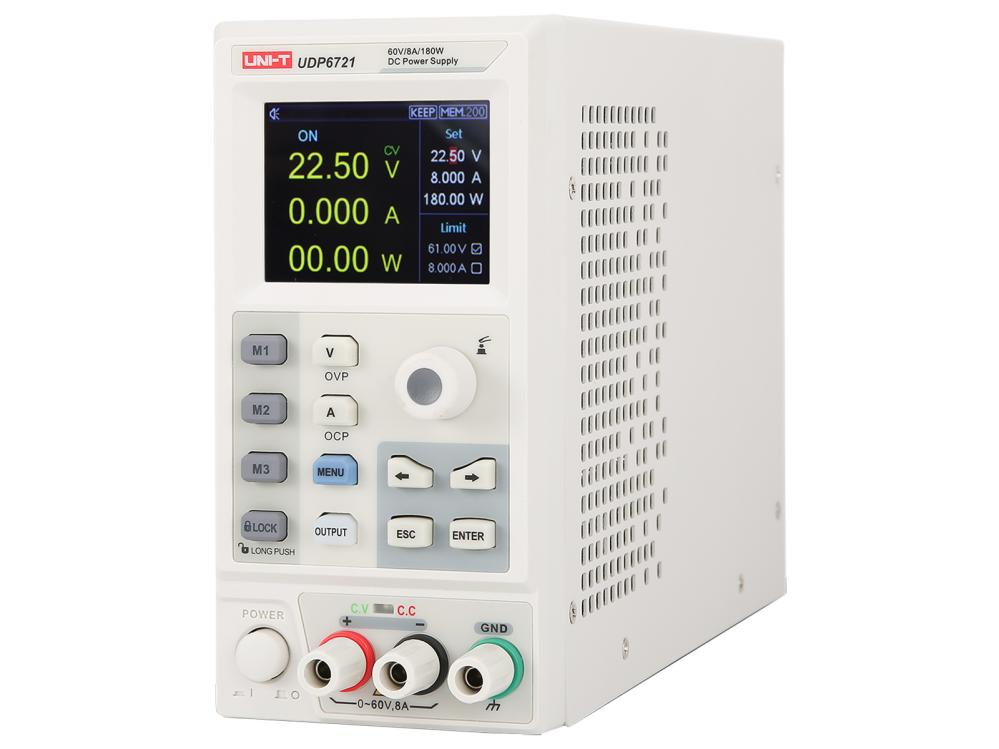

UDP6721 180W programeble bench top lab power supply with 2x200 memory presets for voltage and current. Constant voltage (CV) and constant current (CC) operation. Supplied with: Euro power cord CEE7/7 and manual.
Specifications:
Number of channels: 1
Output: Controlled by a switch (on/off)
Voltage (DC): 0-60 V
Current: 0-8 A
Output power: 180 W
Output voltage resolution: 10 mV
Output current resolution: 1 mA
Ripple and noice: <5 mV rms
Protection: overload (OPP), overvoltage (OVP), over temperature protection (OTP)
Display: TFT LCD 2,8"
Communication: RS-232 and SCPI protocol
Fan: Temperature-controlled
Dimensions: 87x174x255 mm
Weight: 2,5 kg

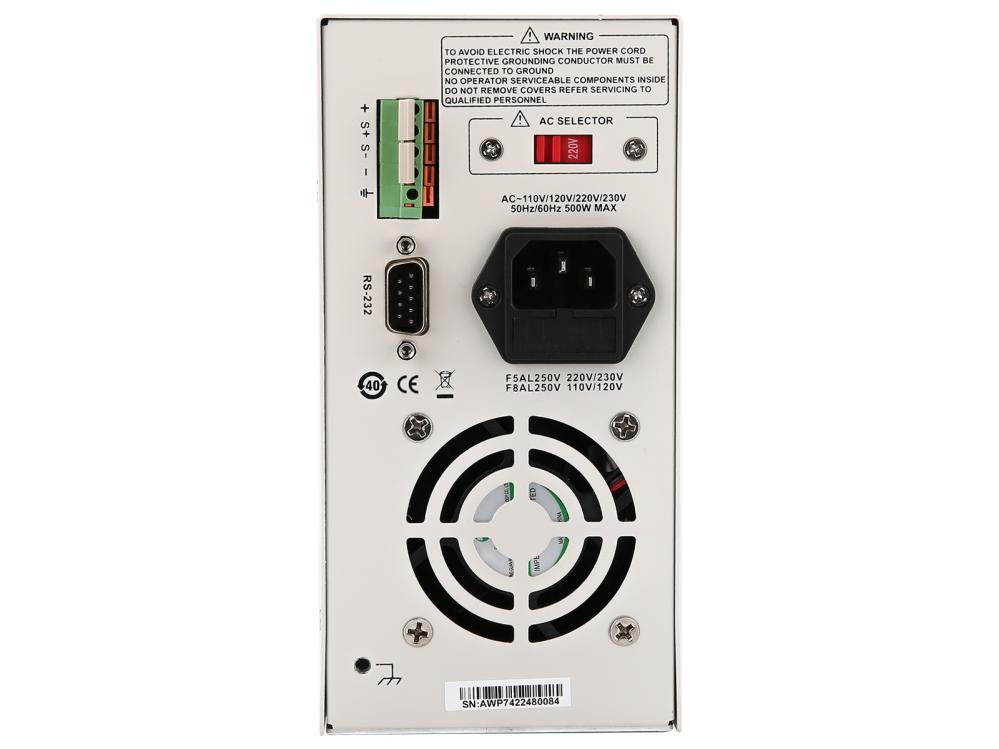

Power inlet (230V): IEC 60320 C13
