Product description

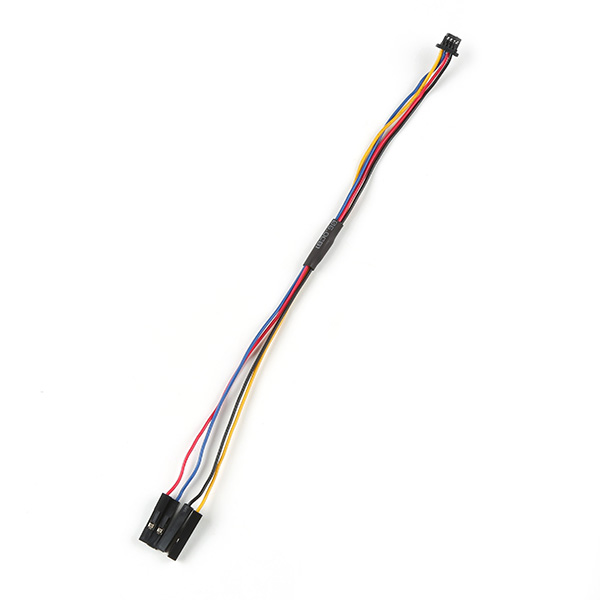

Adapter cable with Qwiic female connector to 4x Dupont sockets (female). The cable makes it easy to connect sensors and modules with Qwiic connector to the male pins of various development boards. The cable is also a great way to connect a logic analyzer to I2C.
Specifications:
- Cable type: 28AWG
- Length: 165 mm
Color coding:
- Black = GND
- Red = 3,3V
- Blue = SDA
- Yellow = SCL
W
hat is Qwiic and Stemma QT?
Qwiic and Stemma QT are the standardised I2C interface used to connect sensors and devices to a development board. The reason Qwiic exist is to make it quick and very easy to connect I2C devices to your development board. It is possible to connect I2C devices in a chain one after each other. Qwiic uses the JST-SH 1mm connector.
