Product description

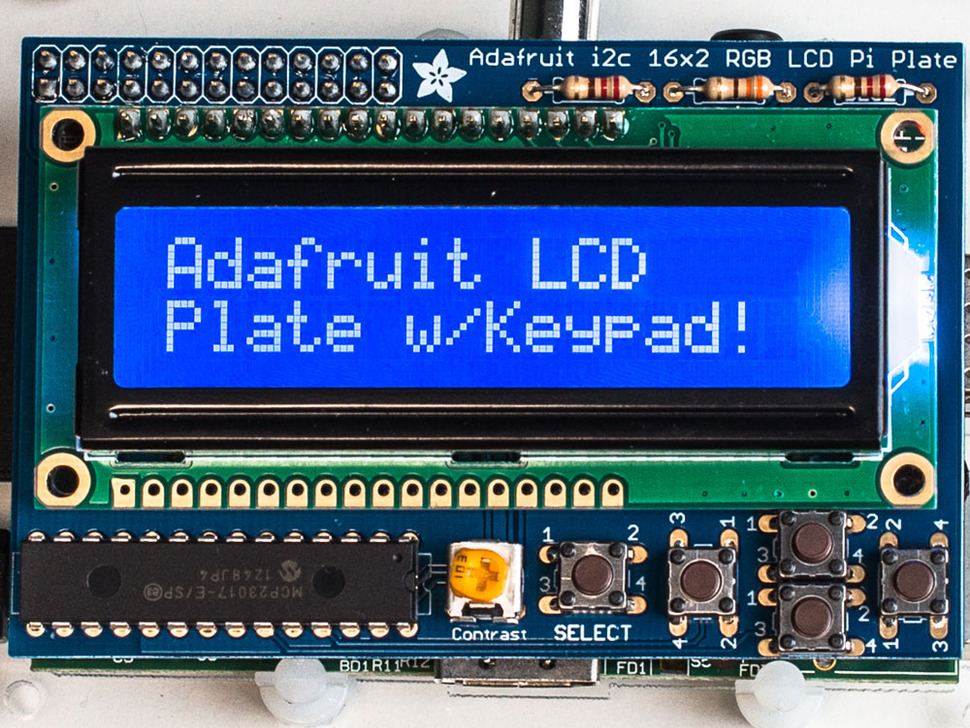

Shield for Raspberry Pi with a 16x2 character LCD with white text on blue background and five push buttons. As the display and the buttons are controlled via I2C, only two on the Raspberry are needed.
The shield mounts directly on the GPIO-header with an extra-long connector, which raises the shield above the ethernet- and USB-ports.
Please note that this product is sold as a kit and requires some assembly before use!

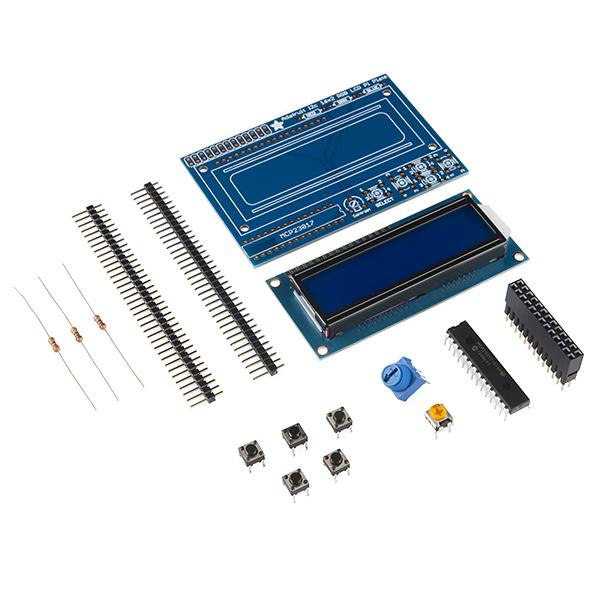

Contents:

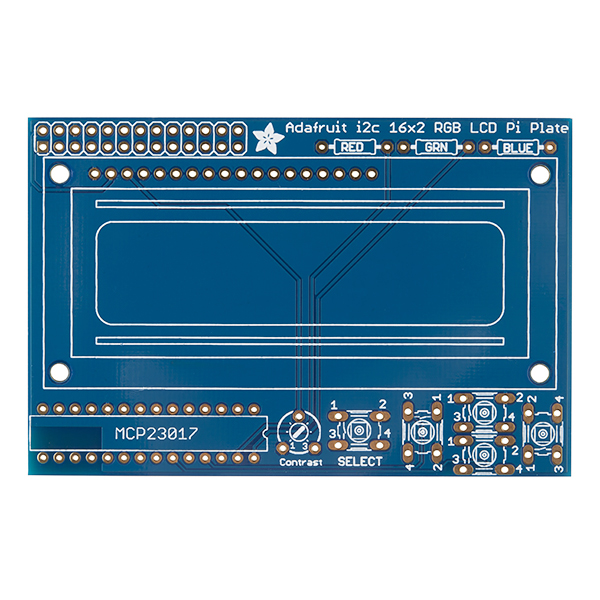

* 1x LCD Keyboard PCB
* 1x 16x2 White on Blue LCD
* 1x MCP23017 IC
* 1x Rubber Bumper
* 1x 13x2 GPIO Header - Male
* 1x 13x2 GPIO Header - Female
* 1x 10k Trim Potentiometer
* 1x 330 Ohm 1/4W 5% Resistor
* 2x 220 Ohm 1/4W 5% Resistor
* 2x 36-pin Breakaway Header - Male
* 5x Tactile Switch Pushbutton
