Product description

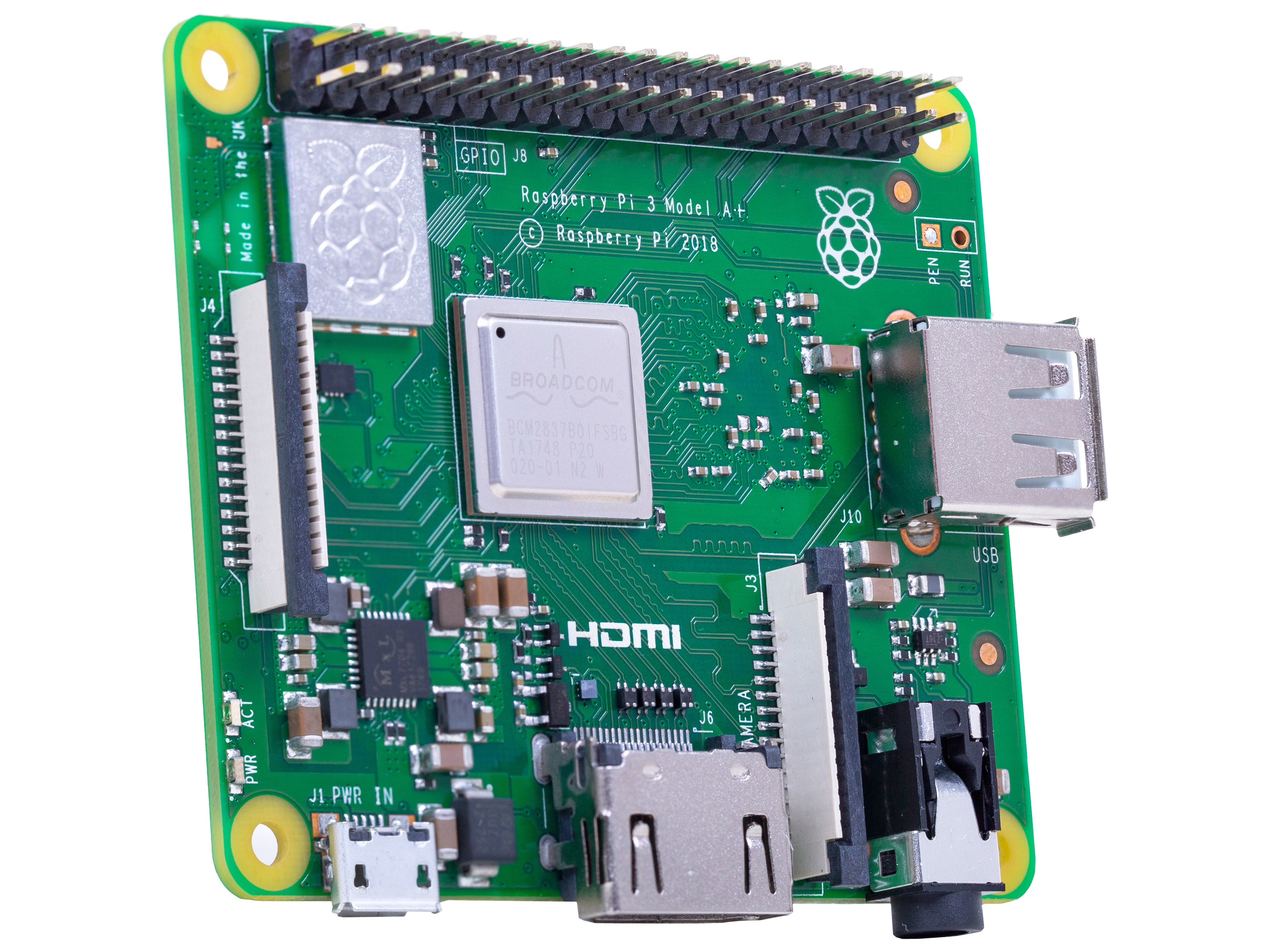

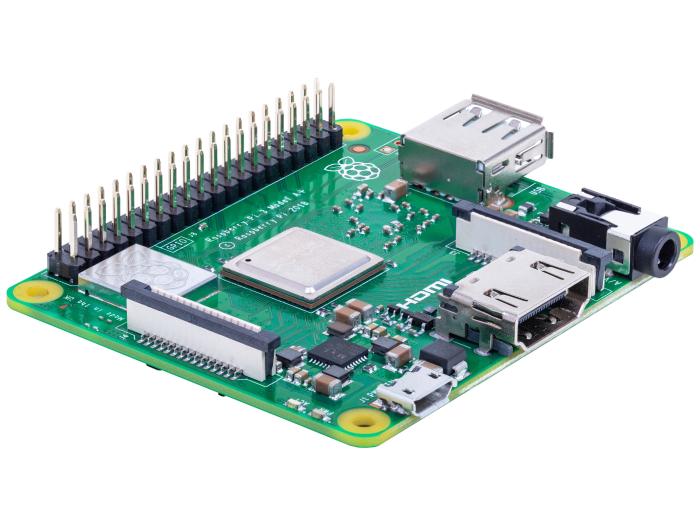

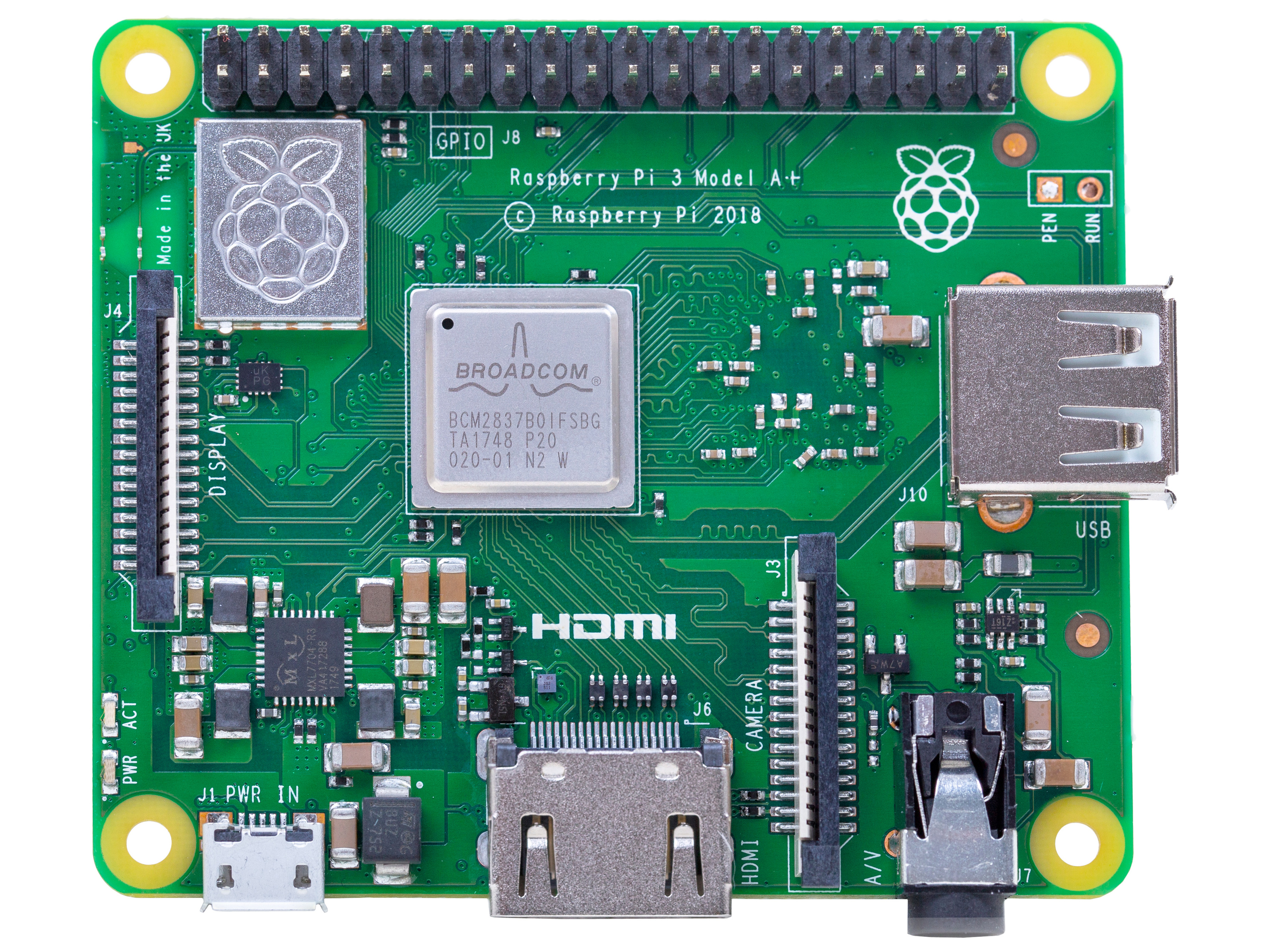

The Raspberry Pi 3 Model A+ is the latest product in the Raspberry Pi 3 range. Like the Raspberry Pi 3 Model B+, it boasts a 64-bit quad core processor running at 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.2/BLE.
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
The Raspberry Pi 3 Model A+ has the same mechanical footprint as the Raspberry Pi 1 Model A+.
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
The Raspberry Pi 3 Model A+ has the same mechanical footprint as the Raspberry Pi 1 Model A+.
- Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
- Memory: 512MB LPDDR2 SDRAM
- Connectivity: 2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN
Bluetooth 4.2/BLE - Access: Extended 40-pin GPIO header
- Video & sound: 1 × full size HDMI
MIPI DSI display port
MIPI CSI camera port
4 pole stereo output and composite video port - Multimedia: H.264, MPEG-4 decode (1080p30)
H.264 encode (1080p30)
OpenGL ES 1.1, 2.0 graphics - SD card support: Micro SD format for loading operating system and data storage
- Input power: 5 V/2.5 A DC via micro USB connector
5 V DC via GPIO header - Environment: Operating temperature, 0 - 50°C
