Product description

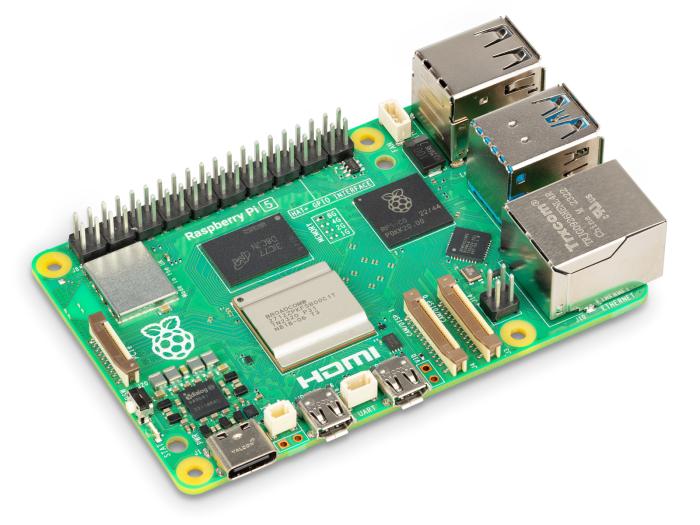

Raspberry Pi 5 4GB
Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5
delivers a 2-3× increase in CPU performance relative to Raspberry Pi 4. Alongside a
substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual
4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected
Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for
consumers, and opens the door to new applications for industrial customers.
For the first time, this is a full-size Raspberry Pi computer using silicon built in-house
at Raspberry Pi. The RP1 "southbridge" provides the bulk of the I/O capabilities for
Raspberry Pi 5, and delivers a step change in peripheral performance and functionality.
Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external
UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera
and display interfaces present on earlier models have been replaced by a pair of four-lane
1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of
up to two cameras or displays; peak SD card performance is doubled, through support for
the SDR104 high-speed mode; and for the first time the platform exposes a single-lane
PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
Processor:
* Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache
Features:
* VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
* Dual 4Kp60 HDMI® display output with HDR support
* 4Kp60 HEVC decoder
* LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available at launch)
* Dual-band 802.11ac Wi-Fi®
* Bluetooth 5.0 / Bluetooth Low Energy (BLE)
* microSD card slot, with support for high-speed SDR104 mode
* 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
* 2 × USB 2.0 ports
* Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
* 2 × 4-lane MIPI camera/display transceivers
* PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
* 5V/5A DC power via USB-C, with Power Delivery support
* Raspberry Pi standard 40-pin header
* Real-time clock (RTC), powered from external battery
* Power button
Production lifetime:
* Raspberry Pi 5 will remain in production until at least January 2035
