Product description

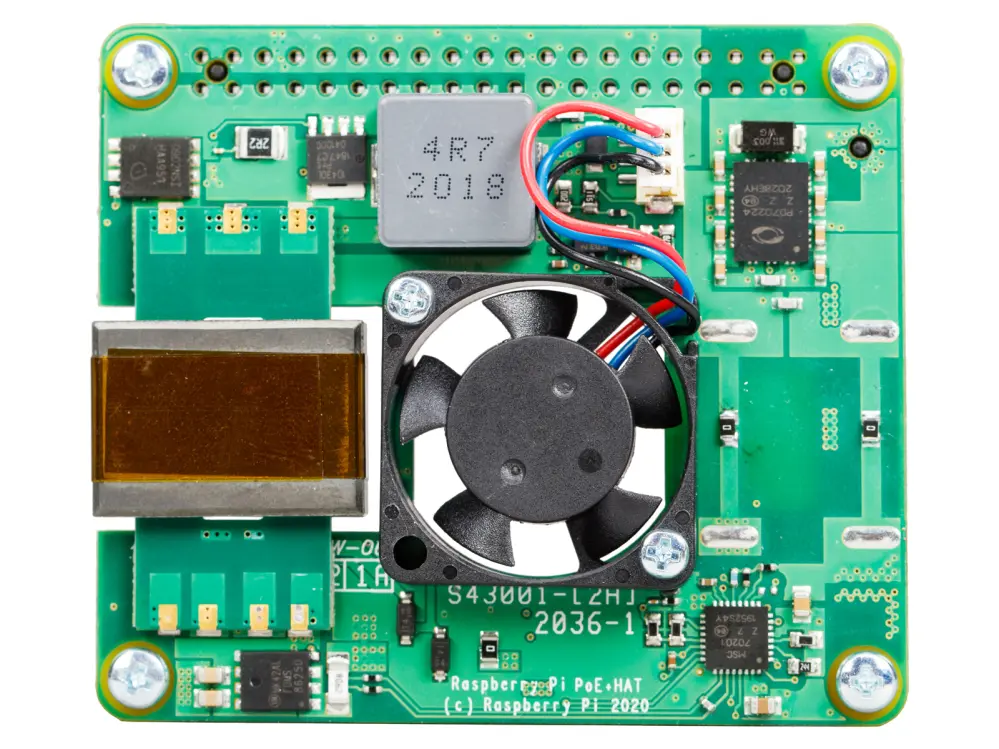

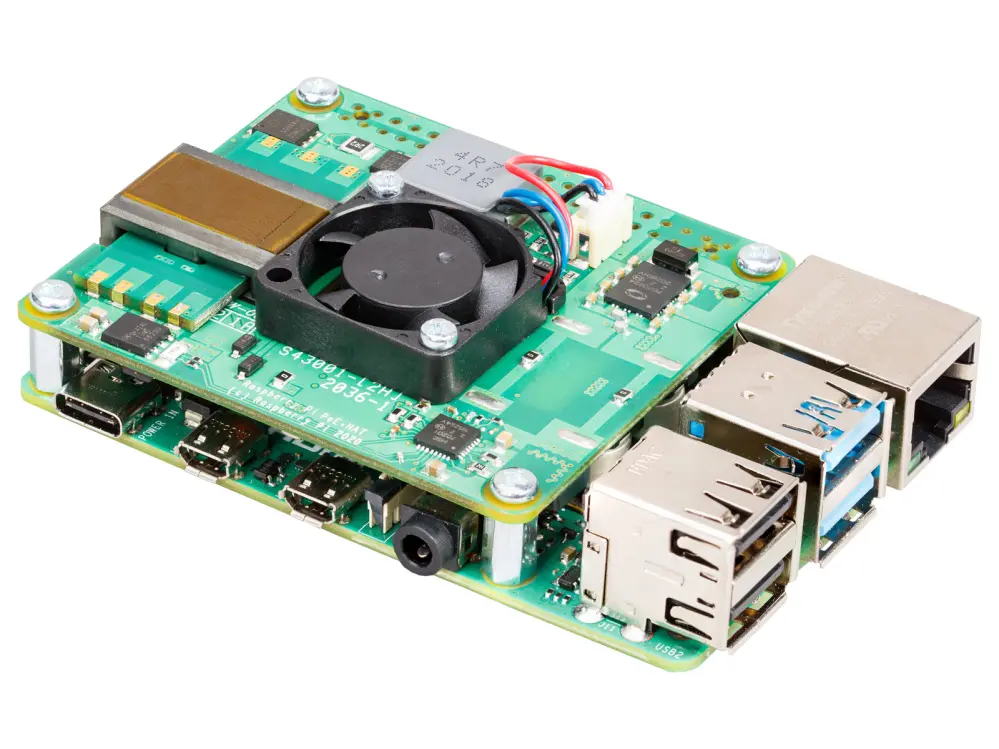

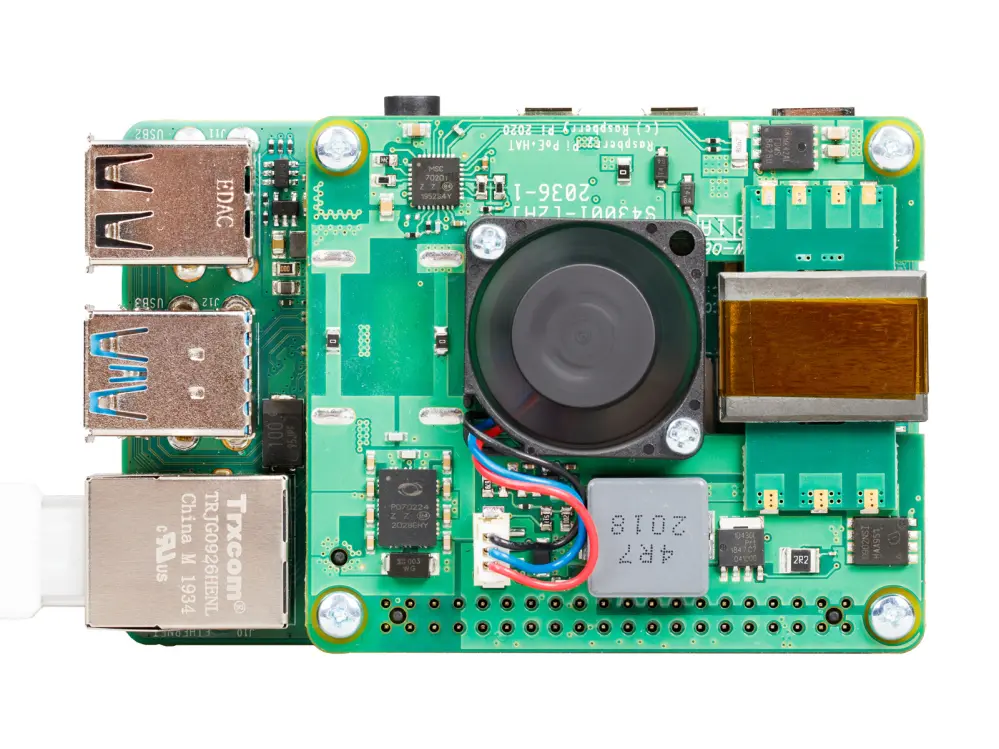

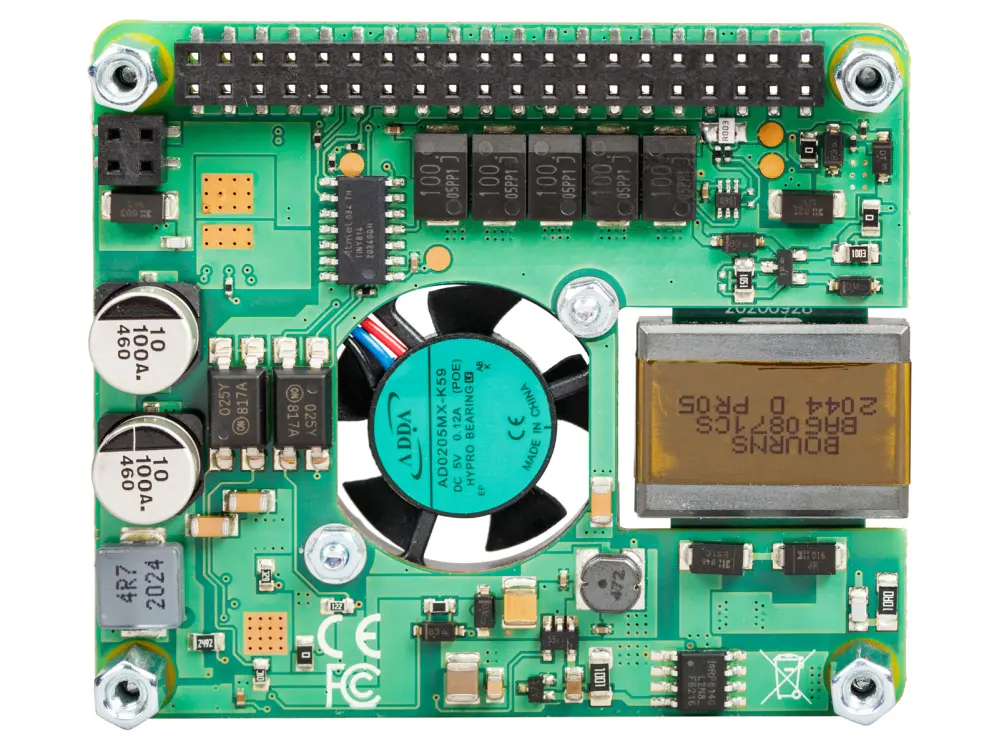

The Raspberry Pi PoE+ HAT is only intended to be used with the Raspberry Pi 3B+ or Raspberry Pi 4 (not Raspberry Pi 5). It is used to power the Raspberry Pi via PoE. The HAT includes a fan that also provides cooling to the Raspberry Pi processor. Install the included spacers before mounting the HAT on the Raspberry Pi.
IMPORTANT: Do not connect an external power supply to the Raspberry Pi when the PoE+ HAT is mounted. This may damage your PoE+ HAT and Raspberry Pi.
The maximum current: 4A. This is enough power for a hard working Raspberry Pi 4 with peripherals / USB devices.
* Standard: IEEE 802.3at-2009 (PoE+)
* Revision: R2
* Input Voltage: 37-57 VDC, Class 4
* Output voltage / current / power: 5V / 4A / 20W
* Cooling: 25x25mm fan
* Ambient temperature: 0°C to +50°C
* Compatibility: Raspberry Pi 3B+ and 4
* Production lifetime: The product will be manufactured until Jan 2027.
