Product description

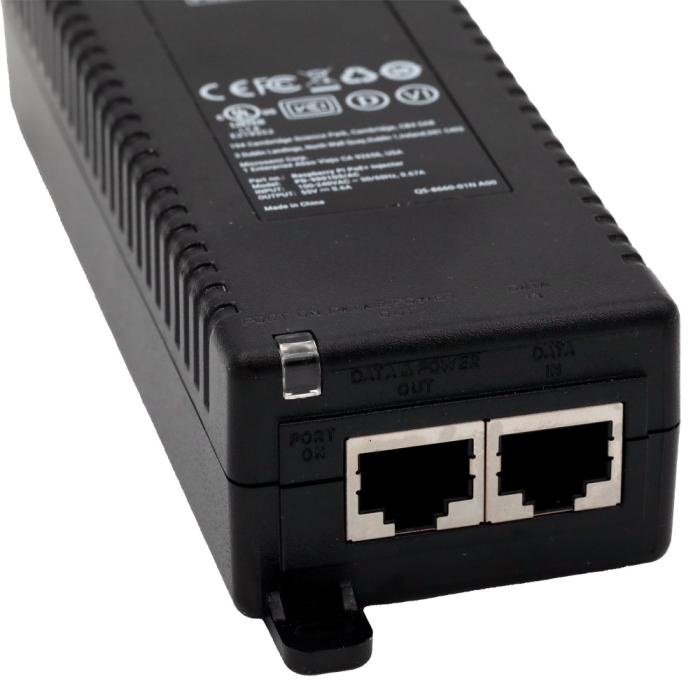

Injector with support for PoE+ and Gigabit. Used when the network switch do not have PoE support. Powers access points, cameras, Raspberry Pi with PoE HAT, etc., via network cable. Supports both PoE and PoE+. Very easy installation, requires no configuration or drivers. Includes mounting brackets for wall installation. 230V power cable (IEC 320 C13) not included. Recommended 230V cables (sold separately): 41000485 or 41022670.
Specifications:
- Standard: IEEE 802.3af (backward compatible with IEEE 802.3af)
- Supports: PoE and PoE+
- Base-T speed: 10/100/1000
- Max network cable length: 100 m
- Interface: 2x RJ45 Gigabit
- Output (max): 55 VDC, 0.67A
- Dimensions: 140 x 51.8 x 33.5 mm (159x51.8x33.5 mm incl. mounting brackets)
