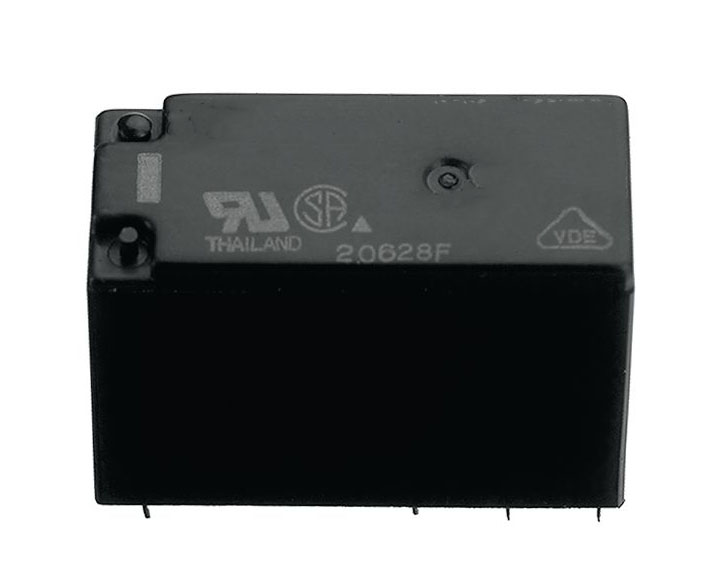

Relay JW1FSN 1-pole SPDT 12V

1-pole relay for printed circuit board (PCB) mounting with a changeover contact.

Coil characteristics:

• Voltage: 12 VDC (min 8.4 VDC)
• Power: 530 mW
• Current: 44 mA
• Resistance: 240 ohm

Contact characteristics:

• Number of poles: 1
• Contact configuration: SPDT
• Rated current AC (max): 10 A
• Rated voltage AC (max): 250 V
• Rated current DC (max): 10 A
• Rated DC voltage (max): 30 V
• Contact material: AgNi

Other:

• Dimensions: 28.6x12.8x20 mm
• Mounting: PCB
• Operating temperature: -40 to 85°C
• Standards: CQC, CSA, FI, S, UL Listed, VDE
