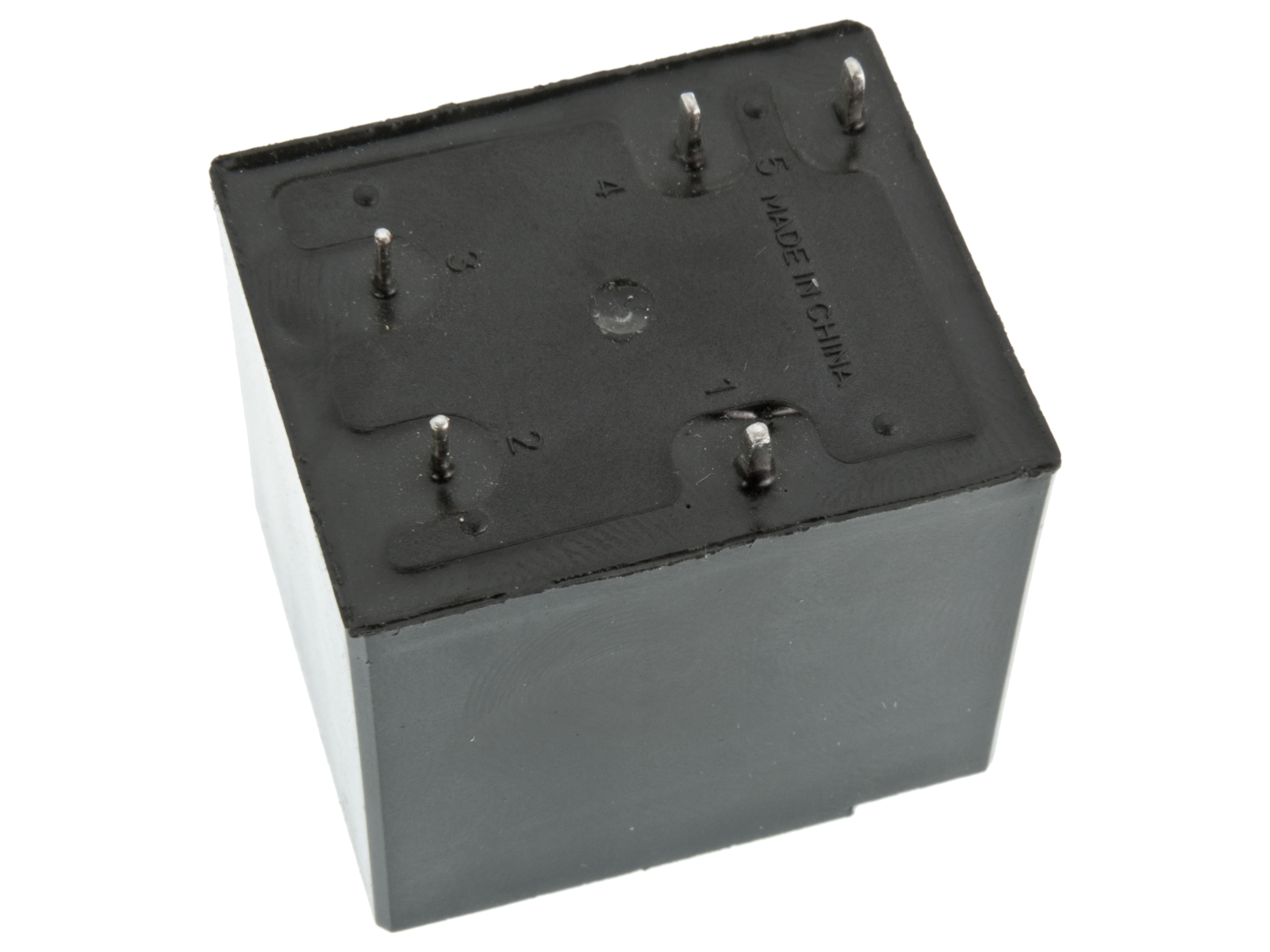

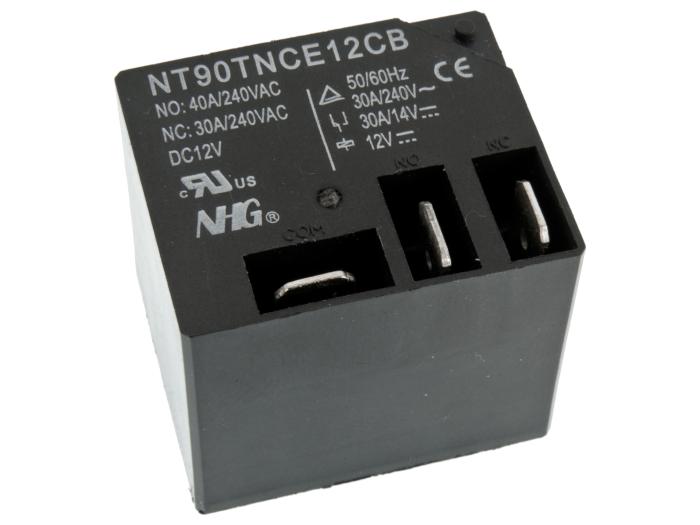

Relay for PCB mounting. The relay contact can be connected either from the PCB side or with 6.3mm blade connectors (located on the top of the relay).
Coil voltage: 12V
Coil resistance: 160 ohm
Coil power: 0.9W
Contacts: 1-pol växlande (SPDT)
Contact max current (max): 30A
Contact max voltage: 110 VDC or 240 VAC
Contact resistance: <30mOhm
| Attribute | Value |
|---|---|
Coil-current |
0,075
|
Coil-resistance |
160 Ω
|
Coil-voltage |
12 V
|
Current-ac |
30 A
|
Current-dc |
40 A
|
Poles |
1
|
Rohs |
RoHS-kompatibel
|
Throw |
Växlande
|
Voltage-ac |
250 V
|
Voltage-dc |
110 V
|
