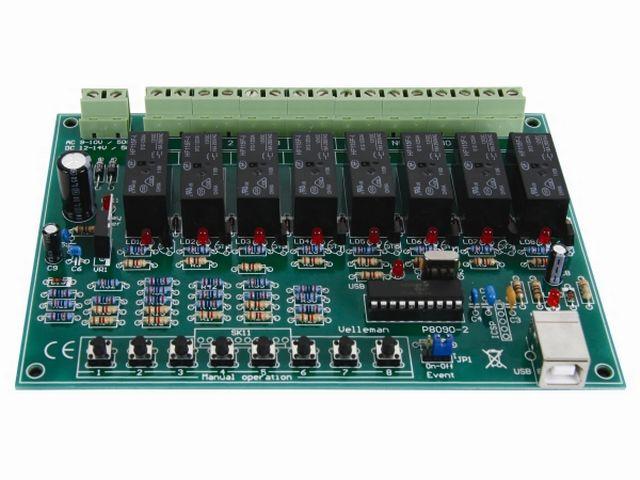

Relay board 8ch USB

Eight relay channels controlled by your computer!
Use your computer USB port to connect to the outside world
Connect up to 16A to each of the high power relays.
Board space for extra VDR noise suppressors is provided and on board push buttons can be used to test/operate all the relays.

A dll for own software development can be downloaded from our web site.
Test software completes the package.
Features

USB-controlled relay card
manual operation for toggle, momentary or timer operation (selectable through software)
timer settings up to 18 hours (DLL function)
optional open collector connectivity (push button simulation
DLL for own software development (download only)
event-driven and open protocol
two way PC communication (USB Event return)
optional VDR (type VDR300) transient suppression for use with inductive loads
LED indication for power and relay action
minimum system requirements:
PC running USB compatible Windows version
USB1.1 and USB2.0 full speed compatible
internet connection for software download
optional DIN rail enclosure: B8006 (Note: cut out the USB connector)
Specifications

power supply for relays: 9-10Vac or 12 to 14Vdc (500mA)
8 high-power relays: 16A each (resistive load)
dimensions: 160 x 107 x 30mm / 6.3 x 4.2 x 1.2"
