Product description
Description

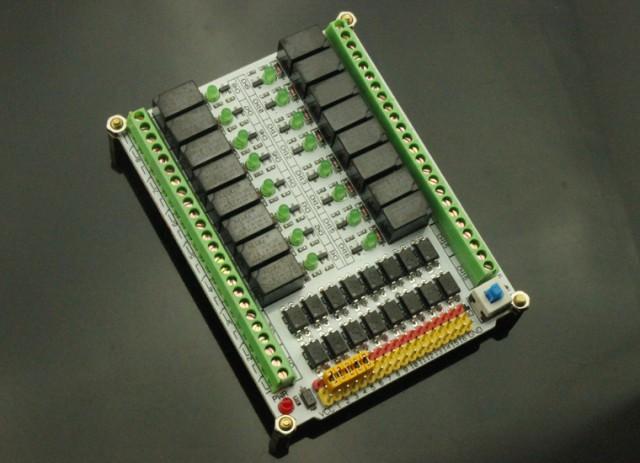

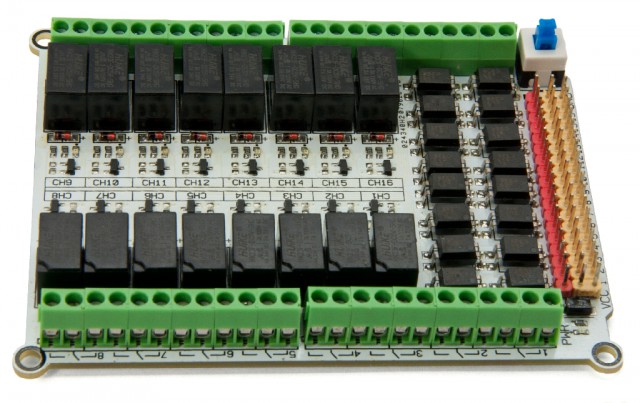

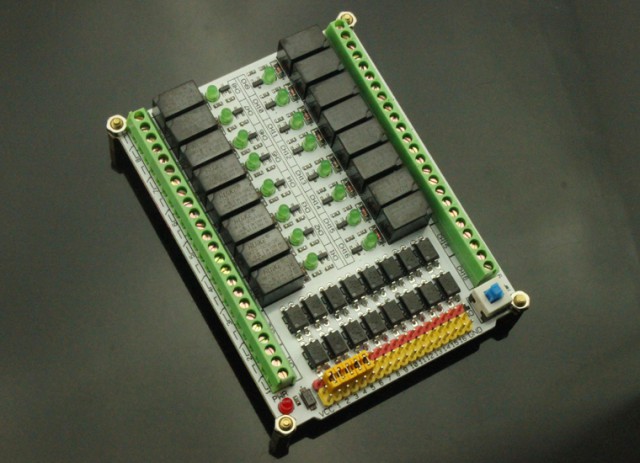

This is a 16 channel Mini-relay module. It can be used to control the lighting, electrical and other equipments. The modular design makes it easy to expand with the Arduino board or other MCU board PIC, ARM and MSP430. The Relay output state by a light-emitting diode.

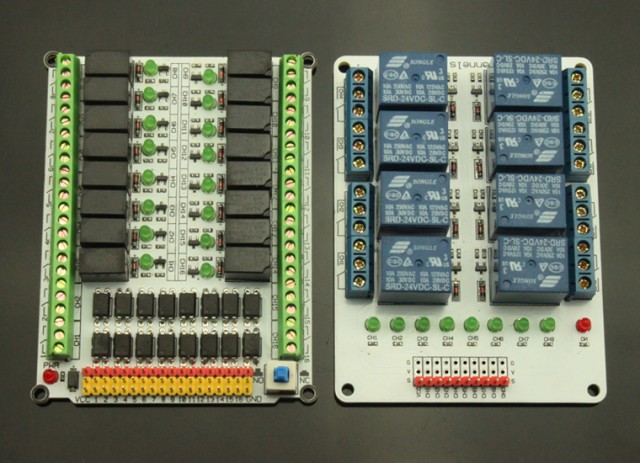

This module was used HUIKE mini-relay and have ultra-small volume(be close to 8 channel Relay module). Maximum switching voltage: 120VAC 24VDC and Maximum switching current 2A. There are optocoupler as optical isolation and protect circuit security.
At same time, there has elec-blocks socket, and you can use shunt cap direct control the Relay module without MCU.
Specification
Drive current: 20mA
Drive voltage: 5V / 12V
Optocoupler,more secure
LED Power supply indicator, Channel LED indicator
Control signal: 5V/12V TTL level
Maximum switching voltage: 150VAC 24VDC
Maximum switching current: 2A
PCB Color:White
Positioning holes:3mm

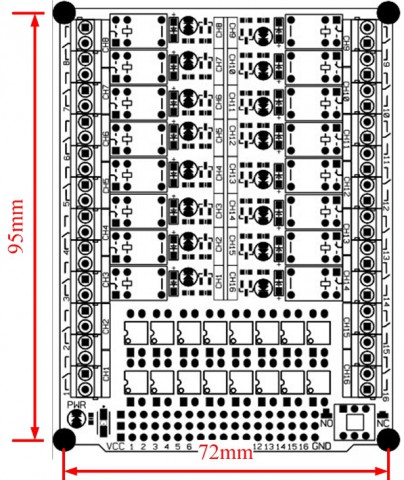

Dimension:85mm*72mm
