Product description

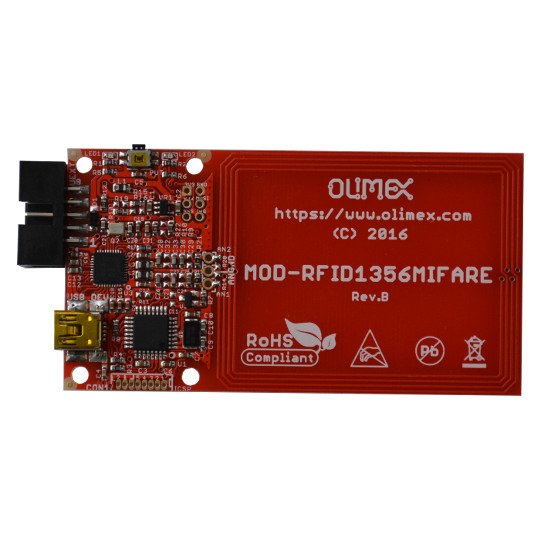

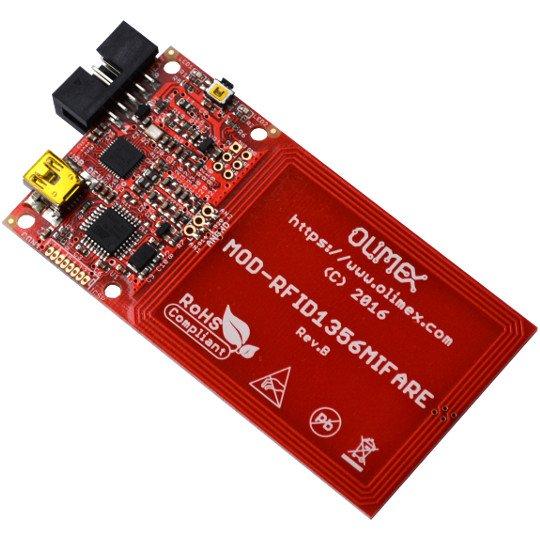

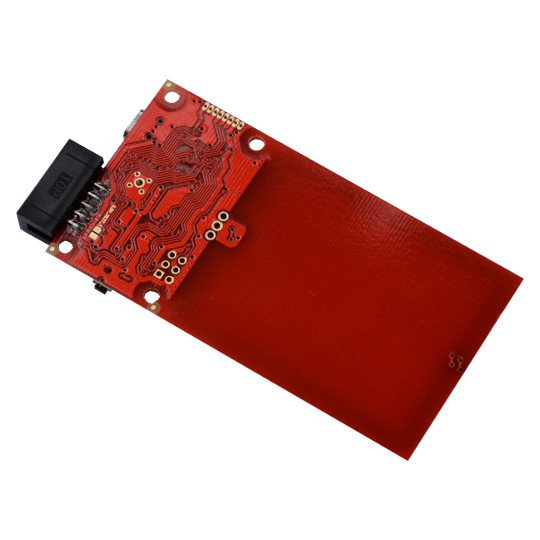

MOD-RFID1356MIFARE can read and write NFC / Mifare RFID tags operating at 13.56Mhz. MOD-RFID1356MIFARE uses NXP PN532 to read and write NFC / Mifare RFID cards. The board design features an additional second microcontroller to expands the ways to communicate with the host device - it adds 3 more possibilities: USB HID keyboard, USB CDC serial communication and UART serial at CMOS levels for boards with UEXT.
FEATURES
Easy to integrate with any computer or board with USB host
Emulates HID keyboard
Emulates USB CDC serial port
Connects to any board with UART or UEXT connector
Dimensions: (90 x 47)mm ~ (3.54 x 1.85)"
FEATURES
Easy to integrate with any computer or board with USB host
Emulates HID keyboard
Emulates USB CDC serial port
Connects to any board with UART or UEXT connector
Dimensions: (90 x 47)mm ~ (3.54 x 1.85)"
