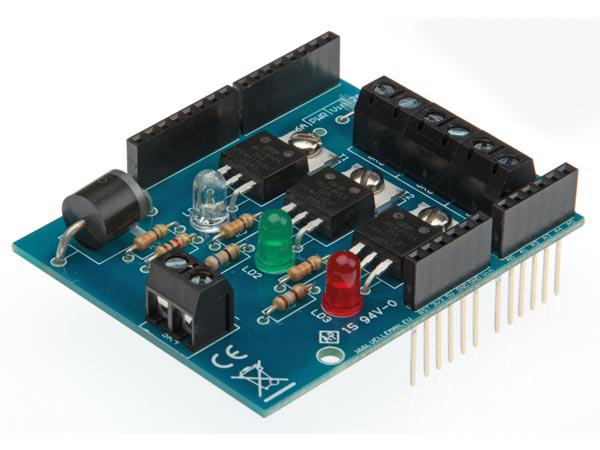

RGB Shield (assembled)

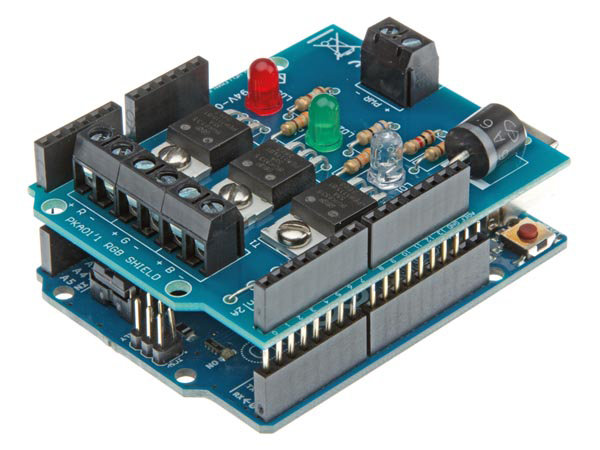

RGB-shield for controlling / dimming three channels of LEDs (1 x RGB or 3 single channels) with Arduino UNO. The shield can drive up to 2A from the internal power of the Arduino (Vin) and up to 6A with external power supply. The shield also has headers on the top of the card for stacking several shields on top of eachother.
Specifications:
2 A load via Vin or 6 A load via external power
12 or 24 V external power supply
Uses pin 3, 5, 6 PWM on an Arduino UNO board
Dimensions:
68 x 53mm / 2.67 x 2.08"

Also available as kit: art.no 41011869
