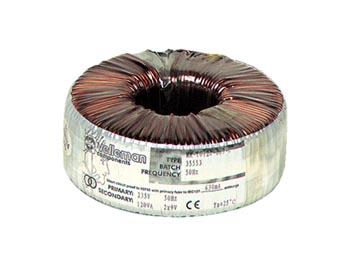

Toroid Transformer 225VA 2 x 30V / 2 x 3.75A

Toroidal transformer with two separate secondary windings that can be connected in series for a bipolar output (eg. ±12V) or to get a twice as high voltage.
The windings can also be connected in parallel to double the current output.

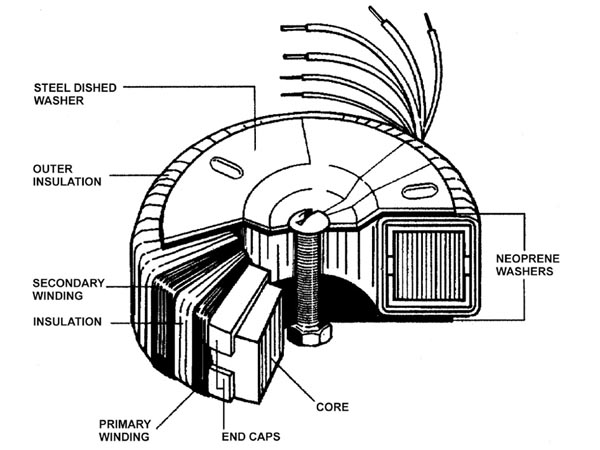

The transformer mounts to a chassis with bolt and washer. M8 bolt, M8 nut, metal washer and neoprene washer are included.

* Primary: 230VAC / 50Hz [black - black]
* Secondary: 2 x 30V / 2 x 3.75A [*red - yellow / *blue - grey] (* = start)
* Connections: 200mm AWG18
* Insulation: Class A, 105°C / 500VDC
* Fuse: 130°C
* Weight: 2.7Kg
* Dimensions: ø130 x 56mm
* Mounting: M8 x 70mm (metal washer: ø92mm, rubber washer: ø96mm)
