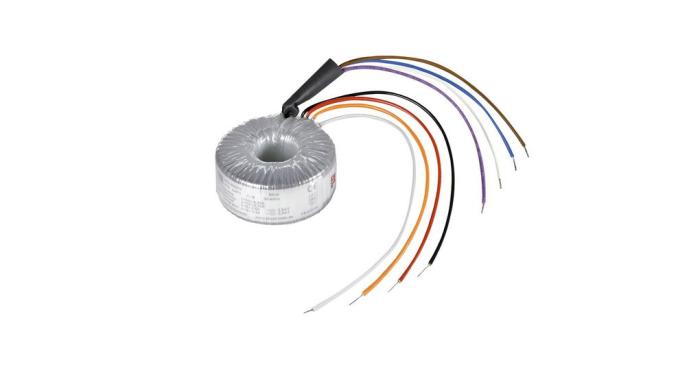

Toroid Transformer 30VA 2 x 24V / 2 x 0.63A

Toroidal transformer with two separate secondary windings that can be connected in series for a bipolar output (eg. ±12V) or to get a twice as high voltage.
The windings can also be connected in parallel to double the current output.

The transformer mounts to a chassis with bolt and washer. M6 bolt and M6 nut are are included.

* Primary: 230VAC / 50Hz [black - black]
* Secondary: 2 x 24V / 2 x 0.63A [*red - yellow / *blue - grey] (* = start)
* Connections: 200mm AWG18
* Insulation: Class A, 105°C / 500VDC
* Weight: 0.5Kg
* Dimensions: ø71 x 31mm
* Mounting: M4
