Product description

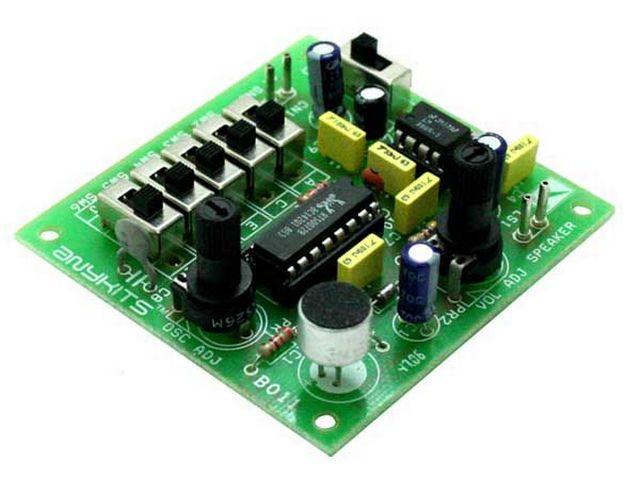

Voice Changer kit can be used to transpose or distort one's voice by encoding the sound appearing at the Microphone input. This kit is built around AP8072 IC.
* Supply input : 6 VDC @ 200 mA
* Output : Speaker, 8 Ohm / 0.5 W
* Audio amplifier type LM386 with volume control preset
* Slide switch selectable tone frequency for encoding sound
* 4 Tones to choose
* Built in noise reduction circuit for reducing environment noise
* ON/OFF slide switch for power supply
* Terminal pins for supply voltage and speaker output
* Four mounting holes of 3.2 mm each
* PCB dimensions 61 mm x 65 mm
