Product description

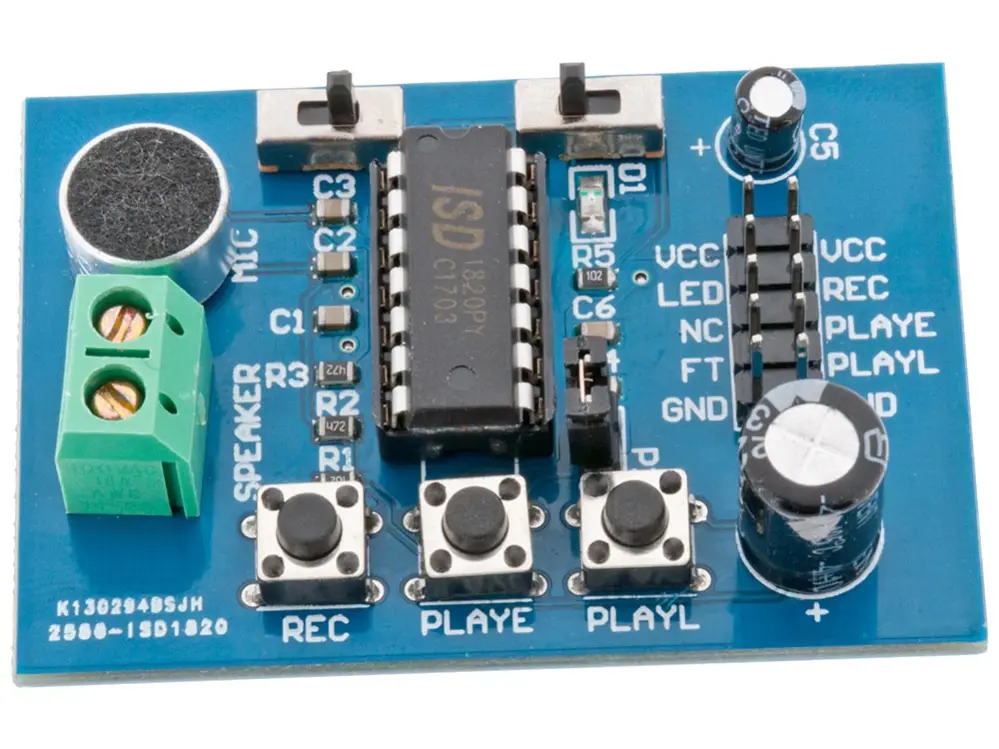

Audio module for recording and playback of audio. Designed to be integrated into electronic projects. The module can record sound or voice for up to 20 seconds using the built-in microphone. The recorded sound is stored in the flash memory and is preserved even when the power is turned off. The module allows you to easily make recordings and play them back using the control buttons. It can be connected to an Arduino for more advanced control. Playback can be done, either once or looped.
- Allows up to 20 seconds of recording clear audio with a simple push of a button
- Equipped with flash memory that preserves recordings even during power outages
- Easy to integrate into larger projects thanks to connectivity for external microcontroller
Specifications:
- Dimensions: 54.4 x 38mm
- Supply voltage: 2.4 - 5.5VDC
- Output: 0.5W / 8ohm
- Memory: 20 seconds
- IC: ISD1820
- Output for loudspeakers
