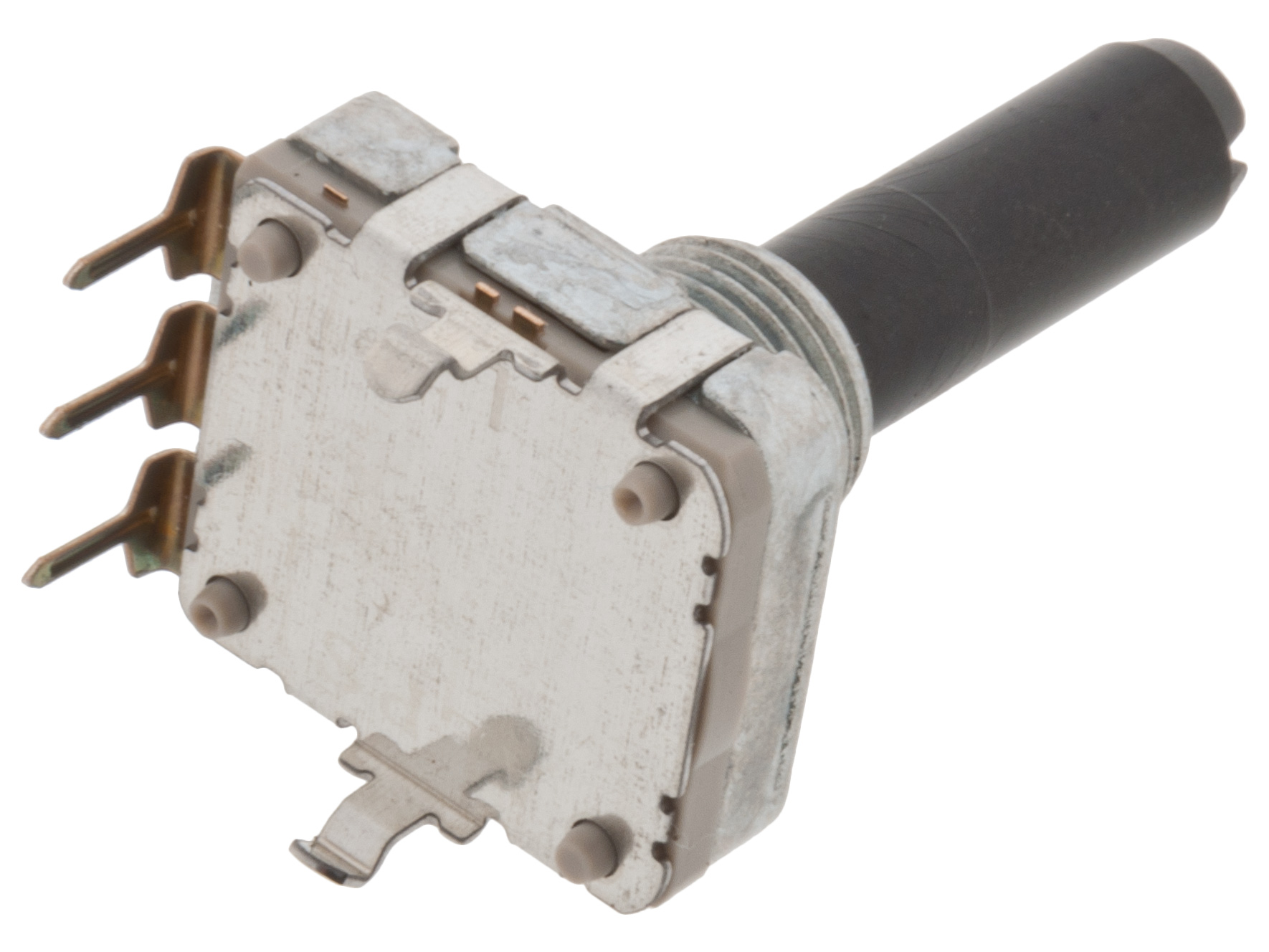

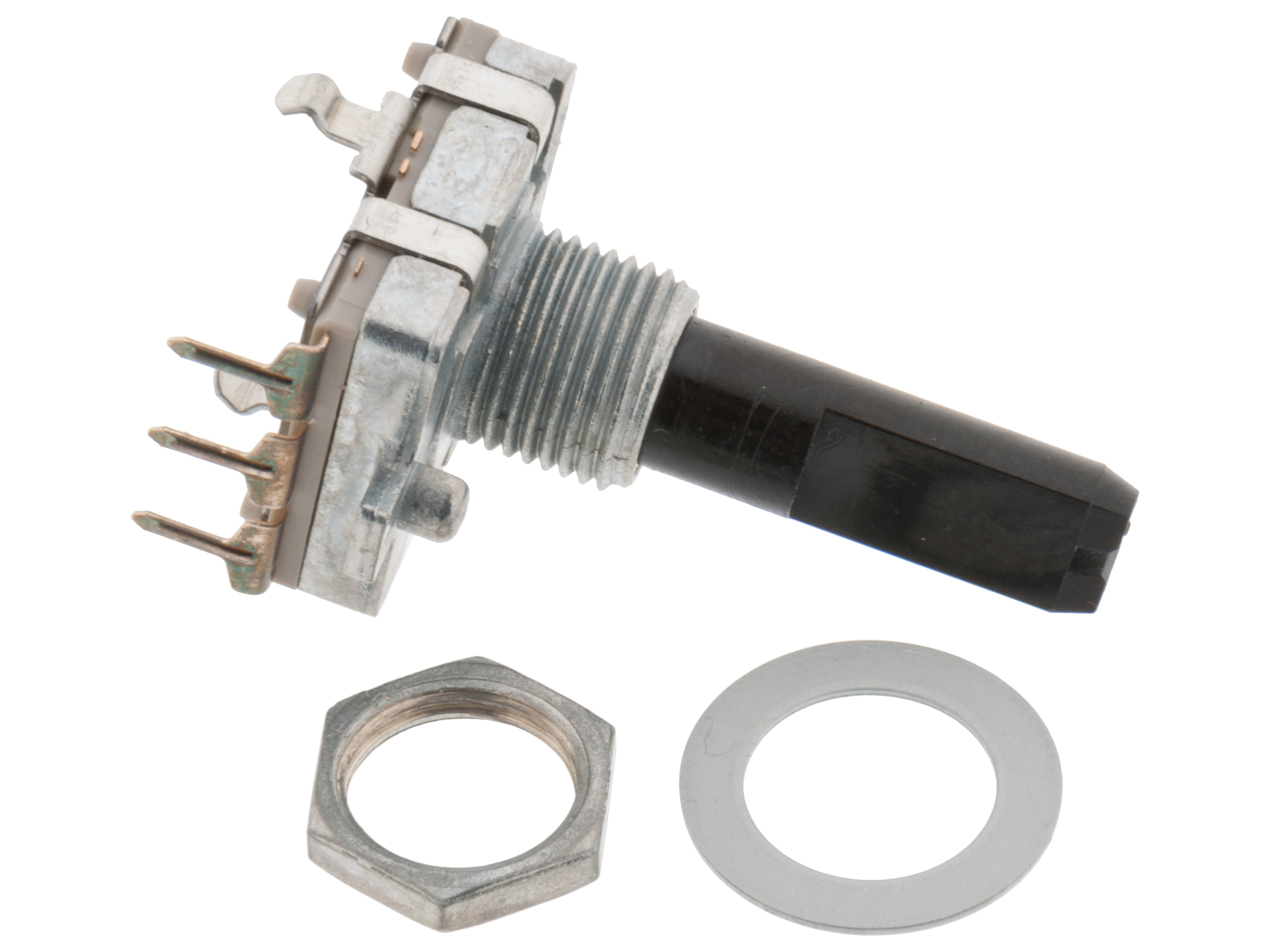

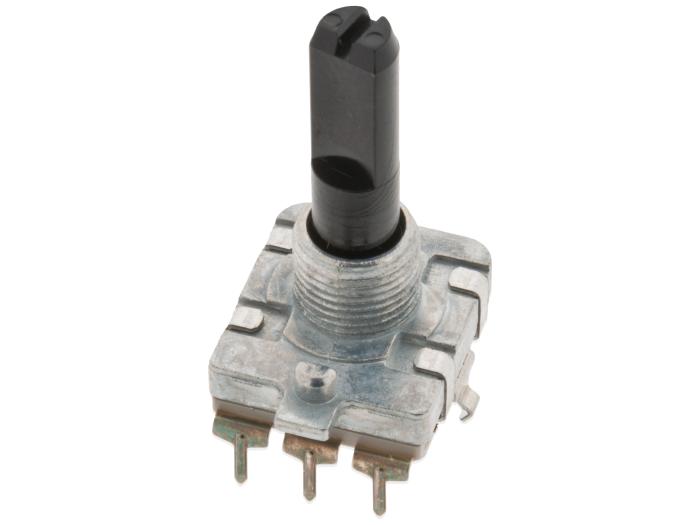

Rotary encoder 24ppr vertical (24 detents)

Rotational encoder for standing (vertical) circuit board mounting.
The encoder has 24 discrete positions and gives 24 pulses per revolution.

Mounting hole: 9mm
Length (shaft): 25mm
Width: 16mm
Height: 17.5mm

Specifications:
24 pulses/rotation
type: PC board (vertical)
material: injection-moulded plastic
output code phase difference angle: phase difference 2 signals (54° ± 30°)
rotation angle: 360°
rotational life: 100000
axis: D-shaft
