Product description

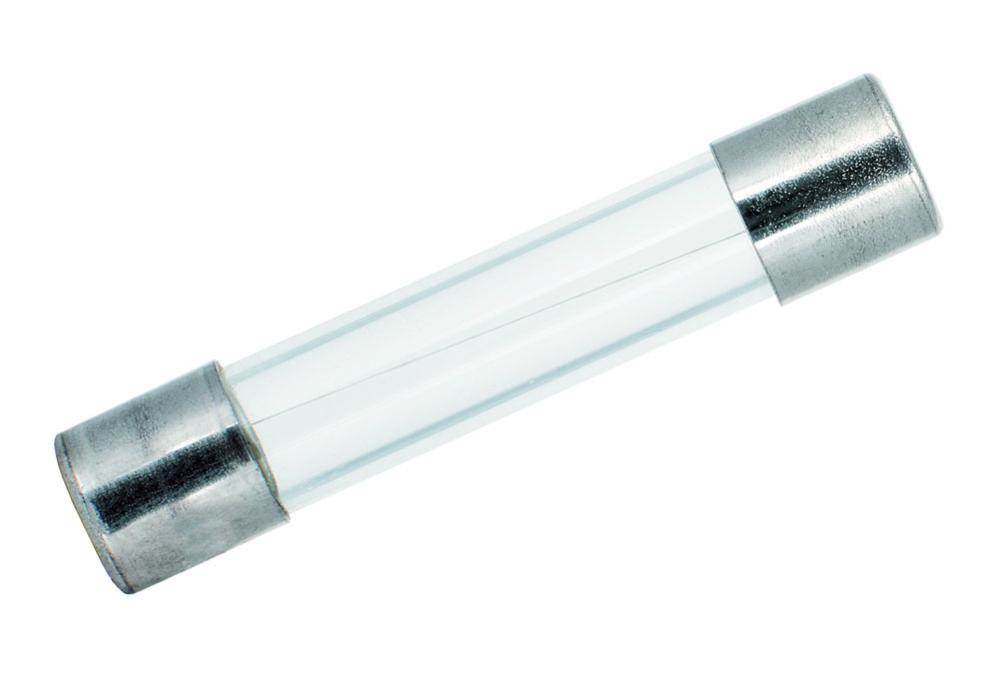

6.3x32 mm (1/4” x 1-1/4”) lead-free glass cartridge tube. Nickel plated end caps. For use with 250VAC (max). Also used in 12/24 VDC power systems. Referred to as AGC, 3AG or SFE20 in the automotive industry.
Specifications:
- Rated current: 1.25A
- Rated voltage (AC): 250V
- Fuse characteristics: Slow Blow / Time Lag (T)
- Diameter: ø6.35 mm
- Length: 35 mm
- Type of fuse: Glass cartridge tube
- Breaking capacity @ 250 VAC: 100A
- Approval: S, VDE, CE, RoHS
- Standard: IEC 60127-2
