Product description

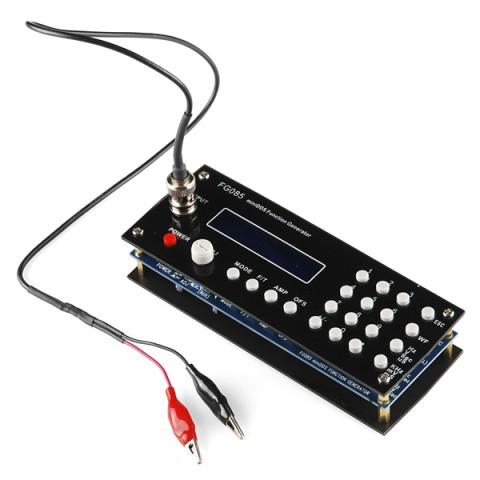

Function generators are useful in a ton of applications from RF to embedded logic. They're not usually super cheap though. Good news: we found a kit. The FG085 MiniDDS Function Generator is a 'some assembly required' kit that becomes a flexible, functional and easy to use frequency generator. Just solder the through-hole parts in place, attach the face/base plates and before you know it you'll be generating sinewaves at frequencies up to 200KHz! But that's only one of the tricks this thing can do. Three different operating modes allow the FG085 to generate 7 different types of continuous waveform as well as servo test and control signals in micro-second resolution.
The LCD screen and menu system make this an easy instrument to operate. Frequency, amplitude and offsets can all be set with the number pad and incrementally adjusted with the rotary encoder. The incremental step size can even be adjusted to make sweeps over a wide range easier to handle. The FG805 can generate a peak to peak amplitude up to 10V with an offset range from -5 to +5VDC. It can even be used as an adjustable DC voltage source by setting the amplitude to 0.
Please note! This kit does not include power supply. Suitable power supplies are listed under "related products".
Includes:
FG085 miniDDS Function Generator PCB with SMT parts installed
Acrylic Faceplate and Baseplate
Alphanumeric LCD and Headers
Through-hole Parts Bag
Quickstart Assembly Guide
Output cable (BNC + clips)
Features:
Generates continuous waveforms of Sine, Square, Triangle, Ramp (up and down), and Staircase (up and down)
Generates servo test/control signals in micro-second resolution with user programmable pulse width, amplitude, and cycle
Set the frequency (or period), amplitude, and offset with number pad - quick and straight-forward
Frequency (period), amplitude, and offset can be incrementally adjusted with rotary encoder
Settings are memorized after power down
Can be used as an adjustable DC voltage source by setting amplitude to 0
Frequency range: 0 - 200KHz (Sine)
Frequency resolution: 1Hz
Period resolution: 1ms
Amplitude range: 0 - 10V peak-to-peak
Offset range: -5V - +5V
Memory depth: 256 bytes
Sample rate: 2.5Msps
Output impedance: 50 ohm
Current consumption: < 150mA (without loading)
Dimension: 155 X 55 X 30 mm
Net weight: 100 gram
The LCD screen and menu system make this an easy instrument to operate. Frequency, amplitude and offsets can all be set with the number pad and incrementally adjusted with the rotary encoder. The incremental step size can even be adjusted to make sweeps over a wide range easier to handle. The FG805 can generate a peak to peak amplitude up to 10V with an offset range from -5 to +5VDC. It can even be used as an adjustable DC voltage source by setting the amplitude to 0.
Please note! This kit does not include power supply. Suitable power supplies are listed under "related products".
Includes:
FG085 miniDDS Function Generator PCB with SMT parts installed
Acrylic Faceplate and Baseplate
Alphanumeric LCD and Headers
Through-hole Parts Bag
Quickstart Assembly Guide
Output cable (BNC + clips)
Features:
Generates continuous waveforms of Sine, Square, Triangle, Ramp (up and down), and Staircase (up and down)
Generates servo test/control signals in micro-second resolution with user programmable pulse width, amplitude, and cycle
Set the frequency (or period), amplitude, and offset with number pad - quick and straight-forward
Frequency (period), amplitude, and offset can be incrementally adjusted with rotary encoder
Settings are memorized after power down
Can be used as an adjustable DC voltage source by setting amplitude to 0
Frequency range: 0 - 200KHz (Sine)
Frequency resolution: 1Hz
Period resolution: 1ms
Amplitude range: 0 - 10V peak-to-peak
Offset range: -5V - +5V
Memory depth: 256 bytes
Sample rate: 2.5Msps
Output impedance: 50 ohm
Current consumption: < 150mA (without loading)
Dimension: 155 X 55 X 30 mm
Net weight: 100 gram
