Product description

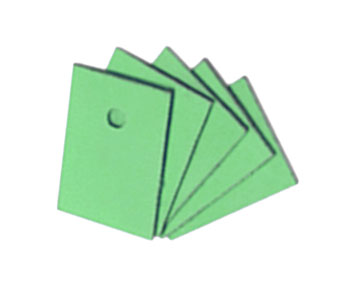

Thermally Conductive TO-220 Pad with High Thermal Conductivity (1.5 W/mK). Thermally conductive foil pad with excellent adhesion, creating an effective thermal interface layer. Reinforced with fiberglass, this pad offer high electrical insulation performance. The perfect choice for applications requiring high performance and reliability.
Key Features:
- Excellent thermal conductivity
- Electrically insulating with high dielectric strength
- Replaces the need for mechanical fasteners
- Easy to apply thanks to double-sided adhesive surface
Specifications:
- Thickness: 0.3 mm
- Dimensions: 13 x 18 mm
- Thermal conductivity: 1.5 W/mK
- Operating temperature range: -60 °C to +200 °C
- Resistivity: 1×10¹¹ Ohm·m
- Density (rubber mass): 2 g/cm³
- Package contains: 1 pc
The double-sided adhesive surface is protected by plastic film that must be removed before application.
