Product description

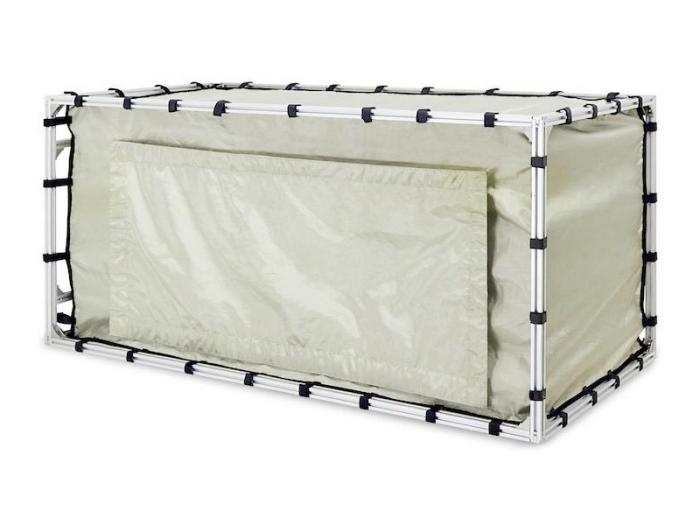

The TBST line of shielded tents is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements with sizes of 200 cm x 100 cm x 100 cm, 124 cm x 64 cm x 60 cm or 86 cm x 48 cm x 48 cm. The 200 cm and 124 cm tent can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells. The 86 cm tent will fit the TBTC0/1/2 and all our LISN.

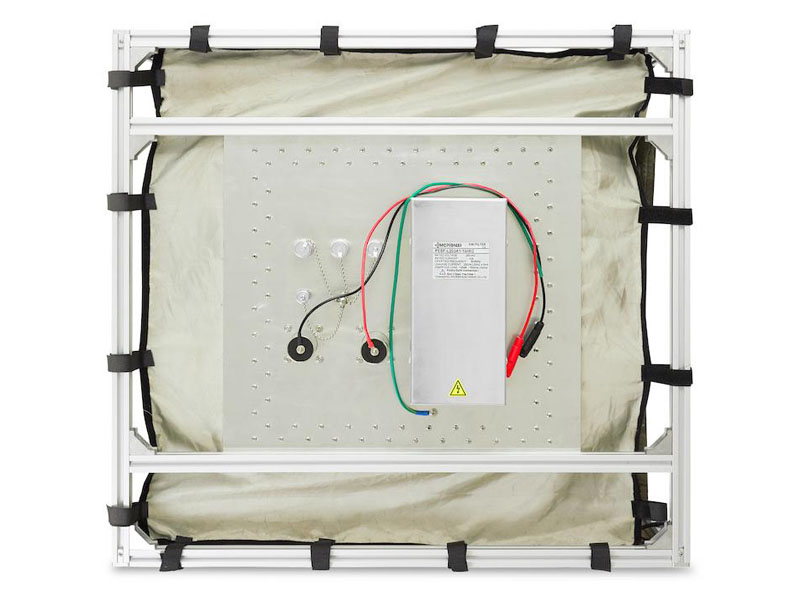

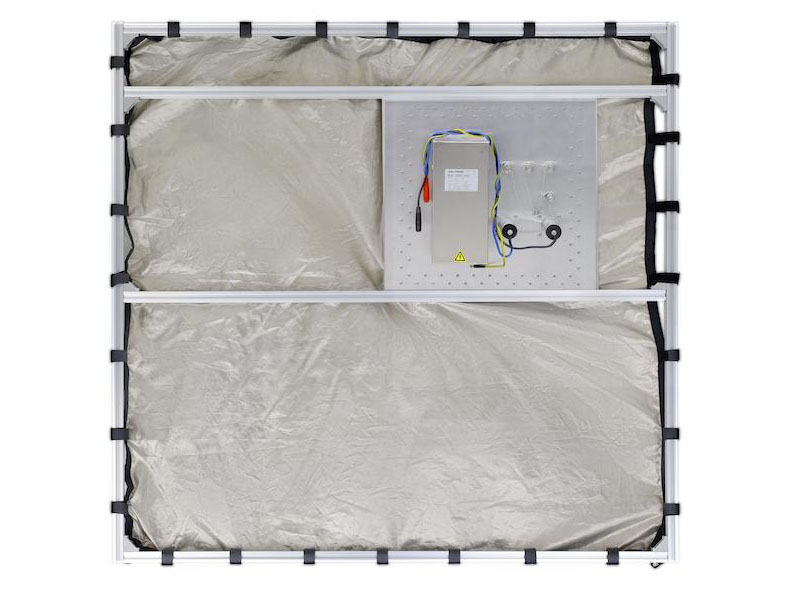

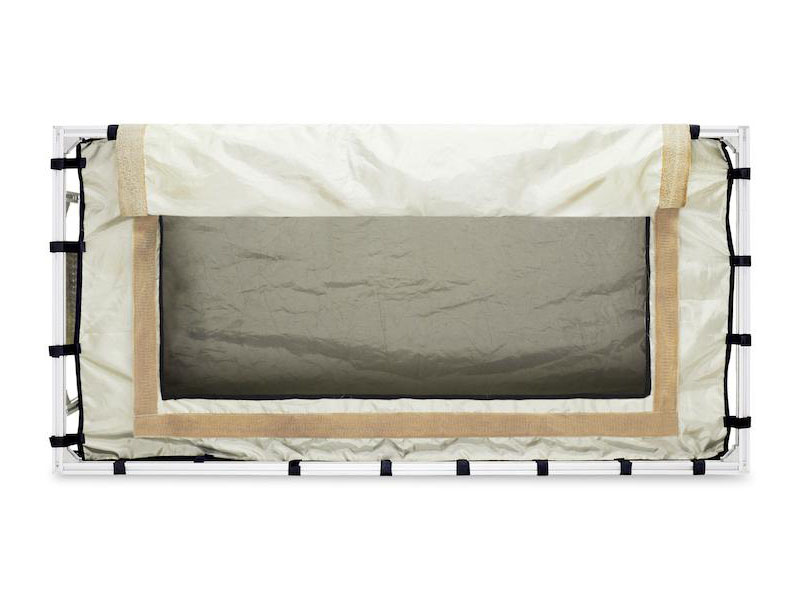

The shielded tents are composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A mains AC filter (optional for the smaller tent), two general purpose 240V/10A AC/DC filters and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive hook-and-loop fastener.
SPECIFICATIONS
- Outer dimensions: 204 cm x 104 cm x 100 cm
- Opening dimensions: 130 cm x 46 cm
- Frame: 20 mm x 20mm extruded aluminium profiles
- Shielding: 2 layers of conductive fabrics
- Suspension: Hook-and-loop fastener
- Filter panel: 1 x 240V/10A AC filter; C19 socket
- 2 x 240V / 10 A AC/DC filters, attached cables with Banana couplers
- 3 x N-Female coaxial feed-through connectors with screw caps
- 1 x BNC-Female coaxial feed-through connector with screw caps
- Internal AC Socket: pigtail cable with detachable female Schuko + country specific AC cables with C13 connector
- Attenuation: ~50 dB in the range 10 MHz to 6 GHz, see chapter 3
- Weight: 17kg + 3kg (packaging)
NOTICE! The tents are packaged with several layers of foam and protective sheets to eliminate any damage during shipping. All tents are inspected and tested before shipping. DO NOT use knife, scissors or any other tools when unpacking.
