Product description

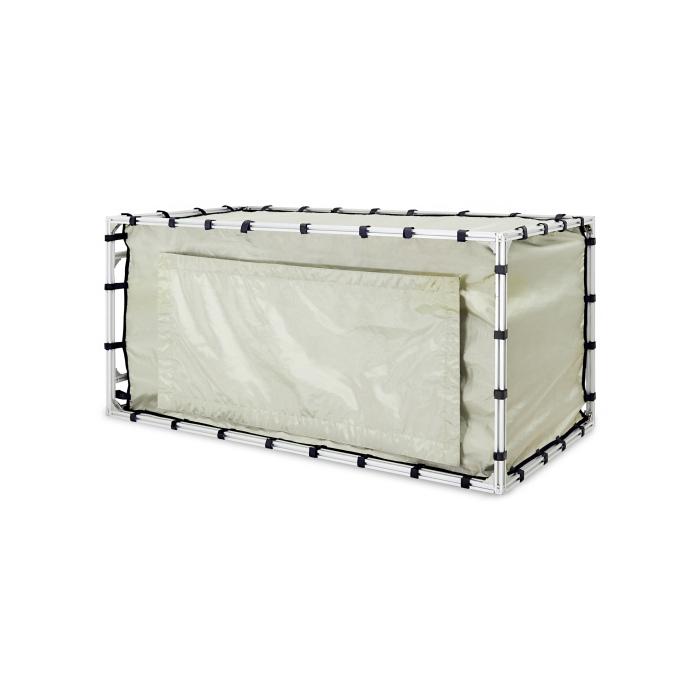

The TBST-86/49/45/2 is a shielded tent, designed to suppress interference from ambient noise during EMC pre-compliance measurements. With a size of 86 cm x 49 cm x 45 cm, it can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells. The shielded tent is composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A AC filter, two 240V/10A DC filter and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive hook-and-loop fastener.
SPECIFICATIONS
- Outer dimensions: 86 cm x 49 cm x 45 cm

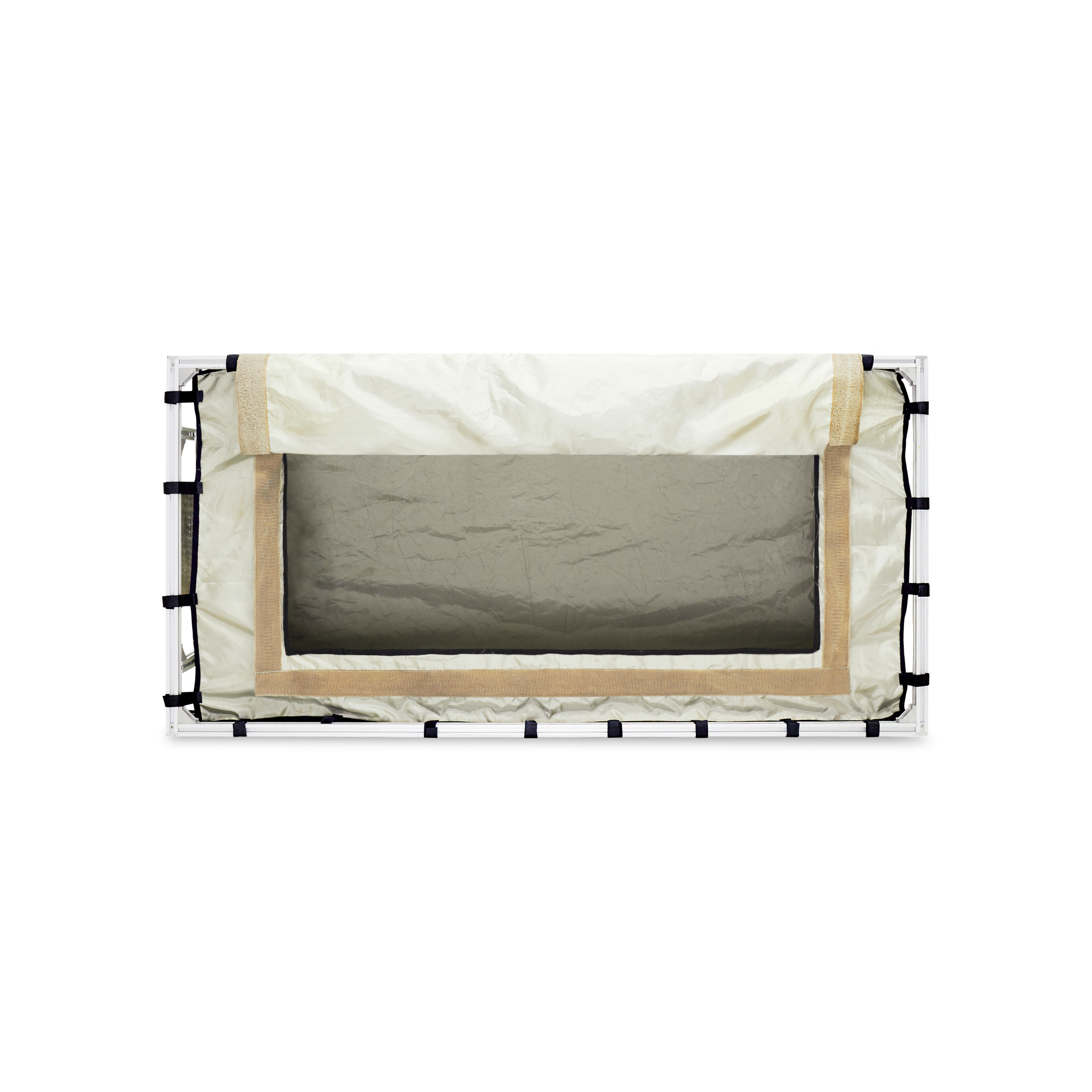

- Opening dimensions: 40 cm x 22 cm
- Frame: 20 mm x 20mm extruded aluminium profiles
- Shielding: 2 layers of conductive fabrics
- Seal: conductive hook-and-loop fastener
- Suspension: Hook-and-loop fastener

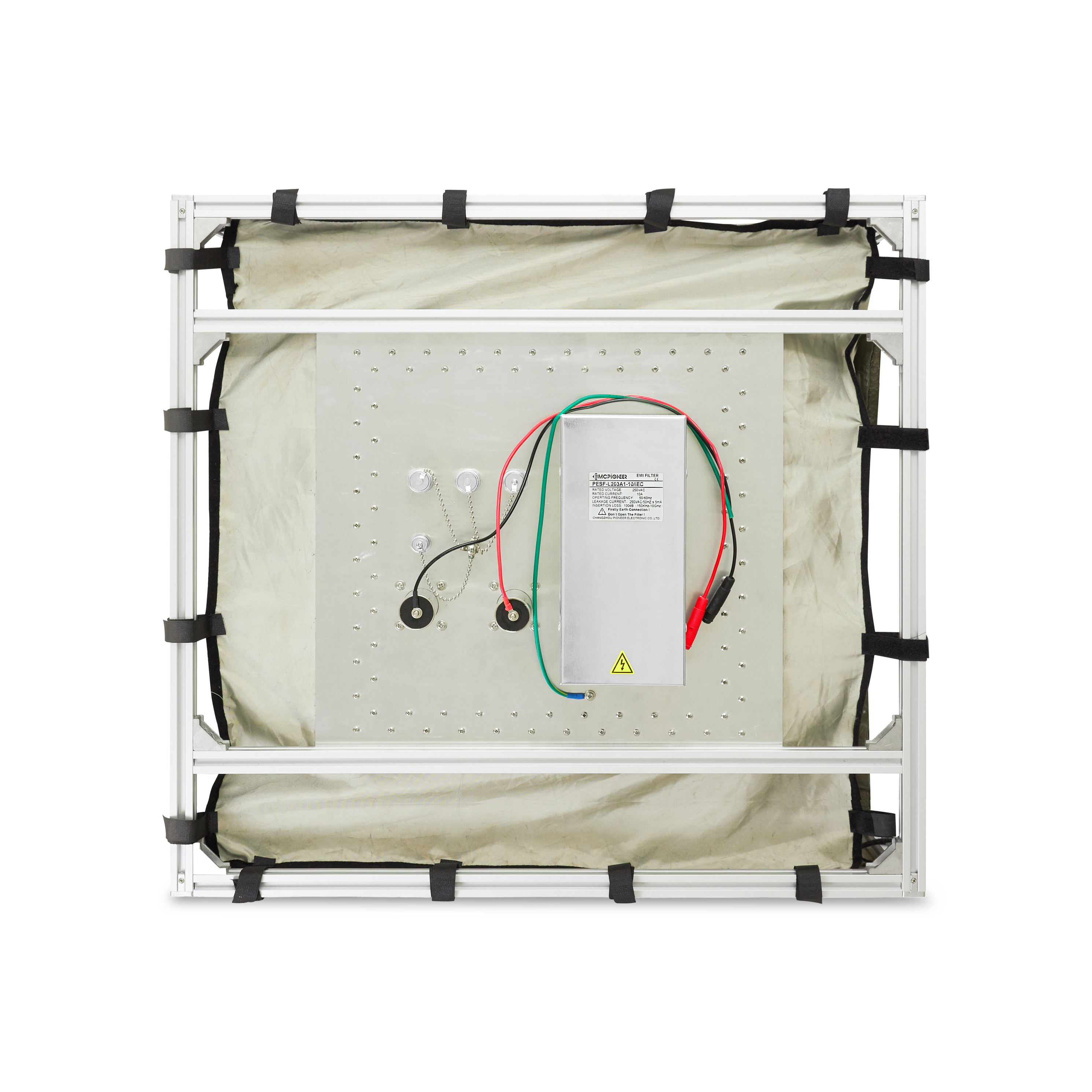

- Filter panel: 1 x 240V/10A AC filter; IEC socket
- 2 x 240V/10A DC filter; cables with female Banana couplers
- 3 x N- female feed through connector with screw caps
- 1 x BNC-female feed through connector
- Attenuation: ~ 50 dB in the range DC to 1.5 GHz
- Weight: 7.5 kg
NOTICE! The tents are packaged with several layers of foam and protective sheets to eliminate any damage during shipping. All tents are inspected and tested before shipping. DO NOT use knife, scissors or any other tools when unpacking.
