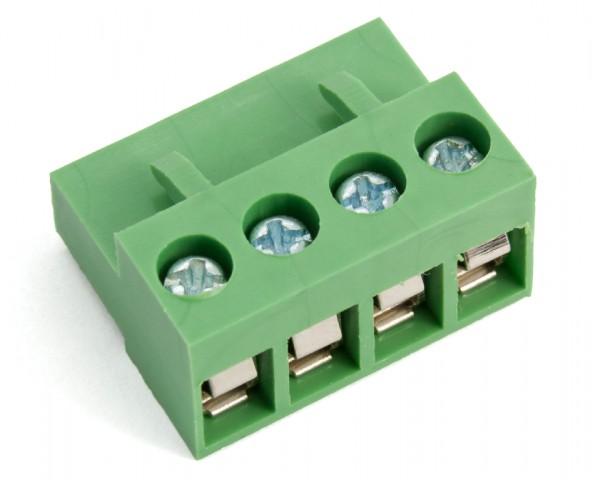

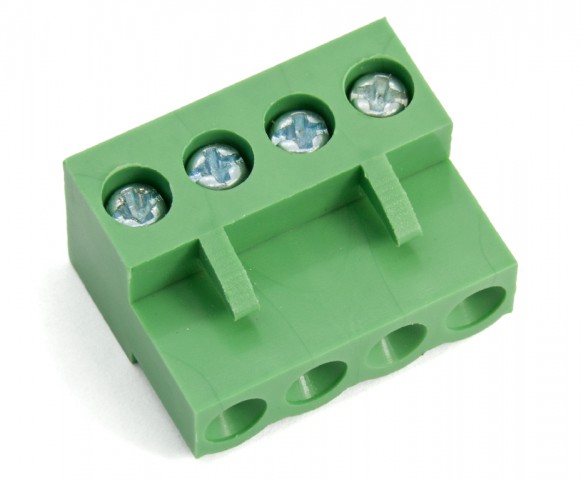

Screw terminal pluggable 5.08mm 4-pole low-profile

Low-profile pluggable screw terminal for connection to PCB headers or pluggable male connectors (low-profile). Easy-to-use, reusable and robust. The connectors are stackable and multiple terminals can be mounted next to eachother (two 2-p female connectors can be placed in one 4-p male connector).

* Pitch: 5.08mm
* Max voltage: 300VAC
* Max current: 10A
* Temperature range: -40°C to +105°C
* Contact resistance: max 20mOhm
* For cable: AWG22 - 12 (0.3 - 3mm²)
