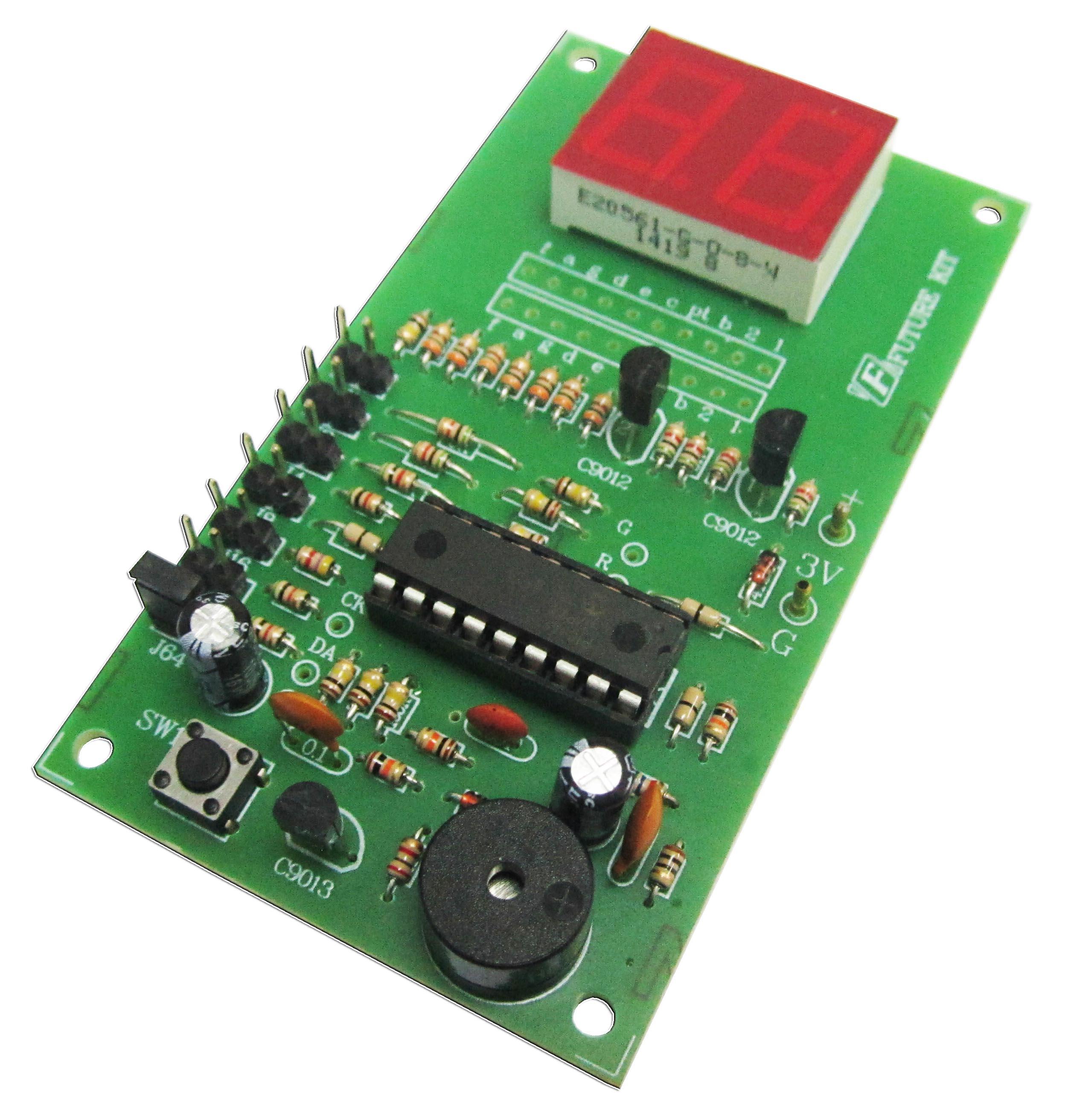

Random number generator

This operation of CODE 190 is the random number circuit. It works similar to the esiimsi. But use the push of a bottom to display numbers and sound. Instead of shaking wood. This circuit is suitable for the esiimsi electronic in the temple.

Technical Specifications

- Power supply : 3VDC.
- Working current consumption : 25mA. max.
- Standby current consumption : 6mA. max. (display on)
- Standby current consumption : 0.01mA. max. (display off)
- Can be select for random the number from 1 to 99.
- PCB dimensions : 1.87 x 3.42 inch.
