Product description

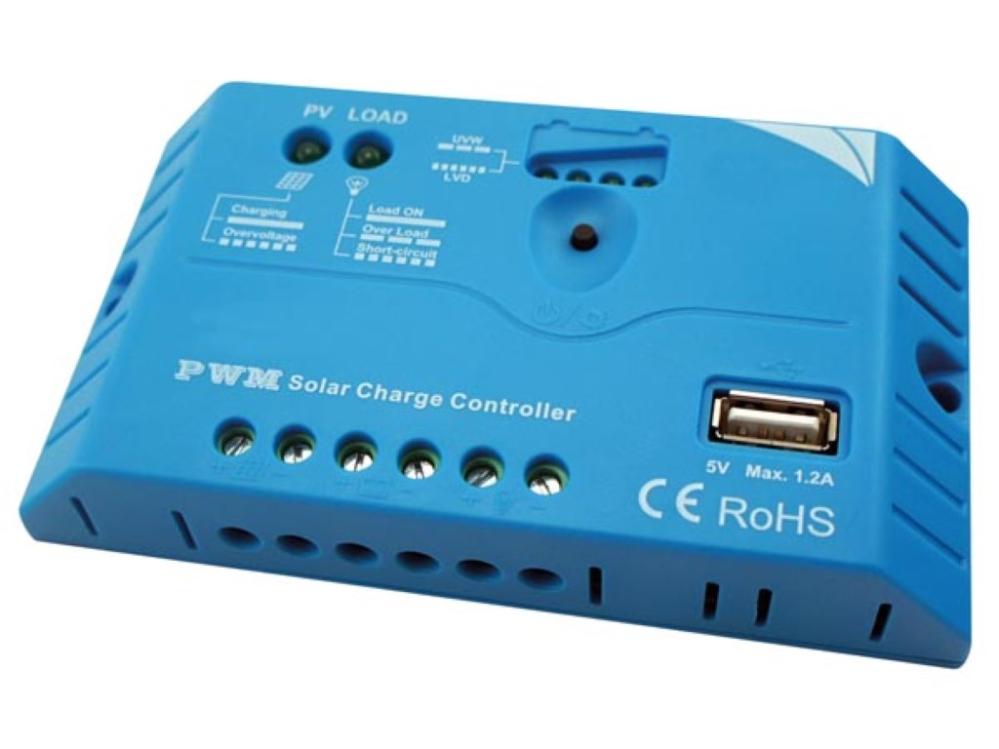

Pulse Width Modulated (PWM) solar controller for charging sealed, gel or open 12/24 Volt lead acid batteries.
Short circuit protected. Warns of under-voltage, over-charging, short circuit and reverse polarisation. LED indication of charge and load status.
Equipped with USB charging socket (1.2 A, type A).
Specifications:
- Output voltage : 12/24 VDC
- Input voltage: Max. 32 VDC
- Max. load: 10 A
- Power consumption: ≤ 6 mA
- Operating temperature: -35 °C to +55 °C
- USB port: 5 VDC, max. 1.2 A, type A
- Enclosure: IP20 (not for outdoor use)
- Connection terminal: 4 mm²
- Dimensions 120.3x67x21.8 mm
- Weight: 102 grams
