Product description

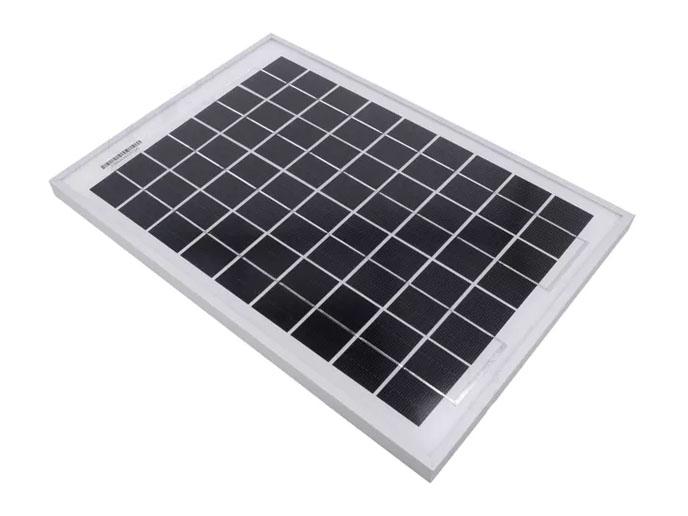

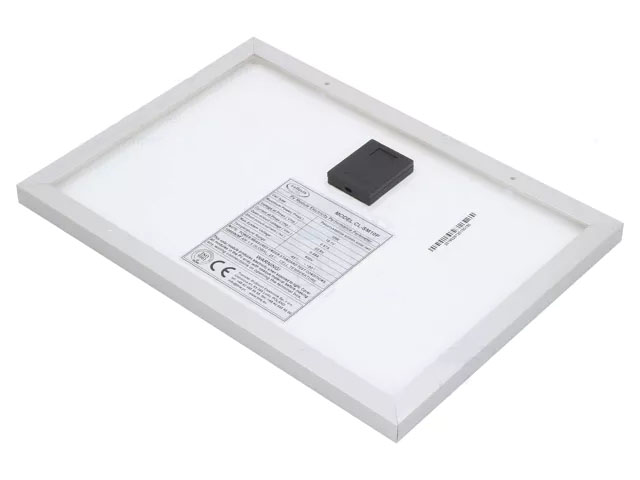

10W polycrystalline solar cell / solar panel. Robust panel with aluminium frame and protective glass. Add (purchase) solar charging regulator or use in development projects. Typical use: cabin, shed, vending machines, experiments, etc.
Specifications:
Power (Pmax): 10W
Voltage at Pmax (Vmp): 18.2V
Current at Pmax (Imp): 0.55 A
Open circuit voltage (Voc): 22.6V
Short circuit current (Isc): 0.59A
NOCT (Normal Operating Cell Temperature): 47°C
Operating temperature range: -40 to 85°C
Serial connect up to max: 600 VDC
Cell type: Polycrystalline
Dimensions: 354x251x17 mm
Weight: 0.99 kg
Connection: Screw terminal
