Product description

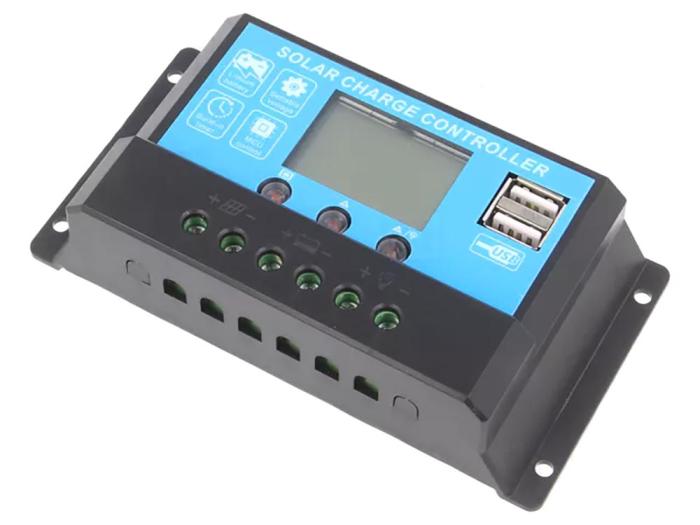

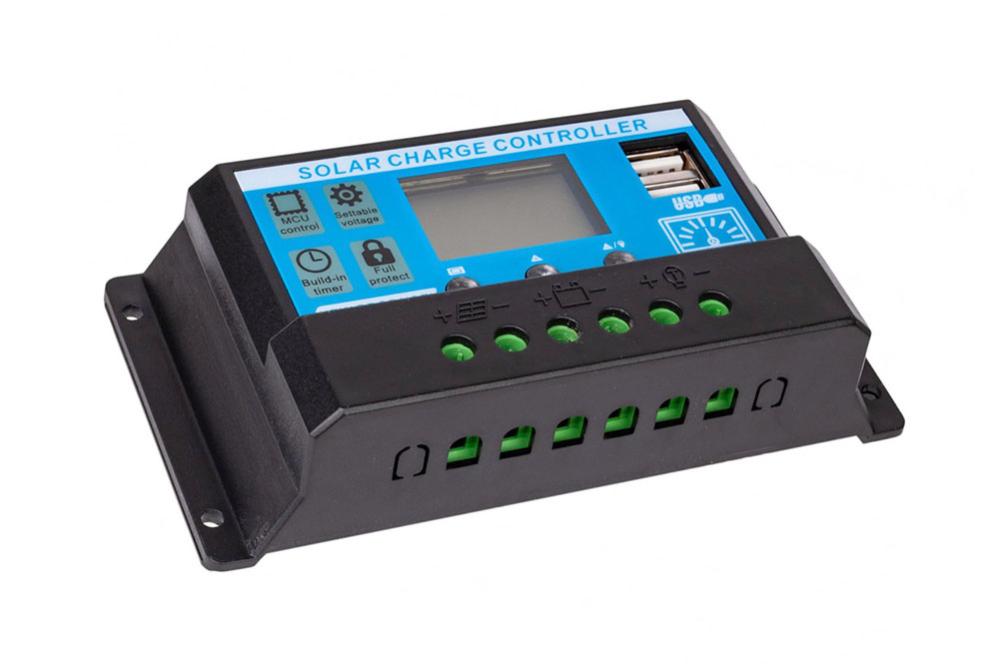

Pulse Width Modulated (PWM) solar controller with display for charging closed, gel or open 12/24 Volt lead acid batteries.
2-button operation. Equipped with 2 USB charging sockets (2 A, type A). Short circuit protected. Warns of undervoltage, overcharge, short circuit and wrong polarisation. LED indication of charging and load status.
Specifications:
- Output voltage: 12/24 VDC
- Input voltage: Max. 50 VDC
- Max. load: 10 A
- Power consumption: 15 mA
- Operating temperature: -20 °C to +55 °C
- USB port: 2 x 5 VDC, max. 2 A, type A
- Connection terminal: 4 mm²
- Dimensions 133x70x34 mm
