Product description

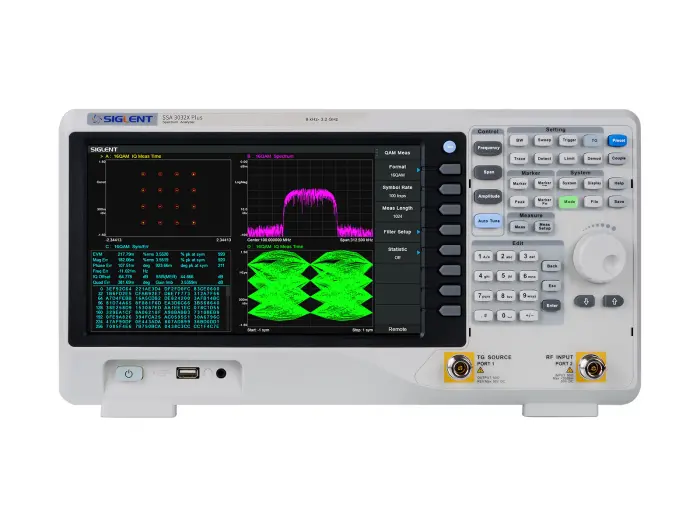

Siglent's SSA3000X series of spectrum analyzers have a frequency range of 9 KHz to 1.5GHz With their light weight, small size, and friendly user interface, the SSA3000s offer a bright easy to read display, powerful and reliable automatic measurements, and plenty of powerful features. Applications are many, but include research and development, education, production, maintenance, and many more.
All-Digital IF Technology
Frequency Range from 9 kHz up to 1.5 GHz
-161 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
Total Amplitude Accuracy < 0.7 dB
10 Hz Minimum Resolution Bandwidth (RBW)
Standard Preamplifier
Up to 3.2 GHz Tracking Generator Kit Reflection Measurement Kit (Opt.)
Advanced Measurement Kit (Opt.)
EMI Pre-compliance Measurements Kit (Opt.)
10.1 lnch WVGA?i1024x600?jDisplay
Contents:
1 x USB Cable 1 x Quick Start
1 x Calibration Certificate and Product Certification
1 x Power Cord 220V EU
All-Digital IF Technology
Frequency Range from 9 kHz up to 1.5 GHz
-161 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
Total Amplitude Accuracy < 0.7 dB
10 Hz Minimum Resolution Bandwidth (RBW)
Standard Preamplifier
Up to 3.2 GHz Tracking Generator Kit Reflection Measurement Kit (Opt.)
Advanced Measurement Kit (Opt.)
EMI Pre-compliance Measurements Kit (Opt.)
10.1 lnch WVGA?i1024x600?jDisplay
Contents:
1 x USB Cable 1 x Quick Start
1 x Calibration Certificate and Product Certification
1 x Power Cord 220V EU
