Product description

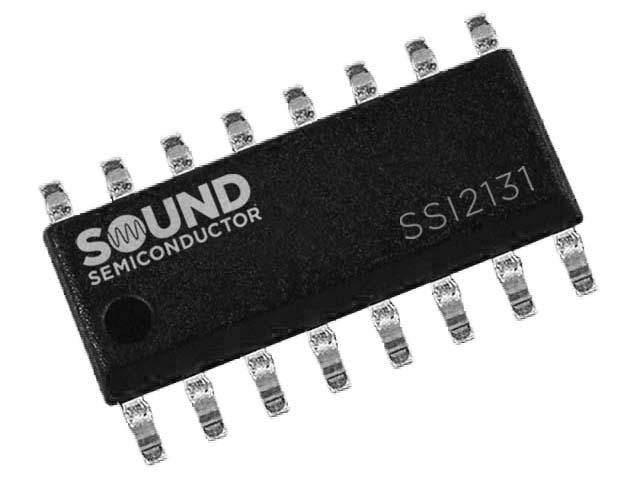

The SSI2131 is a new-generation voltage controlled oscillator for high-performance electronic musical instruments and other systems requiring accurate audio-band waveform generation.
The device offers unprecedented levels of temperature stability, exponentiality, waveform integrity, and ease of use. Buffered voltage outputs include triangle, sawtooth, and pulse with PWM control. A precision analog multiplier provides temperature stability, and careful attention was paid to improvement of triangle and sawtooth waveform accuracy compared to previous generation VCO IC's. Optional trims are possible for exponential scale and high frequency tracking which can be automated by CPU-calibrated systems. The SSI2131 requires an absolute minimum of external components and is available in an easy-to-use 16-lead SOP package. For equivalent VCO performance with more features, please see the SSI2130 which adds an integrated five channel mixer, open-collector square output, sine wave generator, and through-zero FM/PM capability.
